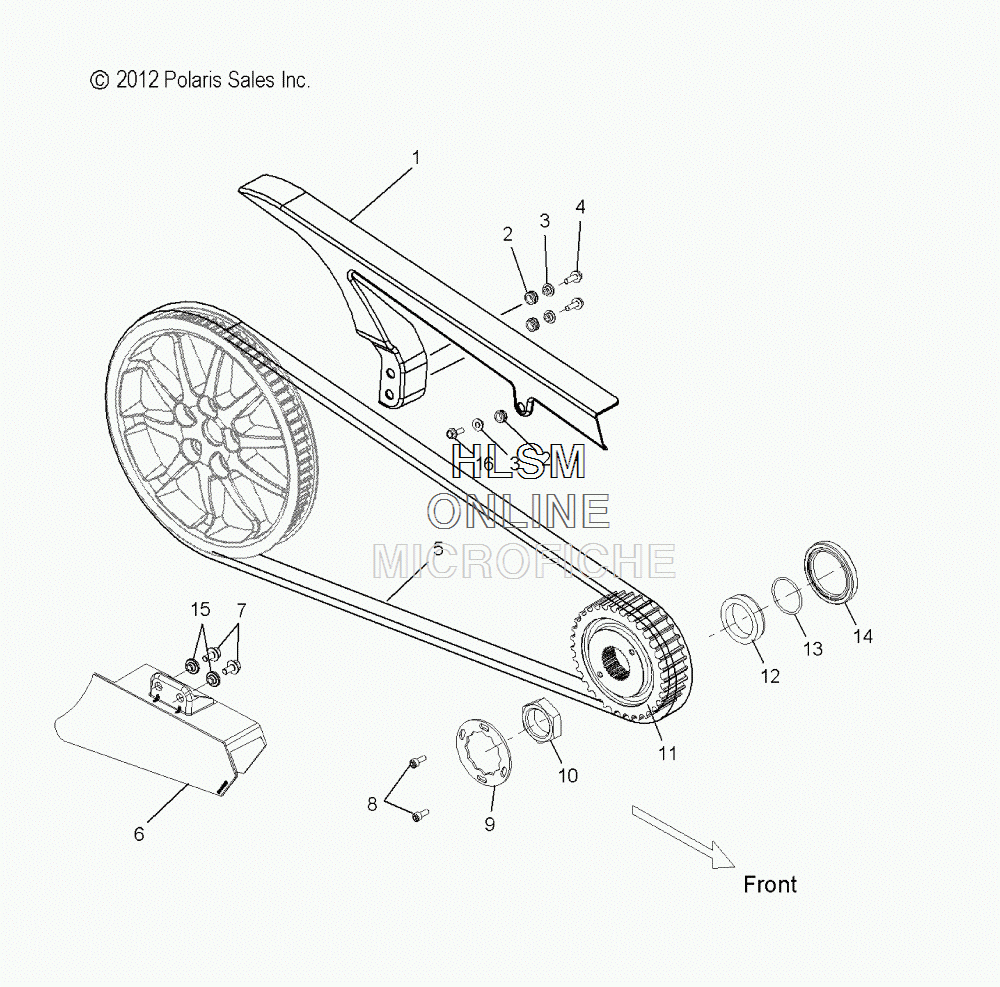

DRIVE SPROCKET AND BELT AND GUARDS для Polaris HIGH-BALL [V14WB36] - 2014 года выпуска`
-
№АртикулНазвание
-
15247719-521 GUARD, BELT, UPPER, BLACK ENGINE WRINKLEGUARD, BELT, UPPER, BLACK ENGINE WRINKLE
-
25412265 GROMMETGROMMET
-
35134082 SLEEVESLEEVE
-
47517770 SCREWSCREW
-
53211102 BELT, DRIVEBELT, DRIVE
-
65438684 GUARD, BELTGUARD, BELT
-
77518591 SCREWSCREW
-
87517272 SCREWSCREW
-
95244114 WASHER, LOCKWASHER, LOCK
-
107547311 NUT, HEX, THINNUT, HEX, THIN
-
113234580 SPROCKET, DRIVE, 33TSPROCKET, DRIVE, 33T
-
125137737 SPACER, DRIVE SPROCKETSPACER, DRIVE SPROCKET
-
135413767 O-RINGO-RING
-
143610118 SEAL, LIPSEAL, LIP
-
155134083 SLEEVESLEEVE
-
167518141 SCREWSCREW
