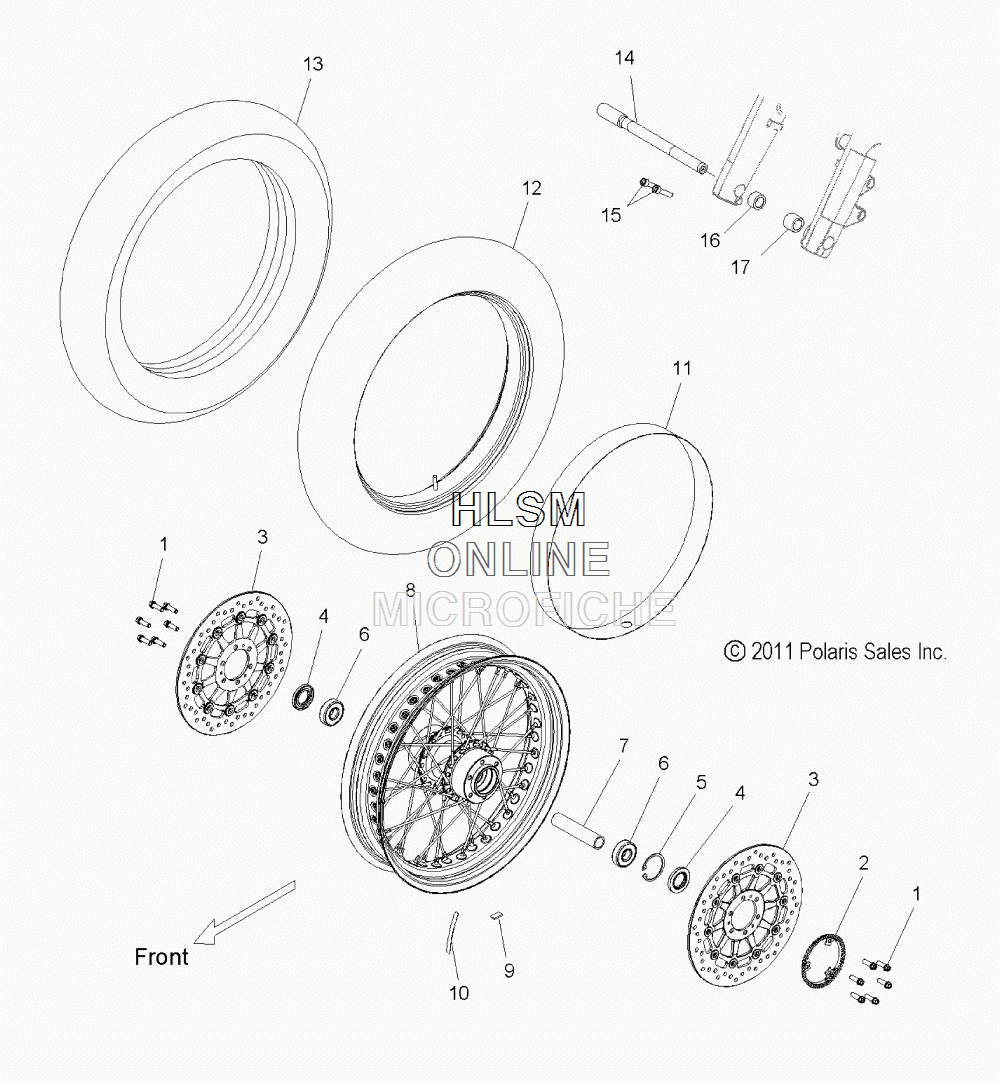

WHEELS - FRONT - LACED для Polaris CROSS ROADS CLASSIC [V14BW36] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7518661 SCREW, ROTOR BOLT
    SCREW, ROTOR BOLT
  • 2
    5632541 RING, TONE, ABS
    RING, TONE, ABS
  • 3
    1911624-266 ROTOR, BRAKE, BLACK
    ROTOR, BRAKE, BLACK
  • 4
    3610094 SEAL
    SEAL
  • 5
    7710526 RING, RETAINING
    RING, RETAINING
  • 6
    3514405 BEARING, BALL
    BEARING, BALL
  • 7
    5335681 SPACER, BEARING, FRONT WHEEL, MID
    SPACER, BEARING, FRONT WHEEL, MID
  • 8
    1521874-156 ASM., WHEEL, FR, LACED, CHROME (INCL. 4-6)
    ASM., WHEEL, FR, LACED, CHROME (INCL. 4-6)
  • 8
    2204926 KIT, SPOKE AND NIPPLE, 18-60, SS, DWW
    KIT, SPOKE AND NIPPLE, 18-60, SS, DWW
  • 9
    1521681 WEIGHT, BALANCE, SILVER
    WEIGHT, BALANCE, SILVER
  • 10
    7079024 DECAL, RIM, LACED, BILINGUAL
    DECAL, RIM, LACED, BILINGUAL
  • 11
    5813755 STRAP, RIM, 18 INCH
    STRAP, RIM, 18 INCH
  • 12
    1824076 TUBE, TIRE, INNER, 18 INCH
    TUBE, TIRE, INNER, 18 INCH
  • 13
    5412372 TIRE, FRONT, 3.0 X 18
    TIRE, FRONT, 3.0 X 18
  • 14
    5138509 AXLE, FRONT
    AXLE, FRONT
  • 15
    7517361 SCREW
    SCREW
  • 15
    7519105 BOLT, PINCH
    BOLT, PINCH
  • 16
    5631479 SPACER, BEARING, LEFT HAND
    SPACER, BEARING, LEFT HAND
  • 17
    5631481 SPACER, BEARING, LEFT
    SPACER, BEARING, LEFT
