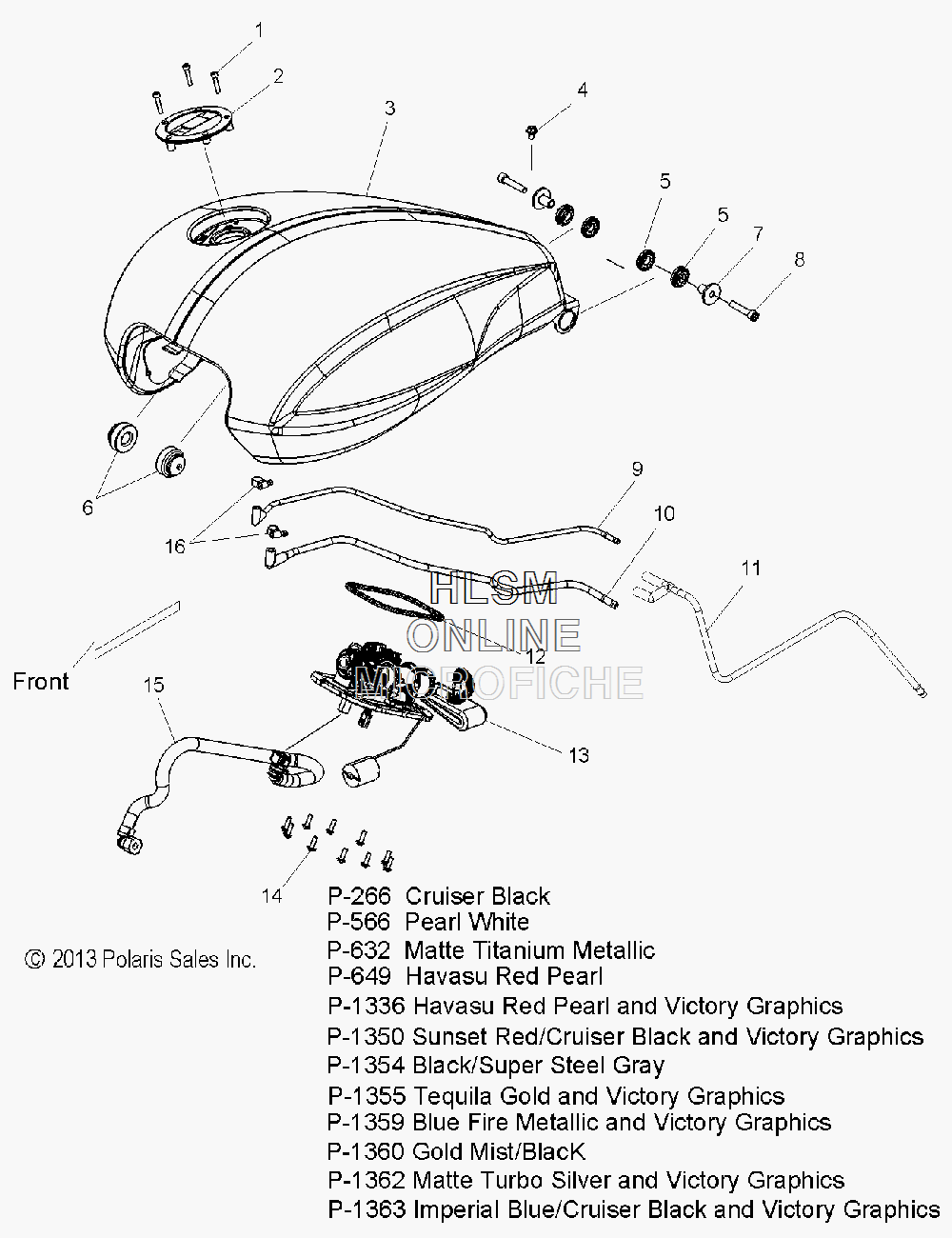

FUEL TANK для Polaris CROSS COUNTRY [V14DW36] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7518086 SCREW
    SCREW
  • 2
    4012943-266 ASM., IGNITION, FUEL CAP, TRUNK, SBLACKS, (BLACK)
    ASM., IGNITION, FUEL CAP, TRUNK, SBLACKS, (BLACK)
  • 2
    4012944-266 ASM., IGNITION, FUEL CAP, TRUNK, SBLACKS, (BLACK) (INTL)
    ASM., IGNITION, FUEL CAP, TRUNK, SBLACKS, (BLACK) (INTL)
  • 3
    1016149-266 TANK, FUEL, (BLACK)
    TANK, FUEL, (BLACK)
  • 3
    1016149-566 TANK, FUEL, (PEARL WHITE)
    TANK, FUEL, (PEARL WHITE)
  • 3
    1016149-632 TANK, FUEL, (MATTE TITANIUM METALLIC)
    TANK, FUEL, (MATTE TITANIUM METALLIC)
  • 3
    1016149-649 TANK, FUEL, (HAVASU RED PEARL)
    TANK, FUEL, (HAVASU RED PEARL)
  • 3
    1016149-1336 TANK, FUEL, (HAVASU RED PEARL/VICTORY GFX)
    TANK, FUEL, (HAVASU RED PEARL/VICTORY GFX)
  • 3
    1016149-1354 TANK, FUEL, (BLACK/SUPER STEEL GRAY)
    TANK, FUEL, (BLACK/SUPER STEEL GRAY)
  • 3
    1016149-1355 TANK, FUEL, (TEQUILA GOLD/VICTORY GFX)
    TANK, FUEL, (TEQUILA GOLD/VICTORY GFX)
  • 3
    1016149-1359 TANK, FUEL, (BLUE FIRE METALLIC/VICTORY GFX)
    TANK, FUEL, (BLUE FIRE METALLIC/VICTORY GFX)
  • 3
    1016149-1362 TANK, FUEL, (MATTE TURBO SILVER/VICTORY GFX)
    TANK, FUEL, (MATTE TURBO SILVER/VICTORY GFX)
  • 3
    1016149-1363 TANK, FUEL, (IMPERIAL BLUE/CRUISER BLACK/VICTORY GFX)
    TANK, FUEL, (IMPERIAL BLUE/CRUISER BLACK/VICTORY GFX)
  • 4
    7518393 SCREW
    SCREW
  • 5
    5413491 ISOLATOR, TANK, REAR
    ISOLATOR, TANK, REAR
  • 6
    5413479 ISOLATOR, TANK, FRONT
    ISOLATOR, TANK, FRONT
  • 7
    5136409 BUSHING, FLANGE
    BUSHING, FLANGE
  • 8
    7518178 SCREW
    SCREW
  • 9
    5437603 LINE, FUEL VENT
    LINE, FUEL VENT
  • 10
    5437602 LINE, WATER DRAIN
    LINE, WATER DRAIN
  • 11
    5437604 LINE, WTR/VENT TO GND
    LINE, WTR/VENT TO GND
  • 12
    5413346 SEAL, FUEL
    SEAL, FUEL
  • 13
    2521171 ASM., FUEL PUMP, SENDER
    ASM., FUEL PUMP, SENDER
  • 13
    2521021 ASM., FILTER, FUEL
    ASM., FILTER, FUEL
  • 13
    2521022 ASM., SENDER, FUEL LEVEL
    ASM., SENDER, FUEL LEVEL
  • 14
    7518923 SCREW
    SCREW
  • 15
    5414151 LINE, FUEL (FOR FUEL PUMP 2521171)
    LINE, FUEL (FOR FUEL PUMP 2521171)
  • 16
    7081151 CLAMP, HOSE
    CLAMP, HOSE
