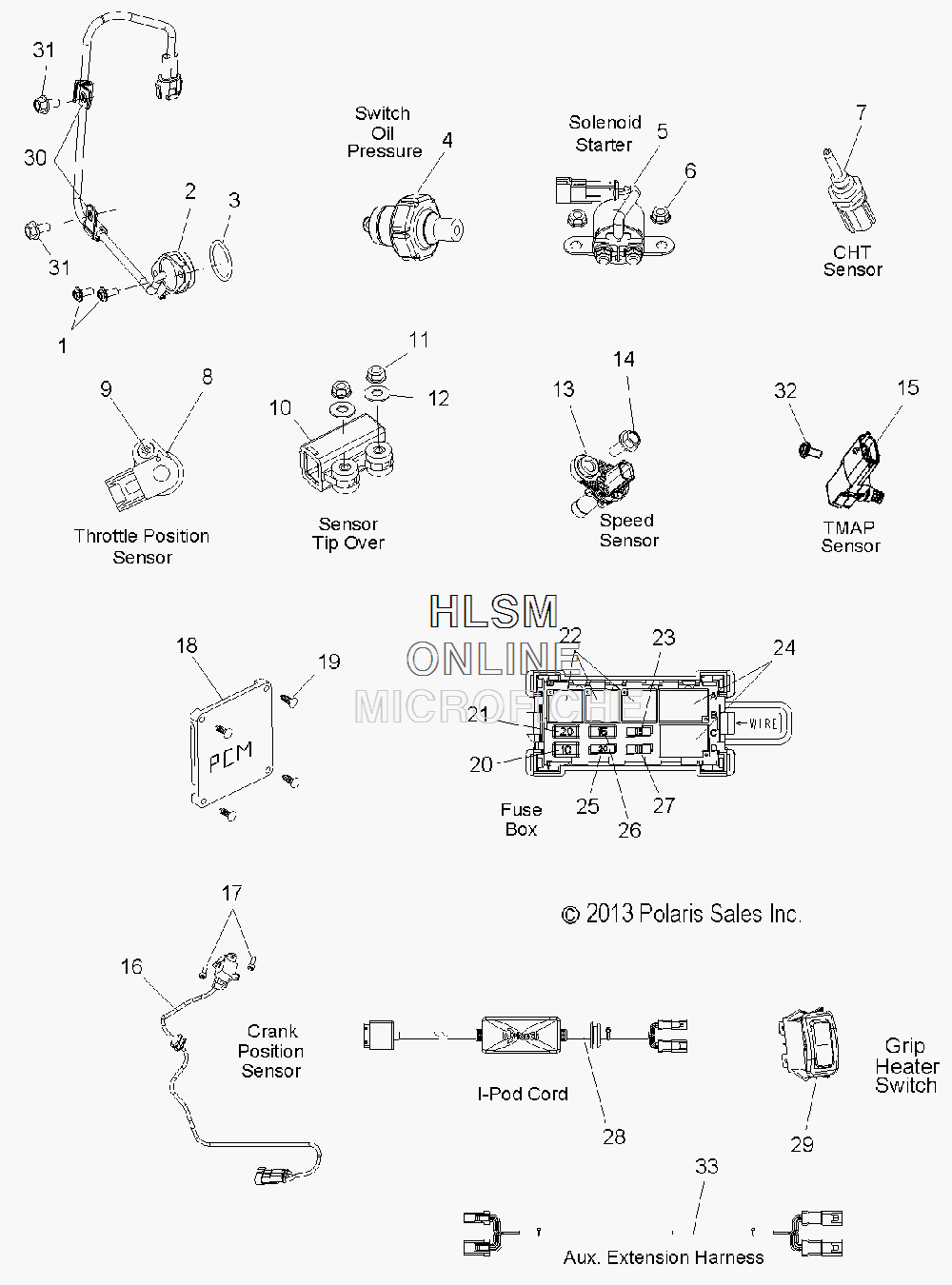

SWITCHES- SENSORS AND COMPONENTS 1 для Polaris CROSS COUNTRY NESS [V14ZW36] - 2014 года выпуска
-
№АртикулНазвание
-
17518338 SCREWSCREW
-
24010976 SWITCH, GEAR INDICATORSWITCH, GEAR INDICATOR
-
35412530 O-RINGO-RING
-
44012668 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
54014471 SOLENOID, STARTERSOLENOID, STARTER
-
67710495 NUTNUT
-
74012971 SENSOR, CYLINDER HEAD TEMPSENSOR, CYLINDER HEAD TEMP
-
84012101 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
97518901 SCREWSCREW
-
104011296 SENSOR, TIP OVERSENSOR, TIP OVER
-
117547126 NUTNUT
-
127556477 WASHER, FLATWASHER, FLAT
-
134011884 SENSOR, VEHICLE SPEEDSENSOR, VEHICLE SPEED
-
147517750 SCREWSCREW
-
152410422 SENSOR, T-MAPSENSOR, T-MAP
-
164012280 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
177518045 SCREWSCREW
-
184013160 PCM, SERVICEPCM, SERVICE
-
197670141 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
204011371 BREAKER, CIRCUIT, 10 AMP.BREAKER, CIRCUIT, 10 AMP.
-
214011372 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
224011283 RELAY, SERIES 303RELAY, SERIES 303
-
232410280 FUSE, 15 AMP.FUSE, 15 AMP.
-
244011284 RELAY, SERIES 301RELAY, SERIES 301
-
252434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
264011406 BREAKER, CIRCUIT, 15 AMP.BREAKER, CIRCUIT, 15 AMP.
-
272434016 FUSE, 10 AMP.FUSE, 10 AMP.
-
282411287 CORD, I-PODCORD, I-POD
-
294011319 SWITCH, HANDWARMER, SPDTSWITCH, HANDWARMER, SPDT
-
307080983 CLAMPCLAMP
-
317517278 SCREWSCREW
-
327518923 SCREWSCREW
-
332411176 HARNESS, AUX. EXTENSIONHARNESS, AUX. EXTENSION
-
344011828 RELAY, DPST, SEALEDRELAY, DPST, SEALED
