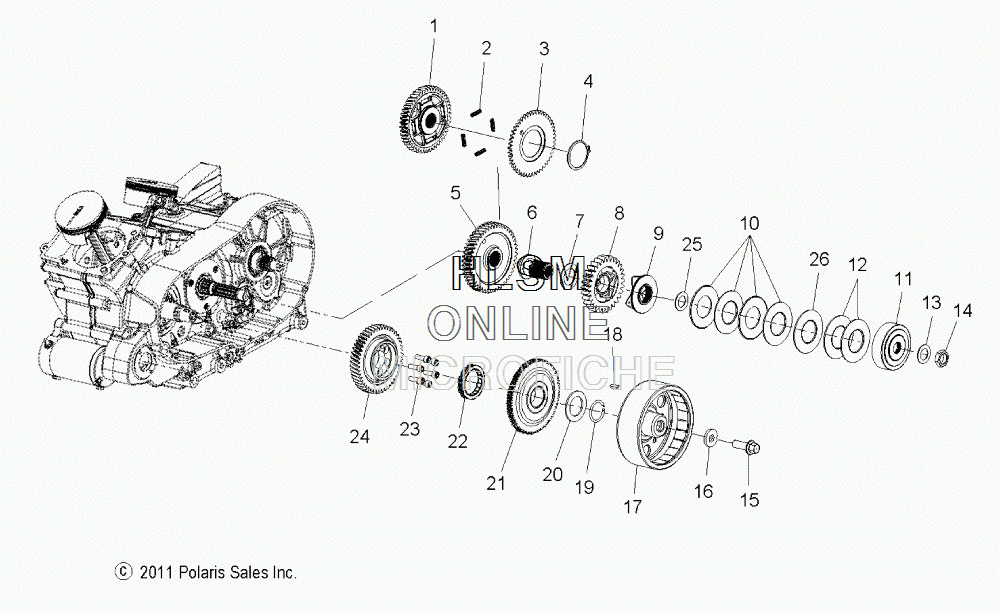

PRIMARY DRIVE для Polaris VISION TOUR - 2013 года выпуска`
-
№АртикулНазвание
-
16230440 GEAR, BALANCE SHAFT, DRIVENGEAR, BALANCE SHAFT, DRIVEN
-
27042096 SPRING, SPLIT GEARSPRING, SPLIT GEAR
-
36230470 GEAR, SPLIT, BALANCE SHAFT, DRIVENGEAR, SPLIT, BALANCE SHAFT, DRIVEN
-
47710529 RING, RETAININGRING, RETAINING
-
51332830 ASM., SPLIT GEAR (INCL. 1-4)ASM., SPLIT GEAR (INCL. 1-4)
-
65137204 SHAFT, COMPENSATORSHAFT, COMPENSATOR
-
77556539 WASHERWASHER
-
86230469 GEAR, COMPENSATOR, DRIVEGEAR, COMPENSATOR, DRIVE
-
95135550 SLIDER, COMPENSATORSLIDER, COMPENSATOR
-
107043639 SPRING, BELLEVILLE, 2.54MMSPRING, BELLEVILLE, 2.54MM
-
115137955 RETAINER, COMPENSATORRETAINER, COMPENSATOR
-
127043638 SPRING, BELLVILLE, .9MMSPRING, BELLVILLE, .9MM
-
137556519 DISC, SPRINGDISC, SPRING
-
147547477 NUTNUT
-
157518008 BOLT, OIL JETBOLT, OIL JET
-
167555987 WASHER, FLATWASHER, FLAT
-
174012716 ROTOR, CHARGINGROTOR, CHARGING
-
187721122 KEY, WOODRUFFKEY, WOODRUFF
-
197710490 RING, RETAINING, 35 DEGREERING, RETAINING, 35 DEGREE
-
207556237 WASHER, FLATWASHER, FLAT
-
211015167 ASM., CRANKSHAFT GEAR STARTER DRIVEASM., CRANKSHAFT GEAR STARTER DRIVE
-
224060156 CLUTCH, STARTER DRIVECLUTCH, STARTER DRIVE
-
237517260 SCREWSCREW
-
246230471 GEAR, CRANKSHAFT, PRIMARY, HCLGEAR, CRANKSHAFT, PRIMARY, HCL
-
255137949 SPACER, COMPENSATORSPACER, COMPENSATOR
-
267556577 WASHERWASHER
