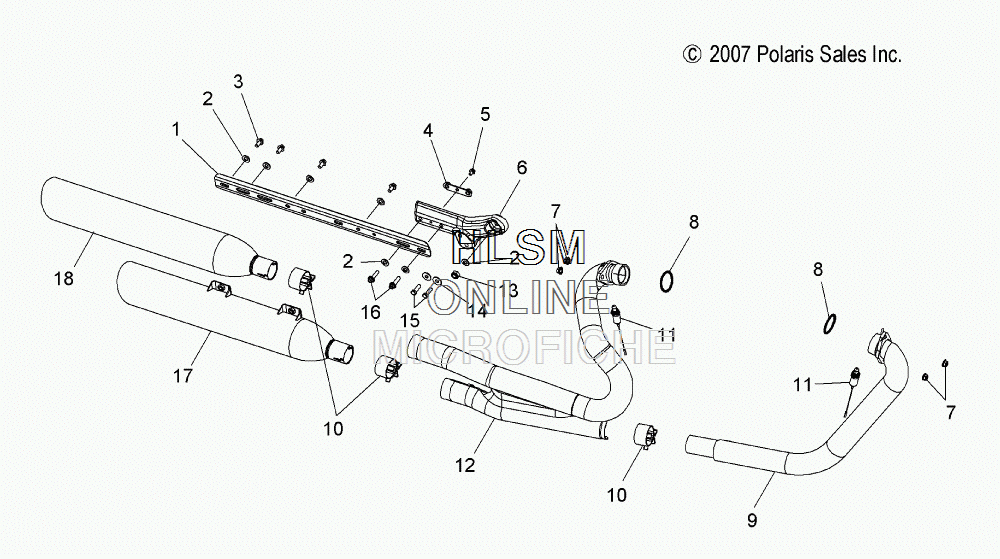

EXHAUST для Polaris VICTORY JUDGE - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5250030-408 BRACKET, MUFFLER TO MUFFLER, ZNB
    BRACKET, MUFFLER TO MUFFLER, ZNB
  • 2
    7556234 WASHER, FLAT
    WASHER, FLAT
  • 3
    7519005 SCREW
    SCREW
  • 4
    1015173 PLATE, NUT, ZINC
    PLATE, NUT, ZINC
  • 5
    7518393 SCREW
    SCREW
  • 6
    5135691-468 SUPPORT, EXHAUST, BLACK AND Z
    SUPPORT, EXHAUST, BLACK AND Z
  • 7
    7547014 NUT
    NUT
  • 8
    5246008 GASKET
    GASKET
  • 9
    1262104-266 ASM., EXHAUST HEADPIPE, FRONT, BLACK
    ASM., EXHAUST HEADPIPE, FRONT, BLACK
  • 9
    1261414-266 SHIELD, FRONT, BLACK
    SHIELD, FRONT, BLACK
  • 9
    7080774 CLAMP, HEAT SHIELD
    CLAMP, HEAT SHIELD
  • 10
    7081179 CLAMP
    CLAMP
  • 11
    4010430 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 12
    1262012-266 ASM., EXHAUST HEAD PIPE, REAR, BLACK
    ASM., EXHAUST HEAD PIPE, REAR, BLACK
  • 12
    1261394-266 SHIELD, MID REAR, BLACK
    SHIELD, MID REAR, BLACK
  • 12
    1261416-266 SHIELD, REAR, CYLINDER, UPPER, BLACK
    SHIELD, REAR, CYLINDER, UPPER, BLACK
  • 12
    1261417-266 SHIELD REAR, CYLINDER, LOWER, BLACK
    SHIELD REAR, CYLINDER, LOWER, BLACK
  • 12
    1261418-266 SHIELD, COLLECTOR, BLACK
    SHIELD, COLLECTOR, BLACK
  • 12
    7080774 CLAMP, HEAT SHIELD
    CLAMP, HEAT SHIELD
  • 13
    7547268 NUT, NYLOK
    NUT, NYLOK
  • 14
    7556352 WASHER, FLAT
    WASHER, FLAT
  • 15
    7518443 SCREW
    SCREW
  • 16
    7518800 SCREW
    SCREW
  • 17
    1262242-266 MUFFLER, FRONT, BLACK (NORTH AMERICA)
    MUFFLER, FRONT, BLACK (NORTH AMERICA)
  • 17
    1262268-266 ASM., MUFFLER, FRONT, BLACK (INTERNATIONAL)
    ASM., MUFFLER, FRONT, BLACK (INTERNATIONAL)
  • 18
    1262241-266 MUFFLER, REAR, BLACK (NORTH AMERICA)
    MUFFLER, REAR, BLACK (NORTH AMERICA)
  • 18
    1262269-266 ASM., MUFFLER, REAR, BLACK (INTERNATIONAL)
    ASM., MUFFLER, REAR, BLACK (INTERNATIONAL)
