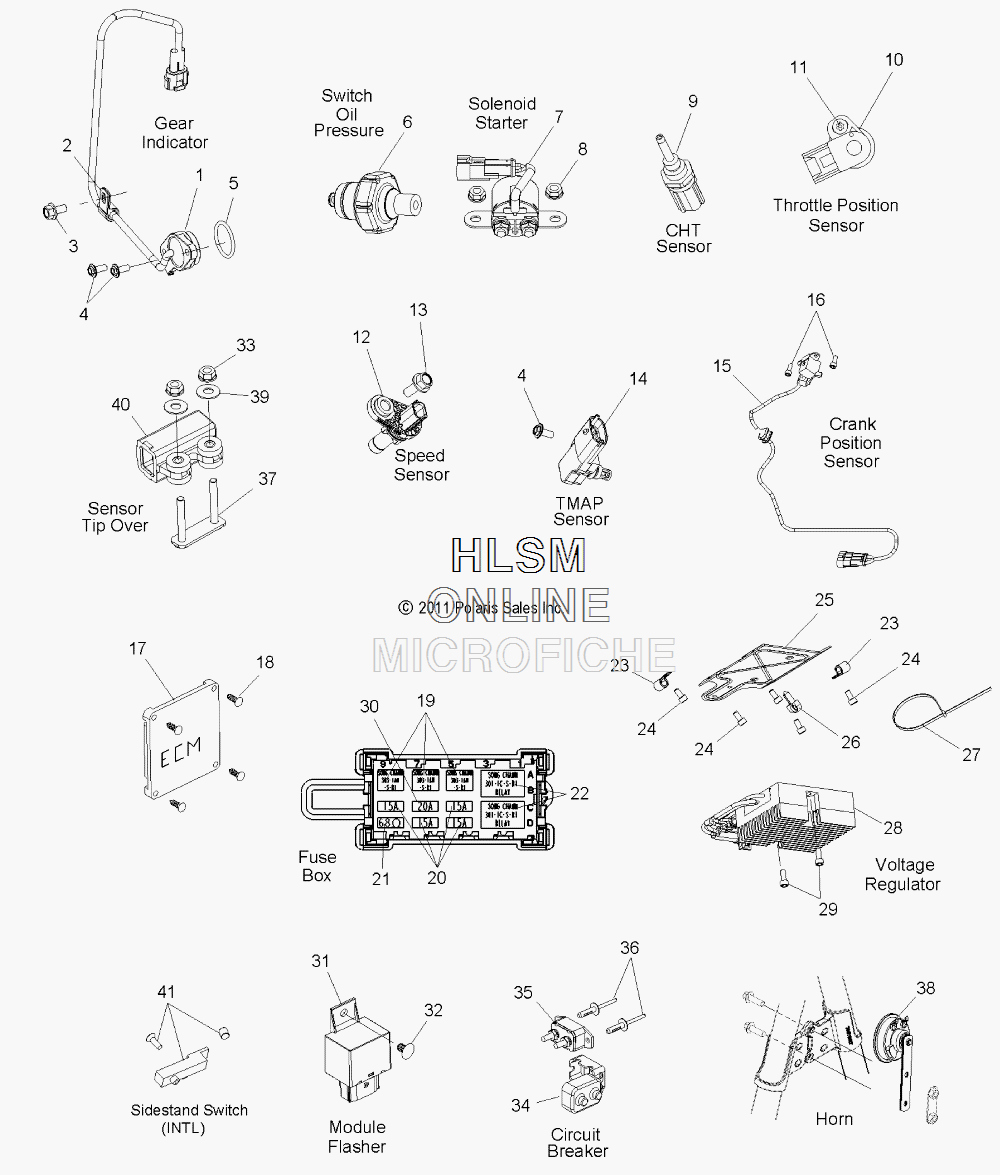

SWITCHES AND SENSORS AND COMPONENTS для Polaris HIGH-BALL - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    4010976 SWITCH, GEAR INDICATOR
    SWITCH, GEAR INDICATOR
  • 2
    7080983 CLAMP
    CLAMP
  • 3
    7517257 SCREW
    SCREW
  • 4
    7518338 SCREW
    SCREW
  • 5
    5412530 O-RING
    O-RING
  • 6
    4012668 SWITCH, OIL PRESSURE
    SWITCH, OIL PRESSURE
  • 7
    4012001 SOLENOID, STARTER
    SOLENOID, STARTER
  • 8
    7710495 NUT
    NUT
  • 9
    4012971 SENSOR, CYLINDER HEAD TEMP
    SENSOR, CYLINDER HEAD TEMP
  • 10
    4012101 SENSOR, THROTTLE POSITION
    SENSOR, THROTTLE POSITION
  • 11
    7518901 SCREW
    SCREW
  • 12
    4011884 SENSOR, VEHICLE SPEED
    SENSOR, VEHICLE SPEED
  • 13
    7517750 SCREW
    SCREW
  • 14
    2410422 SENSOR, T-MAP
    SENSOR, T-MAP
  • 15
    4012280 SENSOR, CRANK POSITION
    SENSOR, CRANK POSITION
  • 16
    7518045 SCREW
    SCREW
  • 17
    4013160 PCM, SERVICE
    PCM, SERVICE
  • 18
    7670141 CLIP, PLASTIC DART
    CLIP, PLASTIC DART
  • 19
    4011283 RELAY, SERIES 303
    RELAY, SERIES 303
  • 20
    2410280 FUSE, 15 AMP.
    FUSE, 15 AMP.
  • 21
    4013062 RESISTOR
    RESISTOR
  • 22
    4011284 RELAY, SERIES 301
    RELAY, SERIES 301
  • 23
    7080983 CLAMP
    CLAMP
  • 24
    7517739 SCREW
    SCREW
  • 25
    5248079-408 BRACKET, CONNECTOR, ZINC/BLACK
    BRACKET, CONNECTOR, ZINC/BLACK
  • 26
    7670102 CLIP
    CLIP
  • 27
    7080138 CABLE TIE
    CABLE TIE
  • 28
    4012718 REGULATOR, VOLT, BLACK
    REGULATOR, VOLT, BLACK
  • 29
    7517272 SCREW
    SCREW
  • 30
    2434017 FUSE, PARK, 20 AMP
    FUSE, PARK, 20 AMP
  • 31
    4012103 MODULE, FLASHER, 10W
    MODULE, FLASHER, 10W
  • 32
    7670078 CLIP, PLASTIC DART
    CLIP, PLASTIC DART
  • 33
    7710495 NUT
    NUT
  • 34
    4010778 BOOT
    BOOT
  • 35
    2410332 BREAKER, CIRCUIT
    BREAKER, CIRCUIT
  • 35
    7541931 NUT
    NUT
  • 36
    7081040 RIVET
    RIVET
  • 37
    1016624 PLATE, STUD, M4
    PLATE, STUD, M4
  • 38
    4012448 HORN
    HORN
  • 39
    7556477 WASHER, FLAT
    WASHER, FLAT
  • 40
    4011296 SENSOR, TIP OVER
    SENSOR, TIP OVER
  • 41
    1017988 ASM., SIDE STAND SENSOR (INTERNATIONAL)
    ASM., SIDE STAND SENSOR (INTERNATIONAL)
  • 41
    4013130 SWITCH, SIDE STAND (INTERNATIONAL)
    SWITCH, SIDE STAND (INTERNATIONAL)
  • 41
    4013131 MAGNET, SIDE STAND (INTERNATIONAL)
    MAGNET, SIDE STAND (INTERNATIONAL)
  • 41
    7519276 SCREW (INTERNATIONAL)
    SCREW (INTERNATIONAL)
