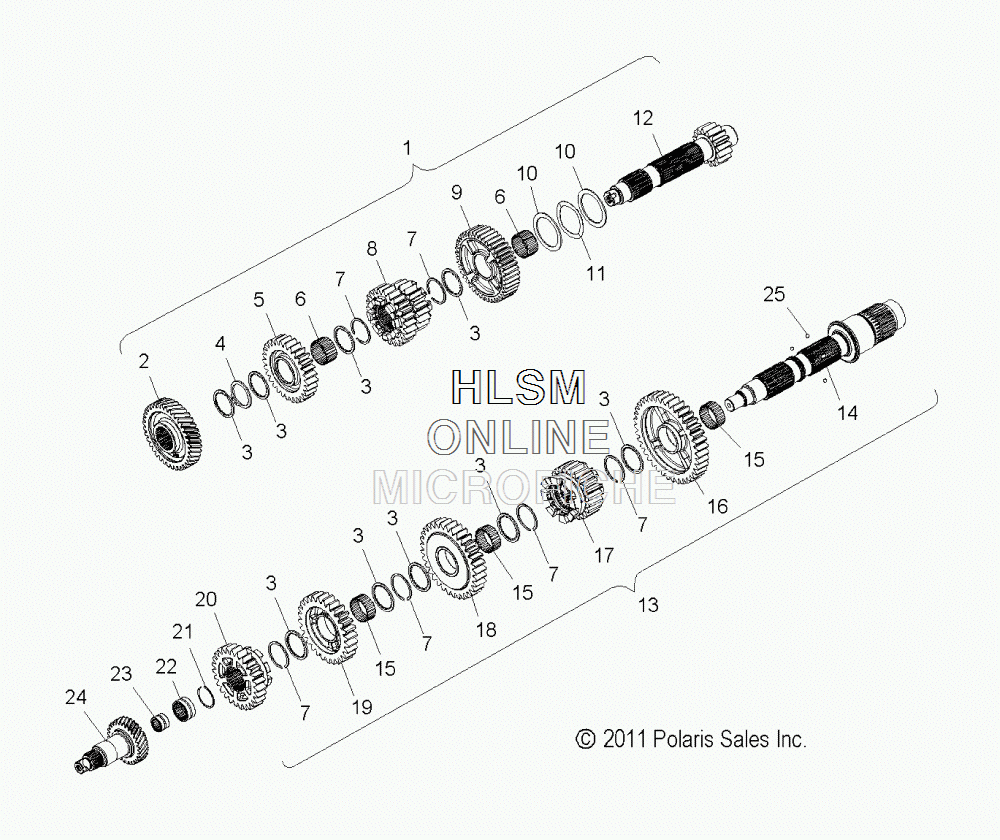

TRANSMISSION (6 SPEED) для Polaris KINGPIN - 2012 года выпуска`
-
№АртикулНазвание
-
11332973 ASM., COUNTERSHAFT (INCL. 2-12)ASM., COUNTERSHAFT (INCL. 2-12)
-
26230453 GEAR, COMMON, COUNTERSHAFTGEAR, COMMON, COUNTERSHAFT
-
35247690 WASHER, THRUSTWASHER, THRUST
-
47710641 RING, RETAININGRING, RETAINING
-
56230419 GEAR, 4TH COUNTERSHAFTGEAR, 4TH COUNTERSHAFT
-
63514608 BEARING, NEEDLE, SPLITBEARING, NEEDLE, SPLIT
-
77710525 RING, RETAININGRING, RETAINING
-
86230497 GEAR, 2ND/3RD, COUNTERSHAFTGEAR, 2ND/3RD, COUNTERSHAFT
-
96230498 GEAR, 6TH COUNTERSHAFTGEAR, 6TH COUNTERSHAFT
-
107556533 WASHER, THRUSTWASHER, THRUST
-
117556534 WASHER, WAVEWASHER, WAVE
-
126230452 GEAR, COUNTERSHAFT, 1STGEAR, COUNTERSHAFT, 1ST
-
131332974 ASM., MAINSHAFT, 6 SPEED (INCL. 3,7,14-20)ASM., MAINSHAFT, 6 SPEED (INCL. 3,7,14-20)
-
146230459 SHAFT, MAINSHAFT, MAIN
-
153584006 BEARING, ROLLERBEARING, ROLLER
-
166230415 GEAR, 1ST MAINSHAFTGEAR, 1ST MAINSHAFT
-
176230496 GEAR, 6TH MAINSHAFTGEAR, 6TH MAINSHAFT
-
186230493 GEAR, 2ND MAINSHAFTGEAR, 2ND MAINSHAFT
-
196230494 GEAR, 3RD MAINSHAFTGEAR, 3RD MAINSHAFT
-
206230495 GEAR, 4TH MAINSHAFTGEAR, 4TH MAINSHAFT
-
217710632 RING, RETAININGRING, RETAINING
-
241332799 ASM., INPUT SHAFT AND GEAR (INCL. 21,22,23)ASM., INPUT SHAFT AND GEAR (INCL. 21,22,23)
-
253514681 BEARING, BALLBEARING, BALL
