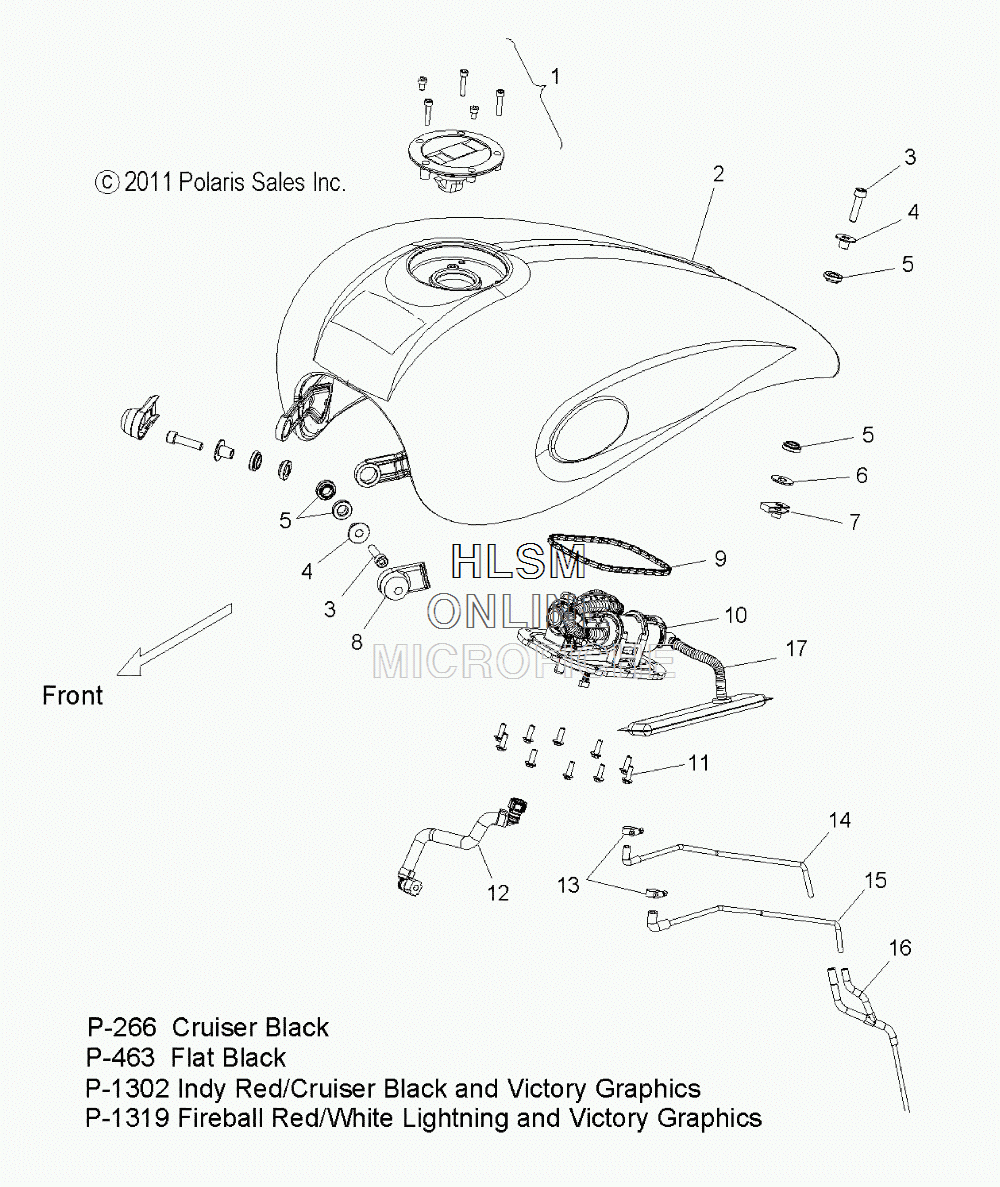

FUEL TANK для Polaris HAMMER S - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    4012376-266 ASM., IGNITION/FUEL CAP, BLACK
    ASM., IGNITION/FUEL CAP, BLACK
  • 1
    4012377-266 ASM., IGNITION/FUEL CAP, SILVER (INT'L)
    ASM., IGNITION/FUEL CAP, SILVER (INT'L)
  • 1
    7518086 SCREW
    SCREW
  • 1
    7517845 SCREW
    SCREW
  • 1
    7517515 SCREW
    SCREW
  • 2
    1018004-266 TANK, FUEL, NO SPINE
    TANK, FUEL, NO SPINE
  • 2
    1018004-463 TANK, FUEL, NO SPINE
    TANK, FUEL, NO SPINE
  • 2
    1018004-1302 TANK, FUEL, NO SPINE
    TANK, FUEL, NO SPINE
  • 2
    1018004-1319 TANK, FUEL, NO SPINE
    TANK, FUEL, NO SPINE
  • 3
    7517525 SCREW
    SCREW
  • 4
    5136665 BUSHING, FLANGE
    BUSHING, FLANGE
  • 5
    5414144 ISOLATOR, TANK
    ISOLATOR, TANK
  • 6
    7556260 WASHER
    WASHER
  • 7
    7547233 U-NUT
    U-NUT
  • 8
    5412414 COVER, MOUNT, LEFT HAND
    COVER, MOUNT, LEFT HAND
  • 8
    5412415 COVER, MOUNT, RIGHT HAND
    COVER, MOUNT, RIGHT HAND
  • 9
    5413346 SEAL, FUEL, MOLDED
    SEAL, FUEL, MOLDED
  • 10
    2521169 PUMP, FUEL
    PUMP, FUEL
  • 11
    7518923 SCREW
    SCREW
  • 12
    5414150 LINE, FUEL, TANK TO RAIL
    LINE, FUEL, TANK TO RAIL
  • 13
    7081151 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    5435764 LINE, WATER DRAIN
    LINE, WATER DRAIN
  • 15
    5437376 LINE, FUEL VENT
    LINE, FUEL VENT
  • 16
    5435771 LINE, WATER/FUEL TO GROUND
    LINE, WATER/FUEL TO GROUND
  • 17
    2520909 ASM., FILTER, FUEL
    ASM., FILTER, FUEL
