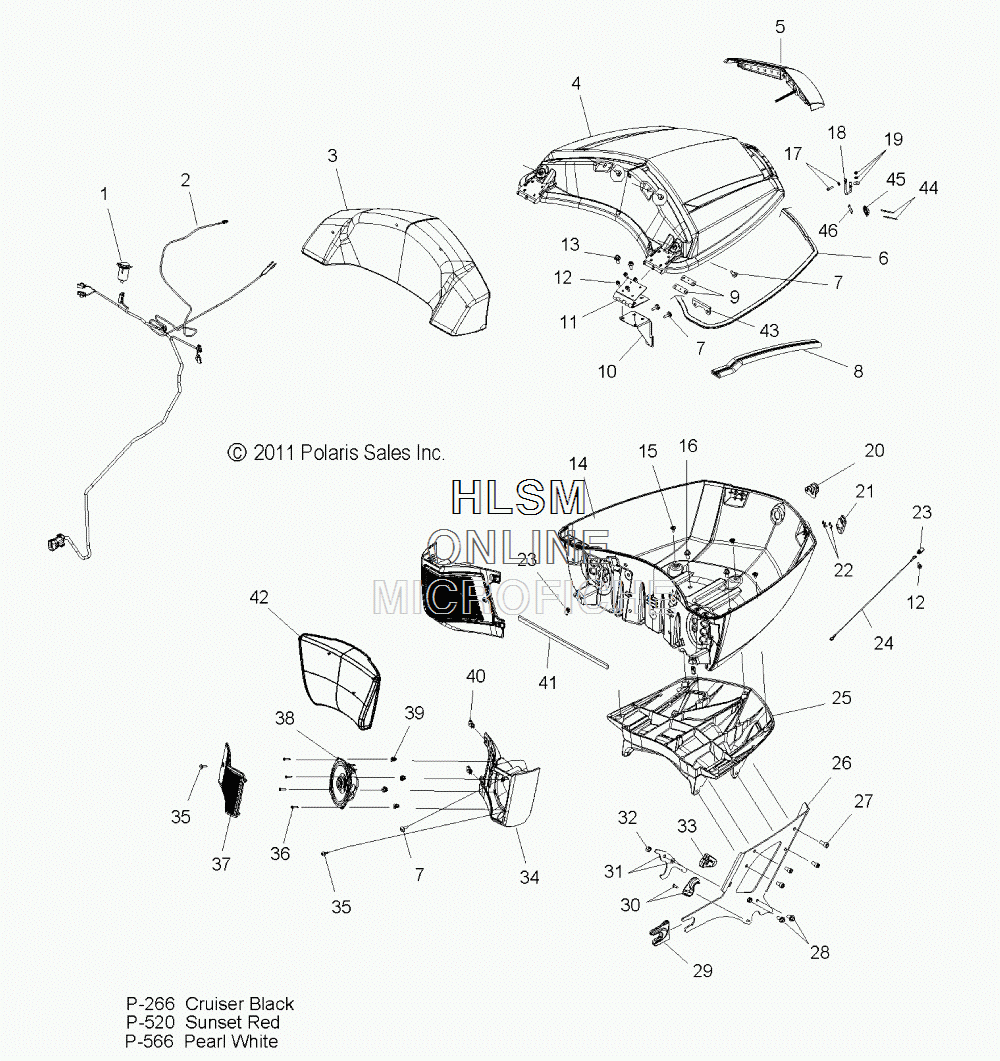

TRUNK ASSEMBLY (ACCESSORY) для Polaris CROSS COUNTRY TOUR - 2012 года выпуска
-
№АртикулНазвание
-
14012393 RECEPTACLE, POD MOUNT, 12 VRECEPTACLE, POD MOUNT, 12 V
-
22411348 HARNESS, TRUNKHARNESS, TRUNK
-
32684423 ASM., TOP PADASM., TOP PAD
-
45438159-266 PANEL, LID (CRUSER BLACK)PANEL, LID (CRUSER BLACK)
-
45438159-520 PANEL, LID (SUNSET RED)PANEL, LID (SUNSET RED)
-
45438159-566 PANEL, LID (PEARL WHITE)PANEL, LID (PEARL WHITE)
-
52411347 ASM., LAMP, RUNNINGASM., LAMP, RUNNING
-
65521798 SEALSEAL
-
77518484 SCREWSCREW
-
85521819 COVER, WIRE, TRUNK LIDCOVER, WIRE, TRUNK LID
-
92634025 ASM., PLATE, HINGE MOUNT, LIDASM., PLATE, HINGE MOUNT, LID
-
102634023 ASM., BRACKET, HINGE SUPPORT, RIGHT HANDASM., BRACKET, HINGE SUPPORT, RIGHT HAND
-
102634024 ASM., BRACKET, HINGE SUPPORT, LEFT HANDASM., BRACKET, HINGE SUPPORT, LEFT HAND
-
112633934 ASM., HINGEASM., HINGE
-
127518875 SCREWSCREW
-
137517770 SCREWSCREW
-
145438158-266 PANEL, TRUNK BIN (CRUSER BLACK)PANEL, TRUNK BIN (CRUSER BLACK)
-
145438158-520 PANEL, TRUNK BIN (SUNSET RED)PANEL, TRUNK BIN (SUNSET RED)
-
145438158-566 PANEL, TRUNK BIN (PEARL WHITE)PANEL, TRUNK BIN (PEARL WHITE)
-
157518788 BOLT, SHOULDERBOLT, SHOULDER
-
167517956 SCREWSCREW
-
177518900 SCREWSCREW
-
177555727 WASHERWASHER
-
185336385 HOOP, WIREFORM, LOCKHOOP, WIREFORM, LOCK
-
197556034 WASHERWASHER
-
197556071 WASHERWASHER
-
197546601 NUT, NYLOKNUT, NYLOK
-
202633936 ASM., LOCKASM., LOCK
-
212633935 ASM., LATCHASM., LATCH
-
227519233 SCREWSCREW
-
227555727 WASHERWASHER
-
237547386 NUT, CLIP, U-SPEEDNUT, CLIP, U-SPEED
-
247081653 CABLECABLE
-
255137308-521 SUPPORT, TRUNK, CENTER (BLACK ENGINE WRINKLE)SUPPORT, TRUNK, CENTER (BLACK ENGINE WRINKLE)
-
261017622-463 SUPPORT, TRUNK, SIDE, LEFT HAND (FLAT BLACK)SUPPORT, TRUNK, SIDE, LEFT HAND (FLAT BLACK)
-
261017623-463 SUPPORT, TRUNK, SIDE, LEFT HAND (FLAT BLACK)SUPPORT, TRUNK, SIDE, LEFT HAND (FLAT BLACK)
-
277517410 SCREW (BLACK)SCREW (BLACK)
-
287517956 SCREWSCREW
-
295413968 MOUNT, SPOOL, FRONTMOUNT, SPOOL, FRONT
-
305438474 BUSHING, TRUNK MOUNT, RIGHT HANDBUSHING, TRUNK MOUNT, RIGHT HAND
-
305438535 BUSHING, TRUNK MOUNT, LEFT HANDBUSHING, TRUNK MOUNT, LEFT HAND
-
307621462 RIVETRIVET
-
315254096 LATCH, SUPPORTLATCH, SUPPORT
-
315438633 BUSHINGBUSHING
-
327547144 NUT, NYLOKNUT, NYLOK
-
335413864 HANDLE, LATCHHANDLE, LATCH
-
345438425 PANEL, SPEAKER HOUSING, LEFT HANDPANEL, SPEAKER HOUSING, LEFT HAND
-
345438426 PANEL, SPEAKER HOUSING, RIGHT HANDPANEL, SPEAKER HOUSING, RIGHT HAND
-
357518515 BOLTBOLT
-
367518590 SCREWSCREW
-
375438423 PANEL, SPEAKER GRILL, LEFT HANDPANEL, SPEAKER GRILL, LEFT HAND
-
375438424 PANEL, SPEAKER GRILL, RIGHT HANDPANEL, SPEAKER GRILL, RIGHT HAND
-
384012273 SPEAKERSPEAKER
-
397547324 NUT, PALNUT, PAL
-
407081305 CLIP, U SPEED NUTCLIP, U SPEED NUT
-
415813595 GASKET, STRIP, FOAMGASKET, STRIP, FOAM
-
422684424 ASM., BACKRESTASM., BACKREST
-
432634044 ASM., BRACKET, LANYARDASM., BRACKET, LANYARD
-
447661993 RIVETRIVET
-
455632443 HASP, LATCH, TRUNKHASP, LATCH, TRUNK
-
465254213 PLATE, LATCH, BACKERPLATE, LATCH, BACKER
