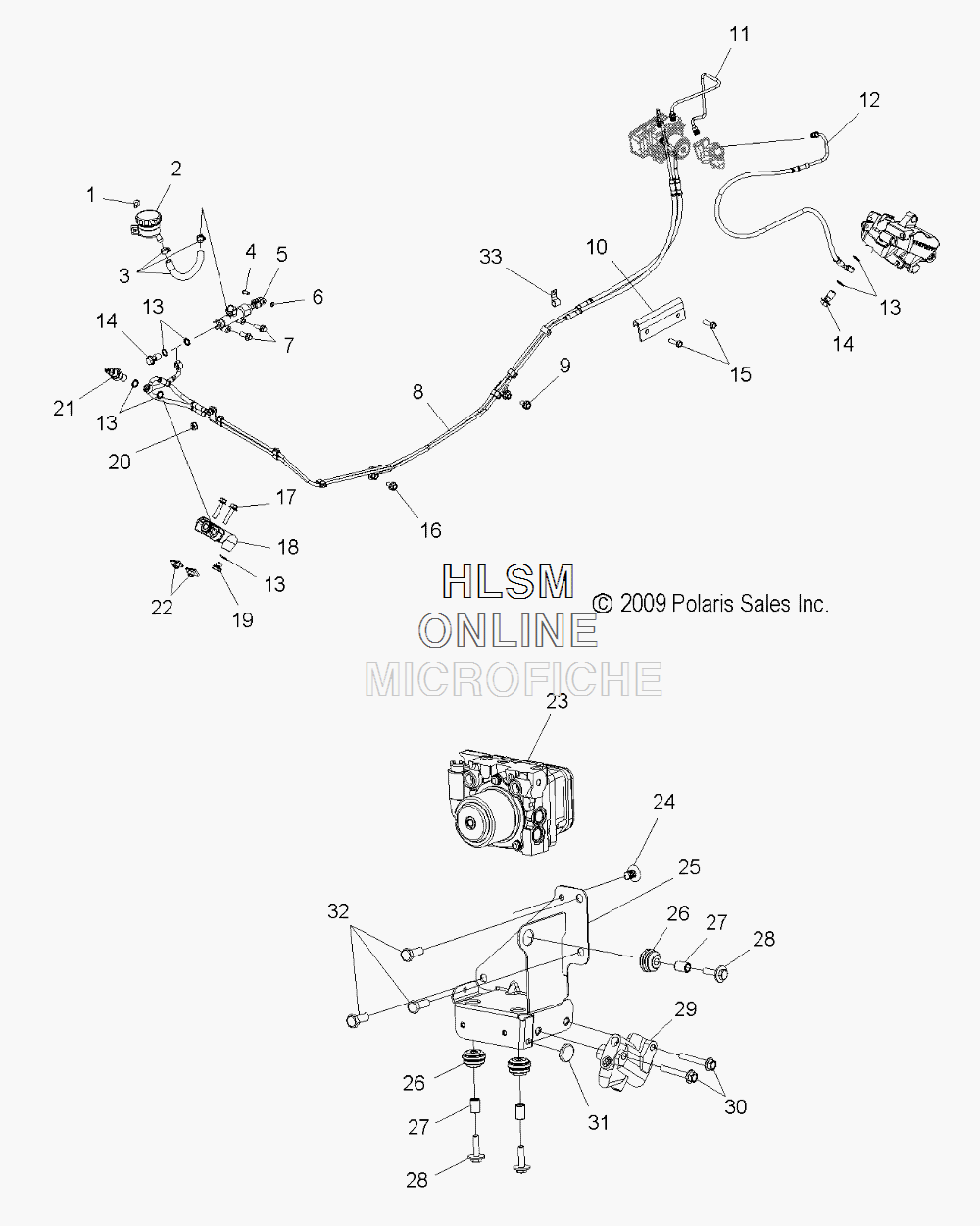

BRAKE LINES - REAR (W/ ABS) для Polaris VISION NESS [V11SA36] - 2011 года выпуска`
-
№АртикулНазвание
-
17517770 SCREW, HXFLGHD, M6X16 (10)SCREW, HXFLGHD, M6X16 (10)
-
22203668 KIT, TANK ASM. SET (INCL. 3)KIT, TANK ASM. SET (INCL. 3)
-
32203669 KIT, HOSE SETKIT, HOSE SET
-
47661873 PIN, CLEVIS, M6X15, E-CLIPPIN, CLEVIS, M6X15, E-CLIP
-
51911507 ASM., MASTER CYLINDER, 17.46MM DIAASM., MASTER CYLINDER, 17.46MM DIA
-
67710568 E-CLIP-M5, SS, 0600101E-CLIP-M5, SS, 0600101
-
77516734 SCREWSCREW
-
81911462 HOSE, BRAKE, REAR, ABSHOSE, BRAKE, REAR, ABS
-
97518043 SCREW-HEXFLGHD, M8X16, 0600086SCREW-HEXFLGHD, M8X16, 0600086
-
105438140 RETAINER, BRAKE LINE, ABS, REARRETAINER, BRAKE LINE, ABS, REAR
-
111911464 PIPE, BRAKE, ABS PROP.PIPE, BRAKE, ABS PROP.
-
121911469 HOSE, BRAKE, REAR CALIPER TO MODULEHOSE, BRAKE, REAR CALIPER TO MODULE
-
137556372 WASHER, COPPER SEALINGWASHER, COPPER SEALING
-
141910958 BOLT, BANJO, 10MM X 1.25-6GBOLT, BANJO, 10MM X 1.25-6G
-
157518773 SCREW-M6X1.0X16, HXFLG, THDFRMSCREW-M6X1.0X16, HXFLG, THDFRM
-
167517704 SCREWSCREW
-
177518003 SCREW-HXFLGHD, M6X30, 0600086SCREW-HXFLGHD, M6X30, 0600086
-
181910930 VALVE, BRAKE, DELAYVALVE, BRAKE, DELAY
-
197519118 PLUG, BRAKE, DELAY VALVEPLUG, BRAKE, DELAY VALVE
-
207710495 NUTNUT
-
214012399 SWITCH, PRESSURE, BRAKE, M10X1.25SWITCH, PRESSURE, BRAKE, M10X1.25
-
227547370 U-NUT, M6X1.00U-NUT, M6X1.00
-
231911388 MODULE, ABS, SVCMODULE, ABS, SVC
-
247670088 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
251016996 BRACKET, ABS MOUNT, REARBRACKET, ABS MOUNT, REAR
-
265413711 GROMMET, ABS MOUNTGROMMET, ABS MOUNT
-
275136840 COLLAR, ABS 10 OD, 7 ID, 15 LONGCOLLAR, ABS 10 OD, 7 ID, 15 LONG
-
287519089 SCREW-HH-M6X1.0X25 8.8 ZPC SPCSCREW-HH-M6X1.0X25 8.8 ZPC SPC
-
291911280 VALVE, BRAKE, PROPORTIONINGVALVE, BRAKE, PROPORTIONING
-
307518579 SCREW-HXFLGHD, M6X40, 0600086SCREW-HXFLGHD, M6X40, 0600086
-
315412554 BUMPER, RUBBER, 6.4P, 4.0T, 20.6DIABUMPER, RUBBER, 6.4P, 4.0T, 20.6DIA
-
327518097 SCREW-HEXHD, M8X20, ZINC, 0600088SCREW-HEXHD, M8X20, ZINC, 0600088
-
337080998 CLAMP, VINYL COATEDCLAMP, VINYL COATED
