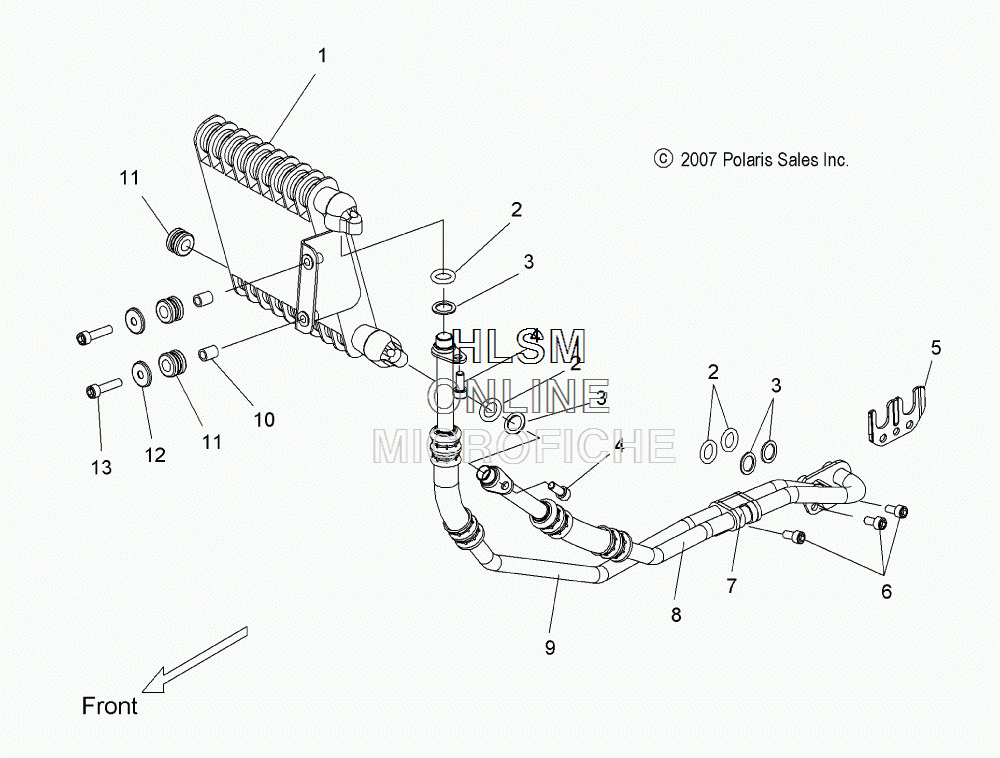

OIL COOLING SYSTEM для Polaris VISION 8-BALL [V11AW36] - 2011 года выпуска
-
№АртикулНазвание
-
11240253-067 COOLER, OIL (BLACK)COOLER, OIL (BLACK)
-
25411356 O-RINGO-RING
-
37556380 RING, BACK UPRING, BACK UP
-
47517272 SCREW, SOCHD, M6X15SCREW, SOCHD, M6X15
-
55135945 RETAINER, OIL LINERETAINER, OIL LINE
-
67517272 SCREW, SOCHD, M6X15SCREW, SOCHD, M6X15
-
75437099 GROMMET, OIL LINEGROMMET, OIL LINE
-
77081457 CLAMP, OIL LINECLAMP, OIL LINE
-
82521146 ASM., OIL LINE, COOLING, ENGINE, OUTASM., OIL LINE, COOLING, ENGINE, OUT
-
92521147 ASM., OIL LINE, COOLING, ENGINE, INASM., OIL LINE, COOLING, ENGINE, IN
-
105133550 SLEEVE-.38"ODX.25"IDX.48"LSLEEVE-.38"ODX.25"IDX.48"L
-
115412201 GROMMET-.38"IDX.75"ODX.5"THKGROMMET-.38"IDX.75"ODX.5"THK
-
127556239 WASHER, CUP, .25"IDX.81"OD, SSWASHER, CUP, .25"IDX.81"OD, SS
-
137517259 SCREW, SOCHD,SCREW, SOCHD,
