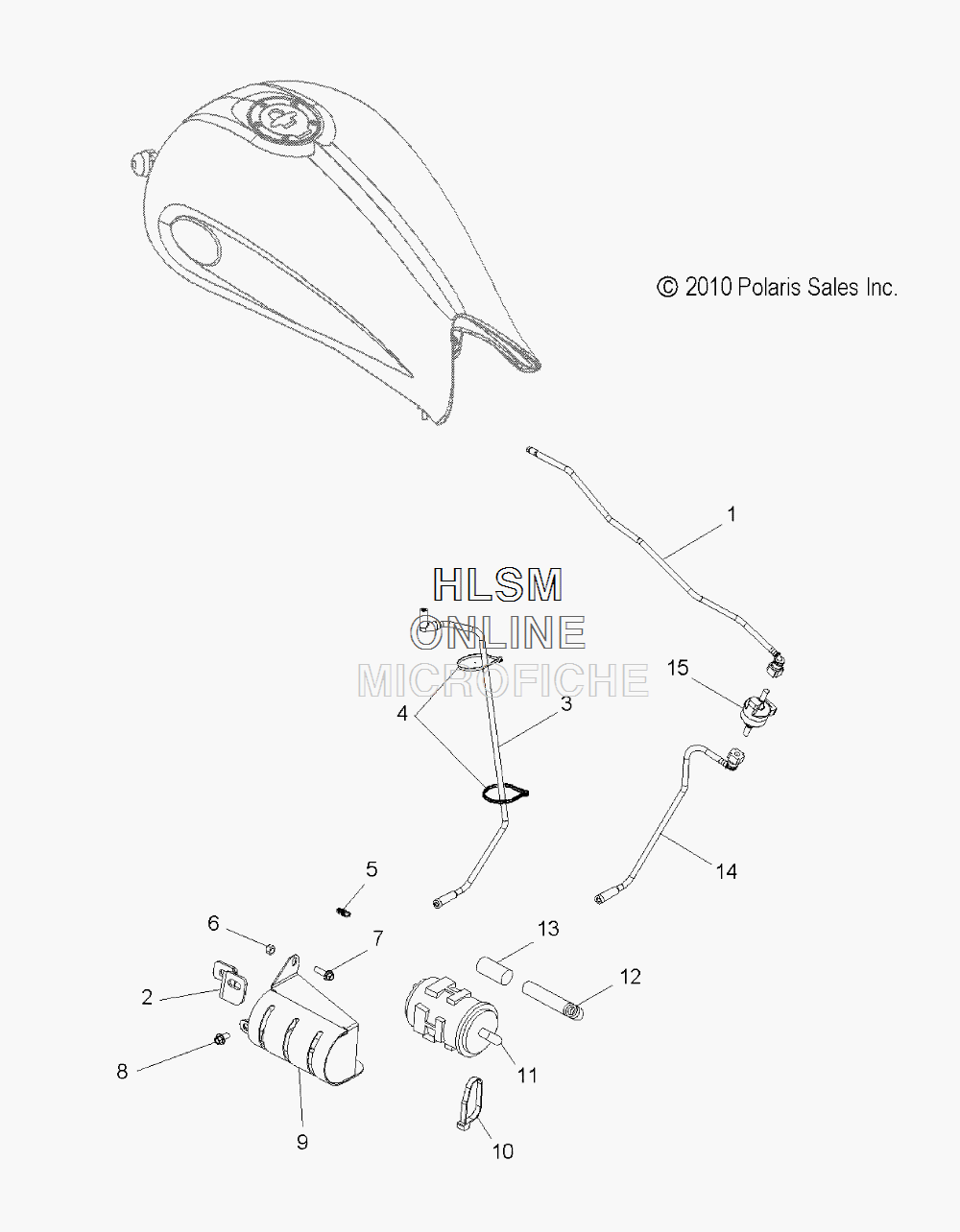

FUEL SYSTEM- EVAP SYSTEM (CA) для Polaris KINGPIN [V11CA36] - 2011 года выпуска
-
№АртикулНазвание
-
15438443 TUBE, VENT, PURGE TO TBTUBE, VENT, PURGE TO TB
-
25254067-266 BRACKET, SIDE STAND STOP (CRUISER BLACK)BRACKET, SIDE STAND STOP (CRUISER BLACK)
-
35438441 LINE, VENT, TANK TO CANLINE, VENT, TANK TO CAN
-
47080138 CABLE TIECABLE TIE
-
57080756 CLIP, SNAP-INCLIP, SNAP-IN
-
67547121 NUTNUT
-
77517839 SCREW-HEXFLGHD, M8 X 25 (10)SCREW-HEXFLGHD, M8 X 25 (10)
-
87518043 SCREW-HEXFLGHD, M8X16, 0600086SCREW-HEXFLGHD, M8X16, 0600086
-
91015996-463 BRACKET, EVAP CANISTER (FLAT BLACK)BRACKET, EVAP CANISTER (FLAT BLACK)
-
107080924 TIEWRAPTIEWRAP
-
112520192 FILTERFILTER
-
125411870 HOSE, VENTHOSE, VENT
-
137080932 FILTER, VENT LINEFILTER, VENT LINE
-
145436760 TUBE, VENT, EVAP TO PURGETUBE, VENT, EVAP TO PURGE
-
154011303 VALVE, CANISTER, PURGEVALVE, CANISTER, PURGE
