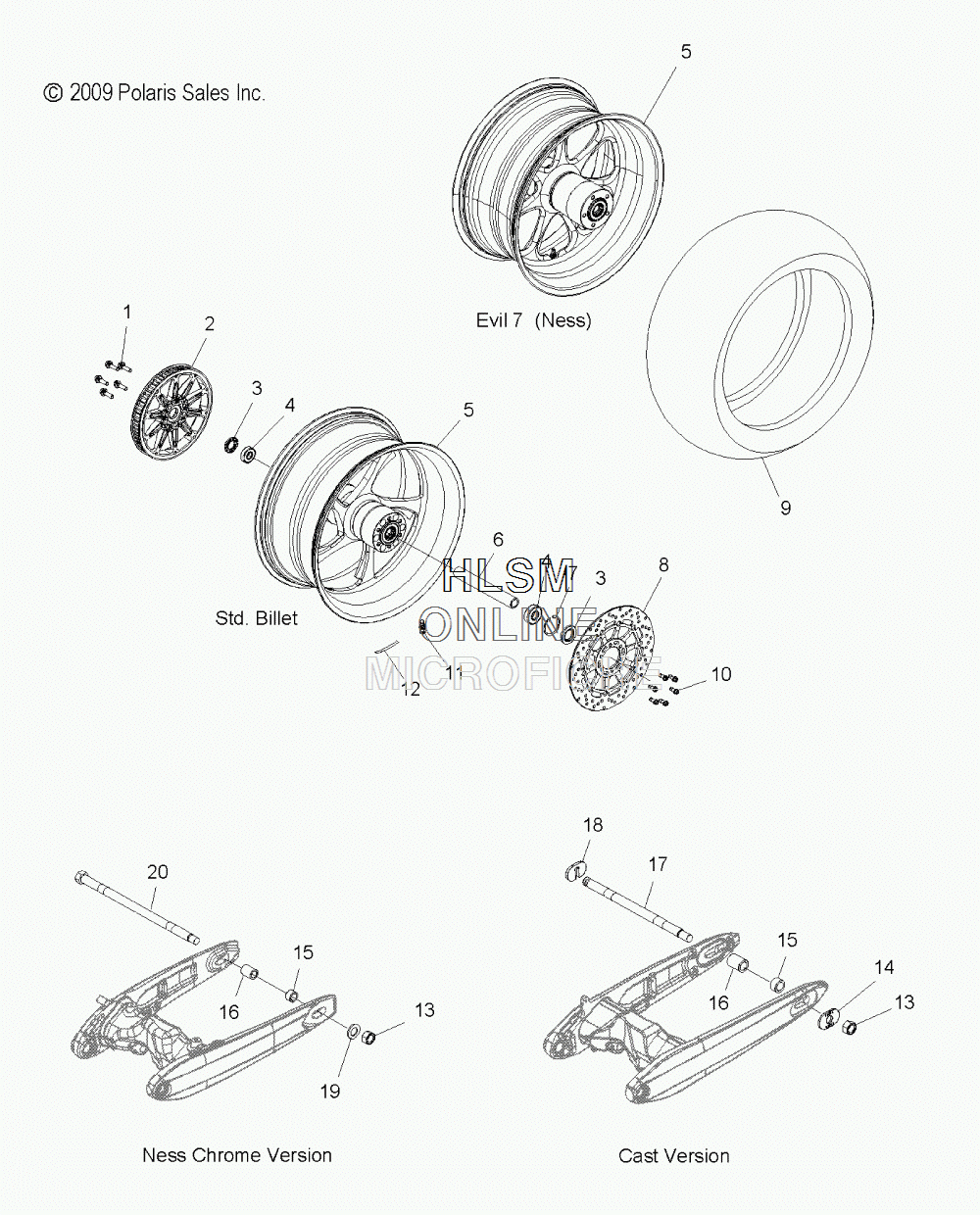

WHEELS- REAR для Polaris JACKPOT (EU) [V10XB36EJP] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7518878 SCREW
    SCREW
  • 2
    1332399-385 ASM., SPROCKET, DRIVEN, 70T (SILVER)
    ASM., SPROCKET, DRIVEN, 70T (SILVER)
  • 3
    3610094 SEAL
    SEAL
  • 4
    3514405 BEARING, BALL
    BEARING, BALL
  • 5
    1521386-405 ASM., WHEEL, BILLET, REAR (INCL. 3-8,11,12)
    ASM., WHEEL, BILLET, REAR (INCL. 3-8,11,12)
  • 6
    5334450 SPACER, BEARING
    SPACER, BEARING
  • 7
    7710526 RING, RETAINING
    RING, RETAINING
  • 8
    1911463-385 ROTOR, BRAKE (SILVER)
    ROTOR, BRAKE (SILVER)
  • 9
    5412522 TIRE, REAR
    TIRE, REAR
  • 10
    7518661 SCREW
    SCREW
  • 11
    1520995 VALVE, RIM, CHROME
    VALVE, RIM, CHROME
  • 12
    1520618 WEIGHT, BALANCE
    WEIGHT, BALANCE
  • 13
    7547226 NUT, HEX
    NUT, HEX
  • 14
    5248452-236 WASHER, INDICATOR, AXLE, ZNC
    WASHER, INDICATOR, AXLE, ZNC
  • 15
    5631479 SPACER, LEFT HAND
    SPACER, LEFT HAND
  • 16
    5631581 SPACER, RIGHT HAND
    SPACER, RIGHT HAND
  • 17
    5135747 AXLE, REAR, 250
    AXLE, REAR, 250
  • 18
    5248599 RETAINER, AXLE, REAR
    RETAINER, AXLE, REAR
  • 19
    7550001 WASHER, FLAT
    WASHER, FLAT
  • 20
    1014584 SPINDLE, WHEEL, REAR
    SPINDLE, WHEEL, REAR
