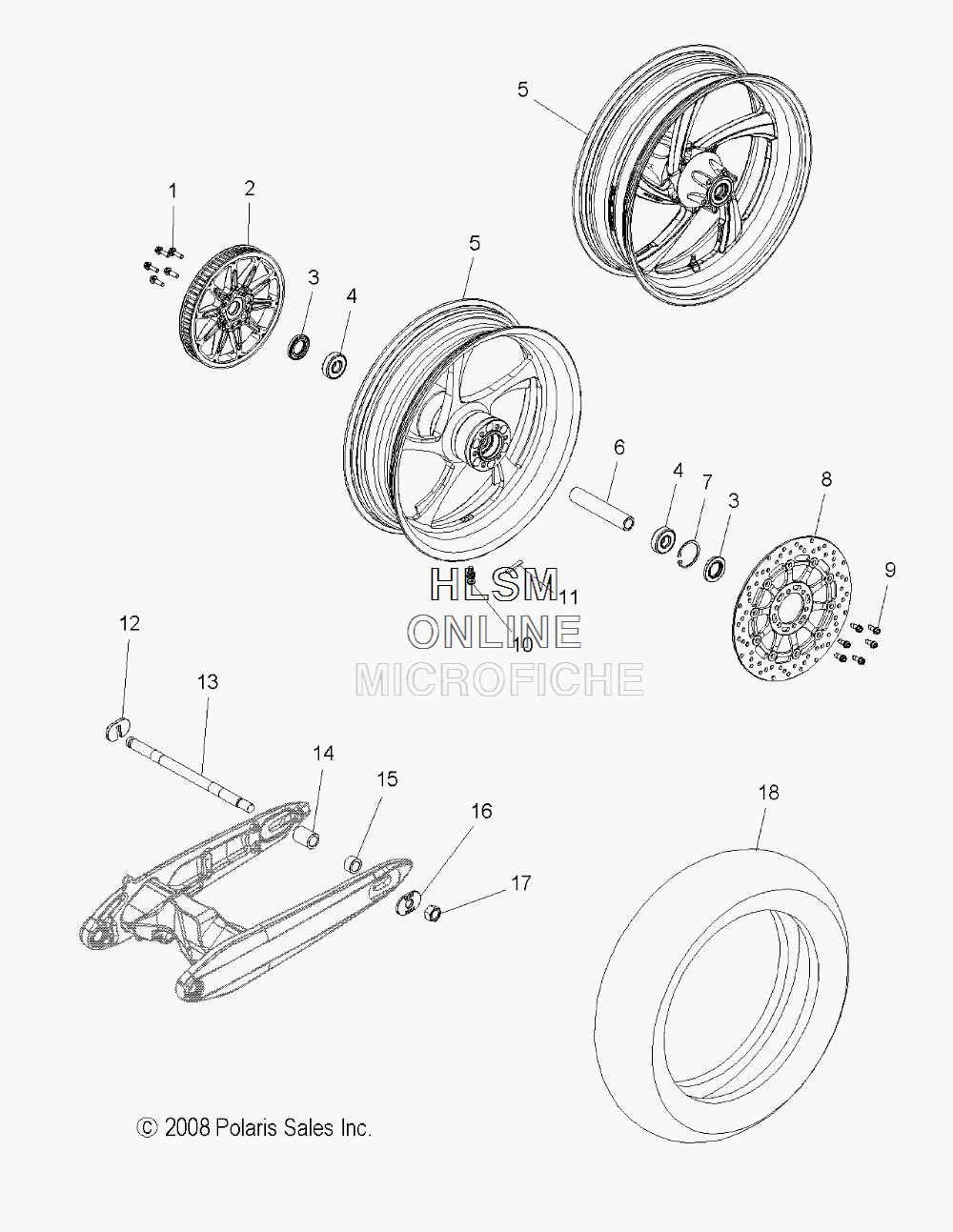

WHEELS- REAR для Polaris VEGAS LOW (CALIFORNIA) [V09LB26] - 2009 года выпуска`
-
№АртикулНазвание
-
17518878 SCREWSCREW
-
21332399-385 ASM., SPROCKET, 70T (SILVER)ASM., SPROCKET, 70T (SILVER)
-
33610094 SEALSEAL
-
43514405 BEARING, BALLBEARING, BALL
-
51521385-405 ASM., WHEEL, BILLET, REAR (INCL. 3-7,10,11)ASM., WHEEL, BILLET, REAR (INCL. 3-7,10,11)
-
51521153-385 ASM., WHEEL, REAR, CAST (SILVER) (INCL. 3-7,10,11)ASM., WHEEL, REAR, CAST (SILVER) (INCL. 3-7,10,11)
-
65334138 SPACER, BEARING, MIDSPACER, BEARING, MID
-
77710526 RING, RETAININGRING, RETAINING
-
81910959-385 ROTOR, BRAKE, FLOATING (SILVER)ROTOR, BRAKE, FLOATING (SILVER)
-
97518661 SCREWSCREW
-
101520995 VALVE, RIM (BILLET)VALVE, RIM (BILLET)
-
101521312 VALVE, RIM (CAST)VALVE, RIM (CAST)
-
111520618 WEIGHT, BALANCEWEIGHT, BALANCE
-
125248599 RETAINER-AXLE, REARRETAINER-AXLE, REAR
-
135135743 AXLE, REARAXLE, REAR
-
145631581 SPACER, WHEEL, REAR, RIGHT HANDSPACER, WHEEL, REAR, RIGHT HAND
-
155631479 SPACER, BEARING, LEFT HANDSPACER, BEARING, LEFT HAND
-
165248452-236 WASHER, INDICATOR, AXLEWASHER, INDICATOR, AXLE
-
177547226 NUT, HEXNUT, HEX
-
185412373 TIRE, REARTIRE, REAR
