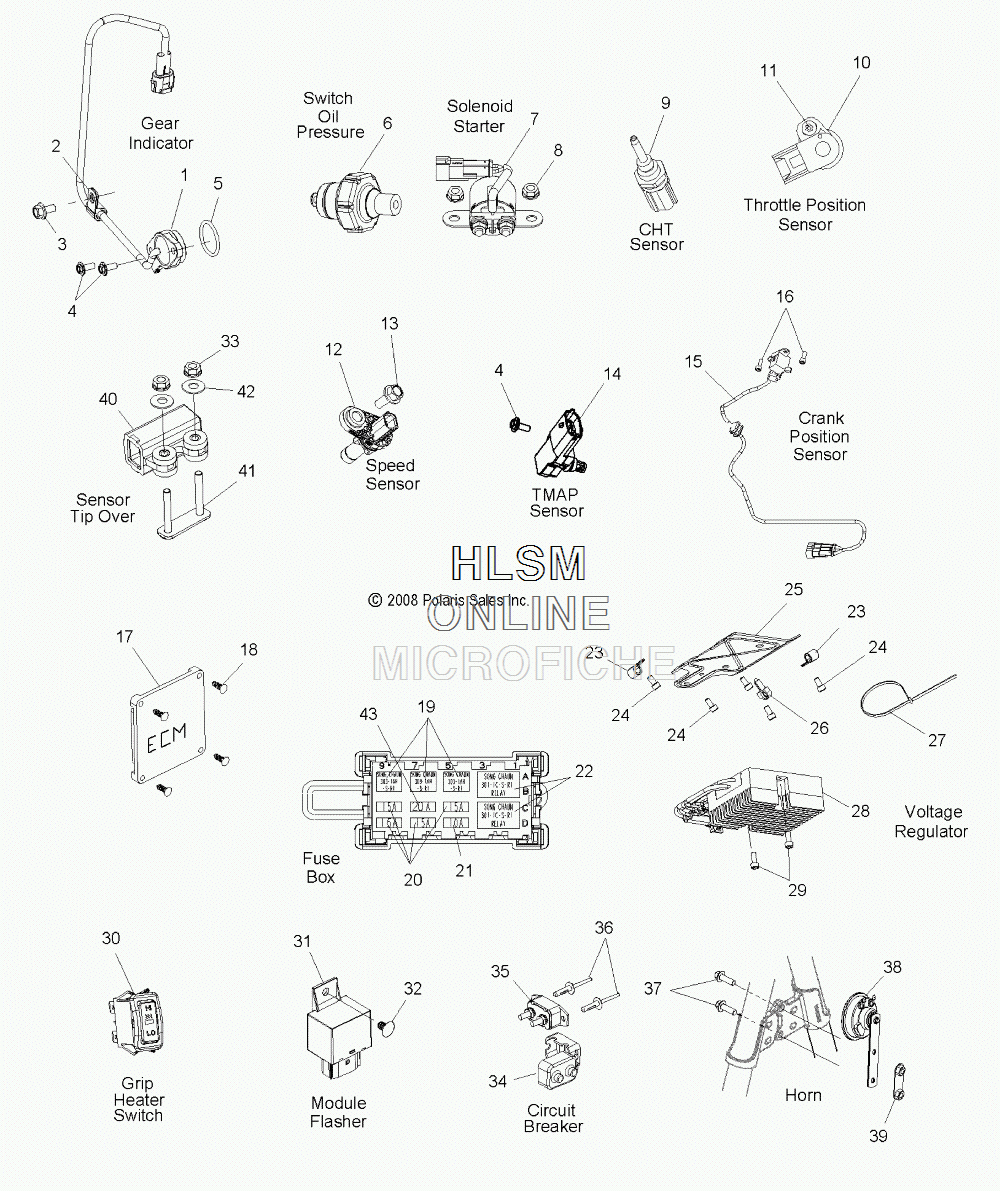

ELECTRICAL- SWITCHES AND SENSORS AND COMPONENTS для Polaris JACKPOT NESS (CANADA) [V09XC36] - 2009 года выпуска
-
№АртикулНазвание
-
14010976 SWITCH, GEAR INDICATORSWITCH, GEAR INDICATOR
-
27080983 CLAMPCLAMP
-
37517257 SCREWSCREW
-
47518338 SCREWSCREW
-
55412530 O-RINGO-RING
-
64010649 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
74012001 SOLENOID, STARTERSOLENOID, STARTER
-
87710495 NUTNUT
-
94011299 SENSOR, CYLINDER HEAD TEMPSENSOR, CYLINDER HEAD TEMP
-
104012101 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
117518901 SCREWSCREW
-
124011884 SENSOR, VEHICLE SPEEDSENSOR, VEHICLE SPEED
-
137517750 SCREWSCREW
-
142410422 SENSOR, T-MAPSENSOR, T-MAP
-
154012280 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
167518045 SCREWSCREW
-
174012388 PCM, SERVICEPCM, SERVICE
-
187670141 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
194011283 RELAY, SERIES 303RELAY, SERIES 303
-
202410280 FUSE, 15 AMP.FUSE, 15 AMP.
-
212434016 FUSE, 10 AMP.FUSE, 10 AMP.
-
224011284 RELAY, SERIES 301RELAY, SERIES 301
-
237080983 CLAMPCLAMP
-
247517739 SCREWSCREW
-
255248079-408 BRACKET, CONNECTOR, ZINC/BLACKBRACKET, CONNECTOR, ZINC/BLACK
-
267670102 CLIPCLIP
-
277080138 CABLE TIECABLE TIE
-
284012240 REGULATOR, VOLTAGE (BLACK)REGULATOR, VOLTAGE (BLACK)
-
284012241 REGULATOR, VOLTAGE (SILVER)REGULATOR, VOLTAGE (SILVER)
-
297517272 SCREWSCREW
-
304011319 SWITCH, HAND WARMERSWITCH, HAND WARMER
-
314012103 MODULE, FLASHER, 10WMODULE, FLASHER, 10W
-
327670078 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
337547126 NUTNUT
-
344010778 BOOTBOOT
-
352410332 BREAKER, CIRCUITBREAKER, CIRCUIT
-
367081040 RIVETRIVET
-
377518569 SCREWSCREW
-
384011589 HORNHORN
-
391014760-408 PLATE, NUT, ZINC BLACKPLATE, NUT, ZINC BLACK
-
404011296 SENSOR, TIP OVERSENSOR, TIP OVER
-
411016624 PLATE, STUD, M4PLATE, STUD, M4
-
427556477 WASHER, FLATWASHER, FLAT
-
432434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
