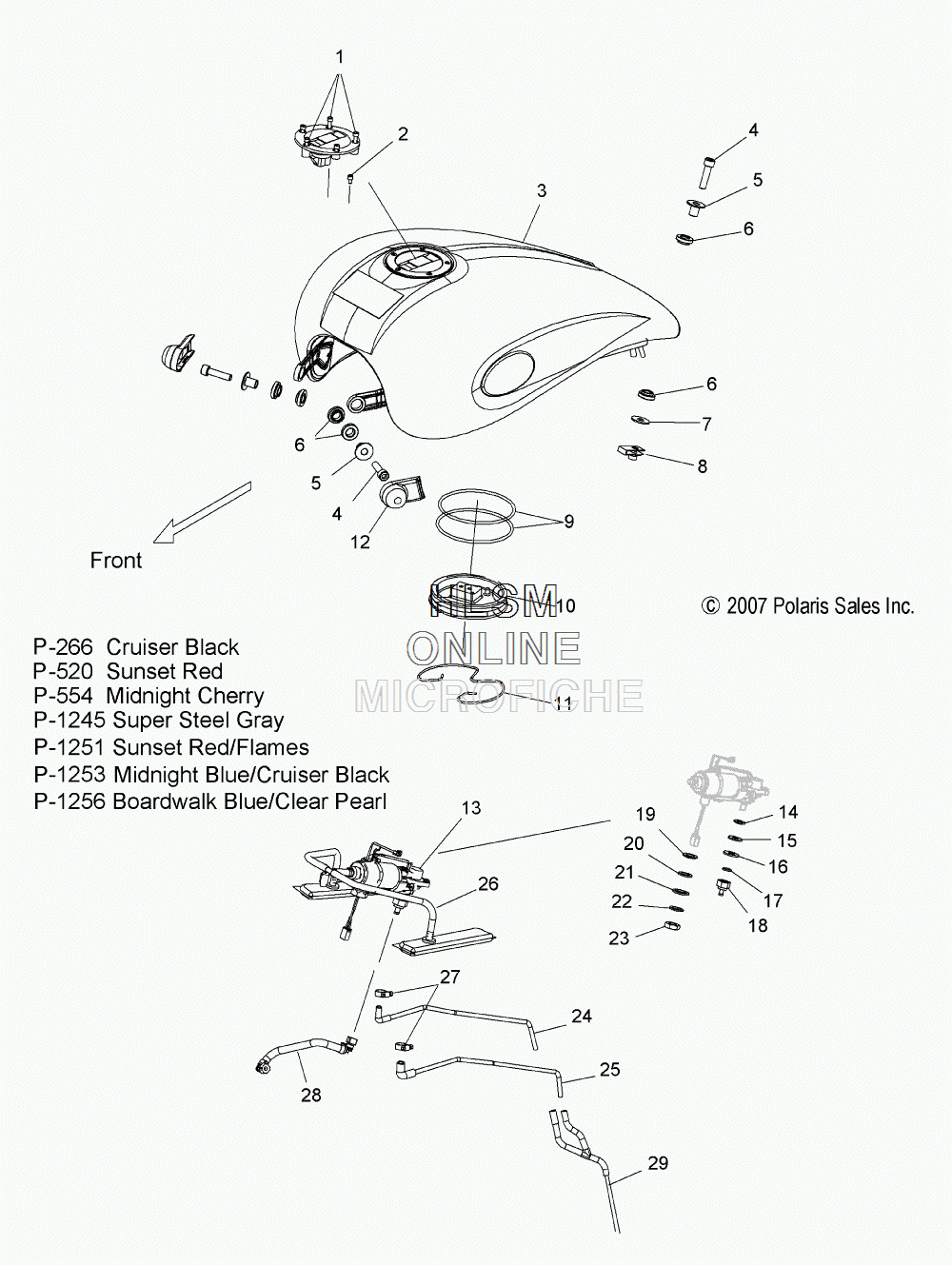

BODY- FUEL TANK для Polaris VEGAS LOW (CALIFORNIA) [V08LB26LA] - 2008 года выпуска
-
№АртикулНазвание
-
14011080-385 ASM., IGNITION/FUEL CAP (SILVER)ASM., IGNITION/FUEL CAP (SILVER)
-
14011080-266 ASM., IGNITION/FUEL CAP (BLACK)ASM., IGNITION/FUEL CAP (BLACK)
-
17518086 SCREWSCREW
-
27517845 SCREWSCREW
-
31014738-266 TANK, FUEL, SPINE (BLACK)TANK, FUEL, SPINE (BLACK)
-
31014738-520 TANK, FUEL, SPINE (SUNSET RED)TANK, FUEL, SPINE (SUNSET RED)
-
31014738-554 TANK, FUEL, SPINE (MIDNIGHT CHERRY)TANK, FUEL, SPINE (MIDNIGHT CHERRY)
-
31014738-1256 TANK, FUEL, SPINE (BOARDWALK BLUE)TANK, FUEL, SPINE (BOARDWALK BLUE)
-
47517525 SCREWSCREW
-
55134160 BUSHINGBUSHING
-
65412480 BUSHING, FLANGEBUSHING, FLANGE
-
77556260 WASHER, FLATWASHER, FLAT
-
87547233 U-NUTU-NUT
-
95412071 O-RINGO-RING
-
105133613 PLUGPLUG
-
117710515 RING, RETAININGRING, RETAINING
-
125412414 COVER, MOUNT, LEFT HANDCOVER, MOUNT, LEFT HAND
-
125412415 COVER, MOUNT, RIGHT HANDCOVER, MOUNT, RIGHT HAND
-
132520700 ASM., FUEL PUMPASM., FUEL PUMP
-
132520678 THERMISTOR, FUEL PUMPTHERMISTOR, FUEL PUMP
-
145412094 GROMMETGROMMET
-
155412093 GROMMETGROMMET
-
167556131 WASHERWASHER
-
175411869 O-RINGO-RING
-
182520701 FITTINGFITTING
-
195412096 GROMMETGROMMET
-
205412095 GROMMETGROMMET
-
217556193 WASHERWASHER
-
227556192 WASHERWASHER
-
237547186 NUTNUT
-
245435764 LINE, WATER DRAINLINE, WATER DRAIN
-
255437376 LINE FUEL VENTLINE FUEL VENT
-
262520322 ASM., FUEL LINE, FILTERASM., FUEL LINE, FILTER
-
277081151 CLAMP, HOSECLAMP, HOSE
-
285413235 LINE, FUEL, TANK TO FUEL RAILLINE, FUEL, TANK TO FUEL RAIL
-
295435771 LINE, WATER/FUEL TO GROUNDLINE, WATER/FUEL TO GROUND
