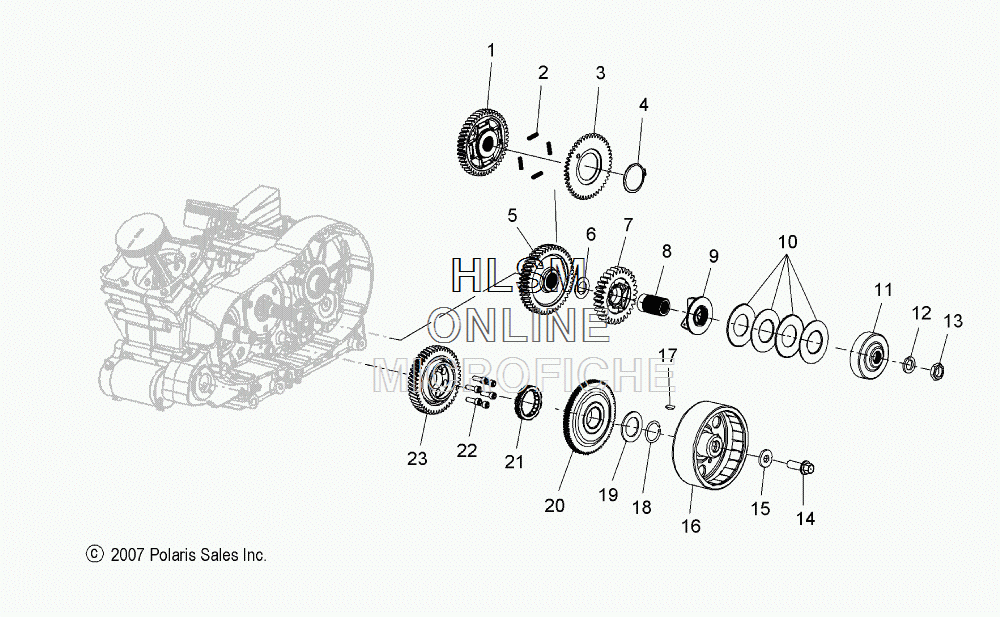

DRIVE TRAIN- PRIMARY DRIVE для Polaris VEGAS (CANADA) [V08GB26CA] - 2008 года выпуска`
-
№АртикулНазвание
-
16230272 GEAR, SPLIT, DRIVEGEAR, SPLIT, DRIVE
-
27042096 SPRING, SPLIT GEARSPRING, SPLIT GEAR
-
36230273 GEAR, SPLIT, BACKLASHGEAR, SPLIT, BACKLASH
-
47710529 RING, RETAININGRING, RETAINING
-
51341505 ASM., SPLIT GEAR (INCL. 1-4)ASM., SPLIT GEAR (INCL. 1-4)
-
67556449 WASHER, THRUSTWASHER, THRUST
-
76230333 GEAR, COMPENSATORGEAR, COMPENSATOR
-
85133045 SLEEVE, COMPENSATORSLEEVE, COMPENSATOR
-
95135550 SLIDER, COMPENSATORSLIDER, COMPENSATOR
-
107042019 SPRING, BELLEVILLE COMPENSATORSPRING, BELLEVILLE COMPENSATOR
-
115133085 RETAINER, COMPENSATORRETAINER, COMPENSATOR
-
127556166 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
137547019 NUTNUT
-
147518008 BOLT, OIL JETBOLT, OIL JET
-
157555987 WASHER, FLATWASHER, FLAT
-
164012082 ROTOR, CHARGINGROTOR, CHARGING
-
177721122 KEY, WOODRUFFKEY, WOODRUFF
-
187710490 RING, RETAINING, 35 DEGREERING, RETAINING, 35 DEGREE
-
197556237 WASHER, FLATWASHER, FLAT
-
201015167 ASM., CRANKSHAFT GEAR STARTER DRIVEASM., CRANKSHAFT GEAR STARTER DRIVE
-
214060156 CLUTCH, STARTER DRIVECLUTCH, STARTER DRIVE
-
227517260 SCREWSCREW
-
236230392 GEAR, PRIMARYGEAR, PRIMARY
