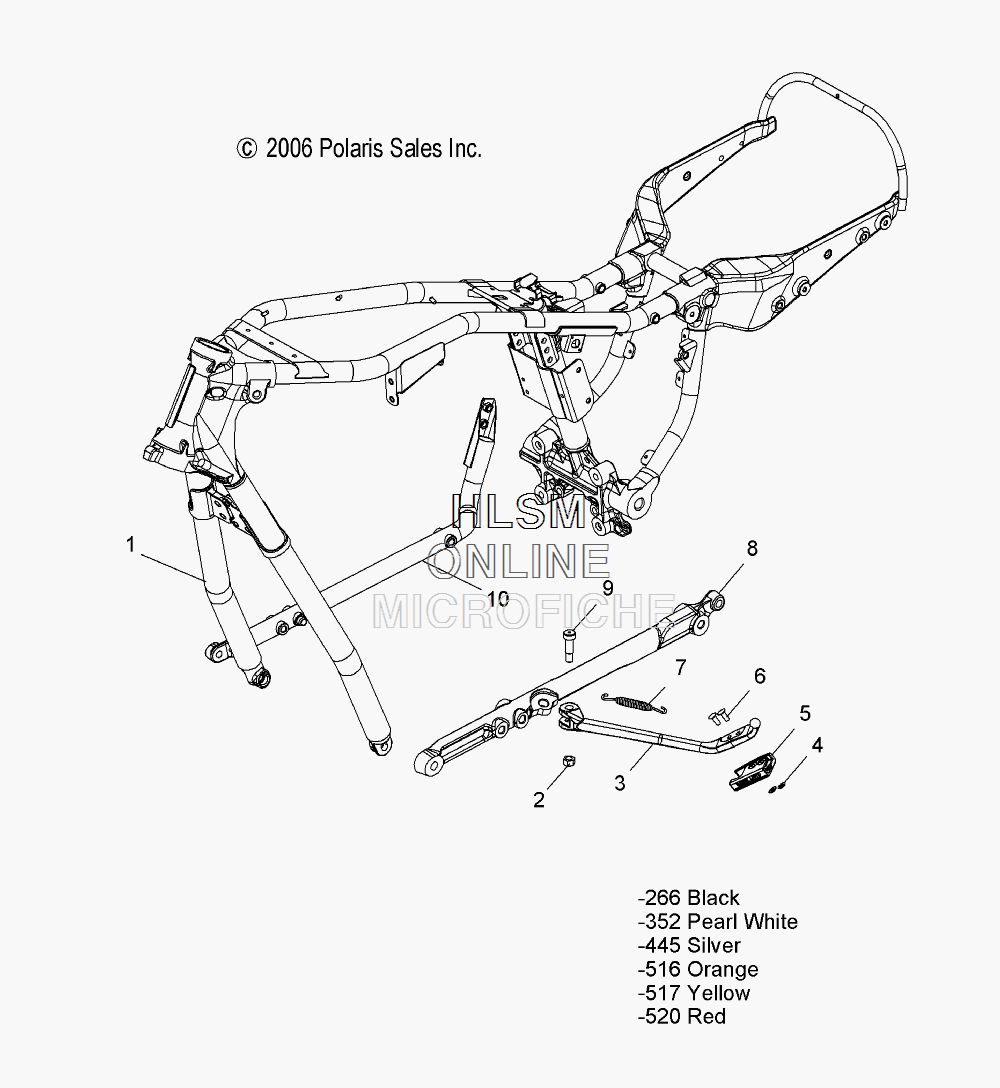

FRAME- MAIN для Polaris VEGAS JACKPOT NESS (49 STATE) [V07BC26DN] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1015508-266 FRAME, MAIN (BLACK)
    FRAME, MAIN (BLACK)
  • 1
    1015508-352 FRAME, MAIN (WHITE)
    FRAME, MAIN (WHITE)
  • 1
    1015508-516 FRAME, MAIN (ORANGE)
    FRAME, MAIN (ORANGE)
  • 1
    1015508-517 FRAME, MAIN (YELLOW)
    FRAME, MAIN (YELLOW)
  • 1
    1015508-520 FRAME, MAIN (RED)
    FRAME, MAIN (RED)
  • 1
    1015508-445 FRAME, MAIN (SILVER)
    FRAME, MAIN (SILVER)
  • 2
    7547039 NUT
    NUT
  • 3
    1014863 STAND, SIDE (INCL. 2,4-6,9)
    STAND, SIDE (INCL. 2,4-6,9)
  • 4
    7556121 WASHER, FLAT
    WASHER, FLAT
  • 5
    5412662 PAD, SIDE STAND
    PAD, SIDE STAND
  • 6
    7661064 RIVET
    RIVET
  • 7
    7043056 SPRING, SIDE STAND
    SPRING, SIDE STAND
  • 8
    5135262-266 CRADLE, LEFT HAND (BLACK)
    CRADLE, LEFT HAND (BLACK)
  • 8
    5135262-445 CRADLE, LEFT HAND (SILVER)
    CRADLE, LEFT HAND (SILVER)
  • 8
    5135262-352 CRADLE, LEFT HAND (WHITE)
    CRADLE, LEFT HAND (WHITE)
  • 8
    5135262-520 CRADLE, LEFT HAND (RED)
    CRADLE, LEFT HAND (RED)
  • 8
    5135262-516 CRADLE, LEFT HAND (ORANGE)
    CRADLE, LEFT HAND (ORANGE)
  • 8
    5135262-517 CRADLE, LEFT HAND (YELLOW)
    CRADLE, LEFT HAND (YELLOW)
  • 9
    7517404 SCREW
    SCREW
  • 10
    1015510-266 CRADLE, RIGHT HAND (BLACK)
    CRADLE, RIGHT HAND (BLACK)
  • 10
    1015510-352 CRADLE, RIGHT HAND (WHITE)
    CRADLE, RIGHT HAND (WHITE)
  • 10
    1015510-445 CRADLE, RIGHT HAND (SILVER)
    CRADLE, RIGHT HAND (SILVER)
  • 10
    1015510-516 CRADLE, RIGHT HAND (ORANGE)
    CRADLE, RIGHT HAND (ORANGE)
  • 10
    1015510-517 CRADLE, RIGHT HAND (YELLOW)
    CRADLE, RIGHT HAND (YELLOW)
  • 10
    1015510-520 CRADLE, RIGHT HAND (RED)
    CRADLE, RIGHT HAND (RED)
