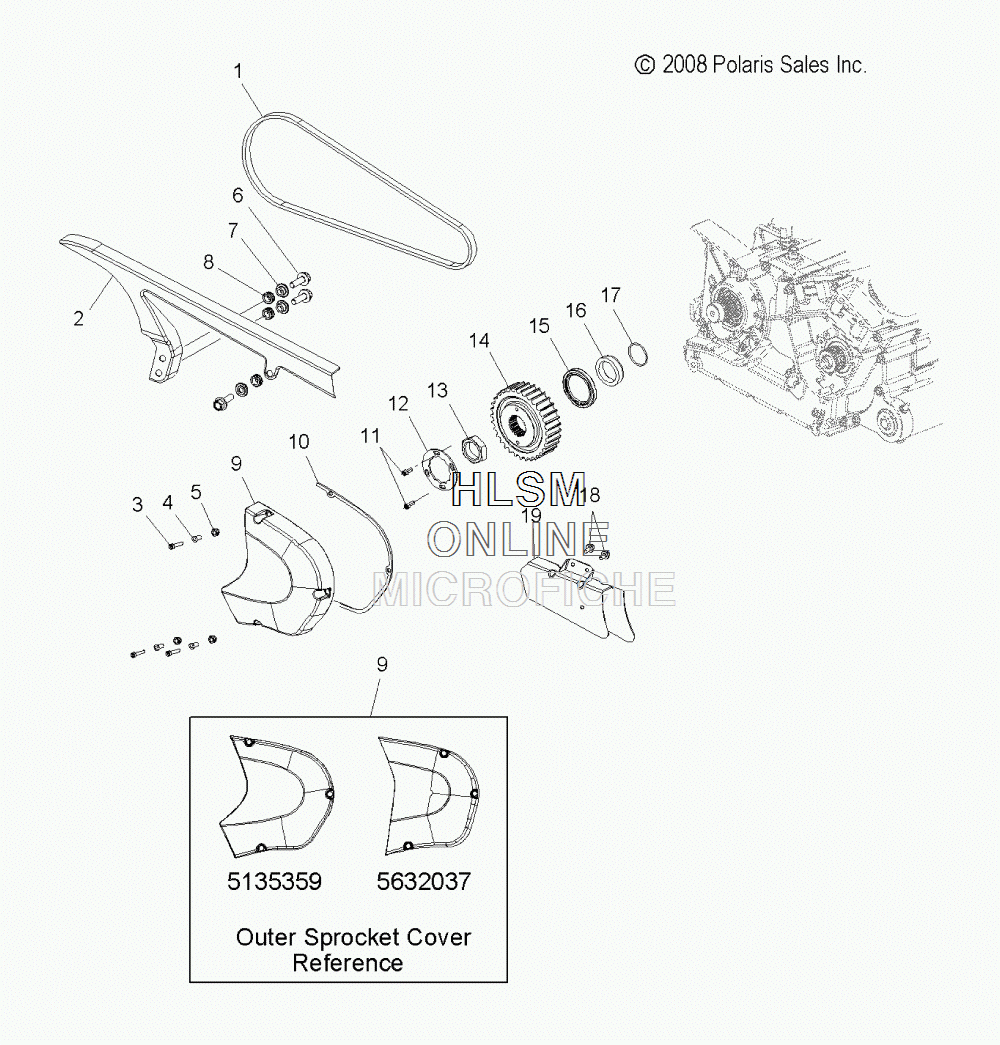

DRIVE SPROCKET- FRONT для Polaris VEGAS (CALIFORNIA) [V07GB26LA] - 2007 года выпуска`
-
№АртикулНазвание
-
13211102 BELT, DRIVEBELT, DRIVE
-
25247719-156 GUARD, BELT, UPPER, CHROMEGUARD, BELT, UPPER, CHROME
-
37517301 SCREWSCREW
-
47661156 SPACERSPACER
-
55412070 ISOLATORISOLATOR
-
67518141 SCREWSCREW
-
75134082 SLEEVESLEEVE
-
85412265 GROMMETGROMMET
-
95135359-156 COVER, SPROCKET, CHROMECOVER, SPROCKET, CHROME
-
95632037-156 COVER, OUTPUT SPROCKET, 180, CHROME (FOR CRANKCASE 1204109)COVER, OUTPUT SPROCKET, 180, CHROME (FOR CRANKCASE 1204109)
-
95632037-521 COVER, OUTPUT SPROCKET, 180, BLACK (FOR CRANKCASE 1204108)COVER, OUTPUT SPROCKET, 180, BLACK (FOR CRANKCASE 1204108)
-
105412528 GASKET, SPROCKET COVER (FOR COVER 5135359)GASKET, SPROCKET COVER (FOR COVER 5135359)
-
105413347 GASKET, SPROCKET COVER (FOR COVER 5632037)GASKET, SPROCKET COVER (FOR COVER 5632037)
-
117517272 SCREWSCREW
-
125244114 WASHER, LOCK, PLATEWASHER, LOCK, PLATE
-
137547311 NUTNUT
-
145134973 SPROCKET, DRIVE, 33TSPROCKET, DRIVE, 33T
-
153610118 SEALSEAL
-
165134974 SLEEVE, SEALSLEEVE, SEAL
-
175412819 O-RINGO-RING
-
187517704 SCREWSCREW
-
191014583 GUARD, BELT, LOWERGUARD, BELT, LOWER
