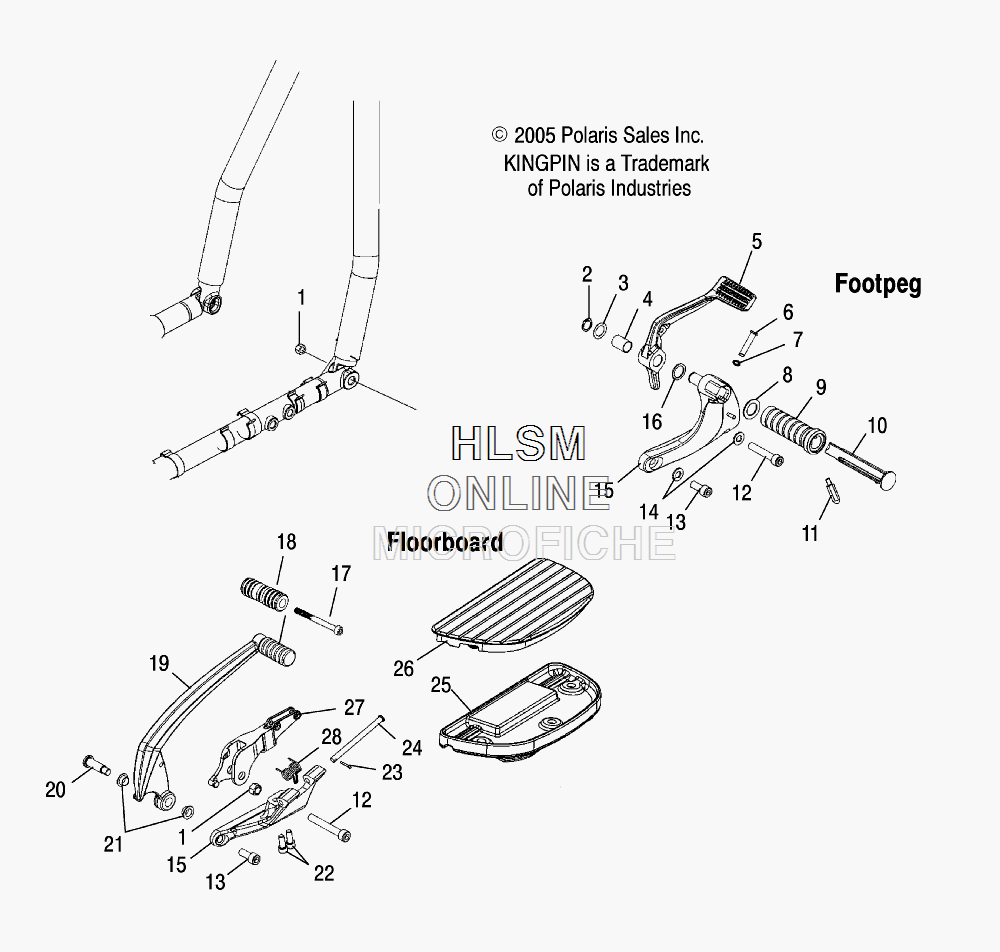

FOOTPEG- R.H./FLOORBOARD- R.H./BRAKE для Polaris KINGPIN (49 STATE) [V07CB26DA] - 2007 года выпуска`
-
№АртикулНазвание
-
17547039 NUTNUT
-
27710499 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
37556075 WASHER, FLATWASHER, FLAT
-
43514335 BEARING, SHIFT PEDALBEARING, SHIFT PEDAL
-
55134683-385 PAD, SHIFT PEDALPAD, SHIFT PEDAL
-
67661167 PIN, PIVOTPIN, PIVOT
-
77710545 RING, RETAININGRING, RETAINING
-
87556241 WASHER, FLATWASHER, FLAT
-
95412256 PAD, FOOTPEGPAD, FOOTPEG
-
105136036-411 FOOTPEG, BRU, RIGHT HANDFOOTPEG, BRU, RIGHT HAND
-
115133539 FEELER, FOOTPEGFEELER, FOOTPEG
-
127518146 SCREWSCREW
-
137518101 SCREWSCREW
-
147556234 WASHER, FLATWASHER, FLAT
-
155134681-385 SUPPORT, FOOTPEG, SILVER, RIGHT HANDSUPPORT, FOOTPEG, SILVER, RIGHT HAND
-
155134623-385 SUPPORT, FLOORBOARD, RIGHT HANDSUPPORT, FLOORBOARD, RIGHT HAND
-
167556273 WASHER, WAVEWASHER, WAVE
-
177518420 SCREWSCREW
-
185412256 PAD, FOOTPEGPAD, FOOTPEG
-
195134178-410 PEDAL, BRAKE LEVERPEDAL, BRAKE LEVER
-
207517715 SCREW, BRAKE PIVOTSCREW, BRAKE PIVOT
-
215020904 BUSHING, PEDALBUSHING, PEDAL
-
227517410 SCREWSCREW
-
237661094 PIN, COTTERPIN, COTTER
-
247661095 PIN, FLOORBOARD SUPPORTPIN, FLOORBOARD SUPPORT
-
255135631-425 FLOORBOARD, DRIVER, BURFLOORBOARD, DRIVER, BUR
-
265412456 PAD, FLOORBOARDPAD, FLOORBOARD
-
275134199-385 SUPPORT, BRAKE PEDALSUPPORT, BRAKE PEDAL
-
287041623 SPRING, FLOORBOARD SUPPORTSPRING, FLOORBOARD SUPPORT
