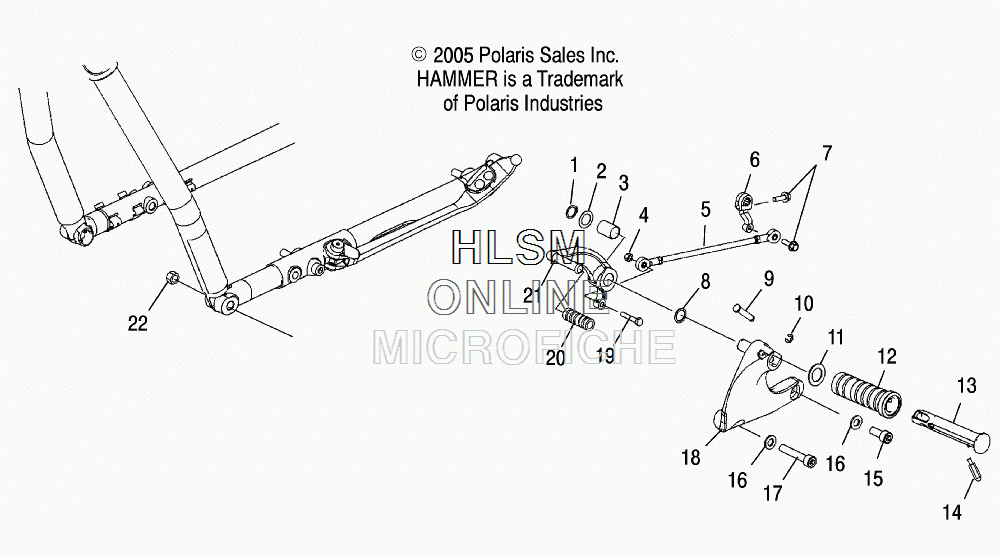

FOOTPEG- L.H./SHIFTER для Polaris HAMMER (CANADA) [V07HB26CA] - 2007 года выпуска`
-
№АртикулНазвание
-
17710499 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
27556075 WASHER, FLATWASHER, FLAT
-
33514490 BUSHING, FOOT PEDALBUSHING, FOOT PEDAL
-
47547230 NUTNUT
-
51013957 ASM., SHIFTER LINKAGEASM., SHIFTER LINKAGE
-
65133530 LEVER, SHIFTERLEVER, SHIFTER
-
77518141 SCREWSCREW
-
87556273 WASHER, WAVEWASHER, WAVE
-
97661167 PIN, PIVOTPIN, PIVOT
-
107710545 RING, RETAININGRING, RETAINING
-
117556241 WASHER, FLATWASHER, FLAT
-
125412256 PAD, FOOTPEGPAD, FOOTPEG
-
135135627-411 FOOTPEG, LEFT HAND, BRUFOOTPEG, LEFT HAND, BRU
-
145133539 FEELER, FOOTPEGFEELER, FOOTPEG
-
157518101 SCREWSCREW
-
167556234 WASHER, FLATWASHER, FLAT
-
177518146 SCREWSCREW
-
185134680-385 SUPPORT, FOOTPEG, SILVER, LEFT HANDSUPPORT, FOOTPEG, SILVER, LEFT HAND
-
185134680-463 SUPPORT, FOOTPEG, FLAT BLACK, LEFT HANDSUPPORT, FOOTPEG, FLAT BLACK, LEFT HAND
-
197518147 SCREWSCREW
-
205411364 PAD, SHIFT PEDALPAD, SHIFT PEDAL
-
215134682-385 PEDAL, SHIFT, SILVERPEDAL, SHIFT, SILVER
-
215134682-463 PEDAL, SHIFT, FLAT BLACKPEDAL, SHIFT, FLAT BLACK
-
227547039 NUTNUT
