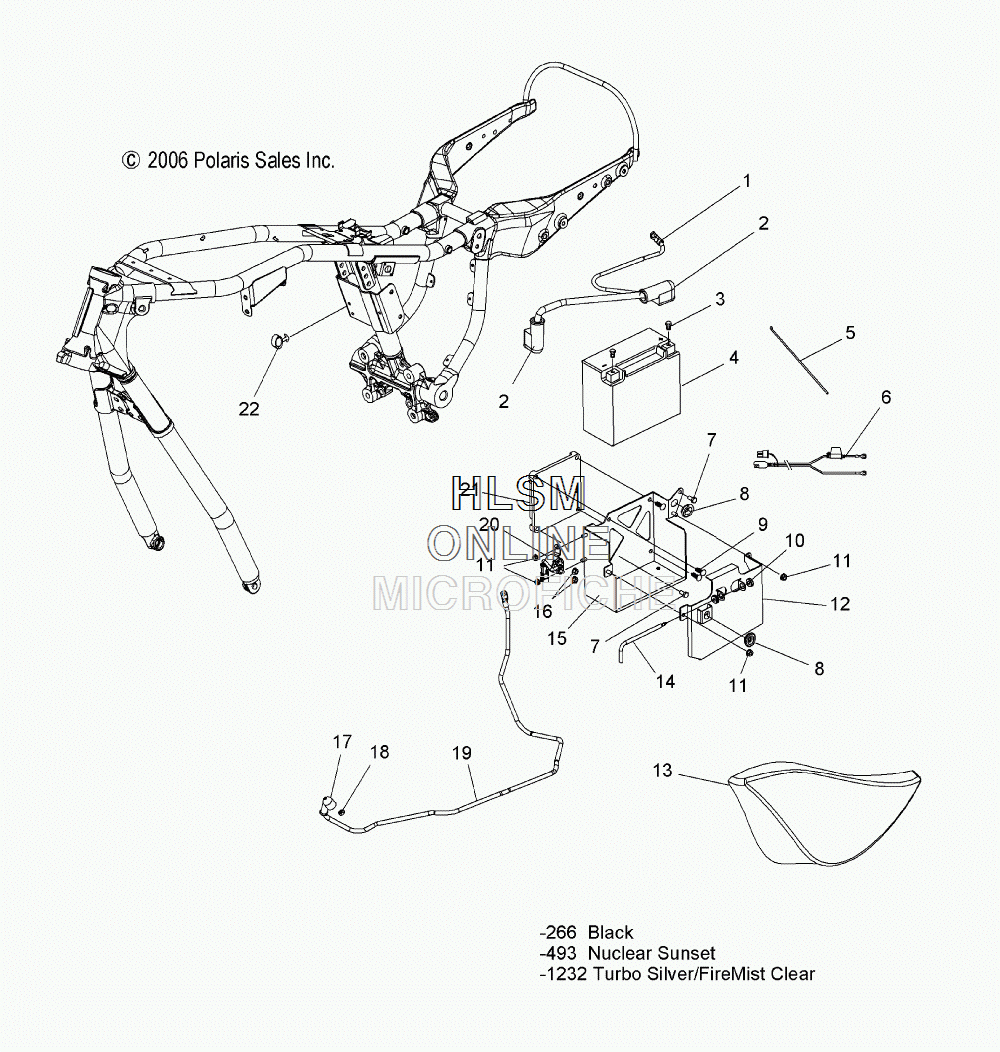

ECM/BATTERY BOX/SIDE COVER- LH для Polaris HAMMER (CALIFORNIA) [V07HB26LA] - 2007 года выпуска`
-
№АртикулНазвание
-
12410895 CABLE, BATTERY, POSITIVECABLE, BATTERY, POSITIVE
-
25411570 BOOT, BATTERY CABLE, RED POSITIVEBOOT, BATTERY CABLE, RED POSITIVE
-
32201357 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
44011374 BATTERY, SEALED (INCL. 6)BATTERY, SEALED (INCL. 6)
-
57080138 STRAP (8 INCH)STRAP (8 INCH)
-
62461006 HARNESS, CHARGINGHARNESS, CHARGING
-
77517438 SCREWSCREW
-
85433833 GROMMET, SIDE COVERGROMMET, SIDE COVER
-
97670141 CLIP, PLASTICCLIP, PLASTIC
-
105412322 GROMMETGROMMET
-
117710495 NUTNUT
-
121014512 COVER, BATTERY BOXCOVER, BATTERY BOX
-
135435285-266 COVER, SIDE, LEFT HAND (BLACK)COVER, SIDE, LEFT HAND (BLACK)
-
135435285-493 COVER, SIDE, LEFT HAND (INDY RED)COVER, SIDE, LEFT HAND (INDY RED)
-
135435285-1232 COVER, SIDE, LEFT HAND (NUC. SS/TATTOO)COVER, SIDE, LEFT HAND (NUC. SS/TATTOO)
-
145334438 WRENCH, CRUISER, PHILLIPSWRENCH, CRUISER, PHILLIPS
-
151014477-067 BOX, BATTERYBOX, BATTERY
-
155810290 PAD, BATTERYPAD, BATTERY
-
167547270 NUTNUT
-
175412343 BOOT, TERMINAL INSULATOR, BLACKBOOT, TERMINAL INSULATOR, BLACK
-
187547091 NUT, FLEXLOCNUT, FLEXLOC
-
192460894 CABLE, STARTERCABLE, STARTER
-
214011099 ECM, PROGRAMMED (SEE NOTE)ECM, PROGRAMMED (SEE NOTE)
-
227080756 CLIP, SNAP-INCLIP, SNAP-IN
