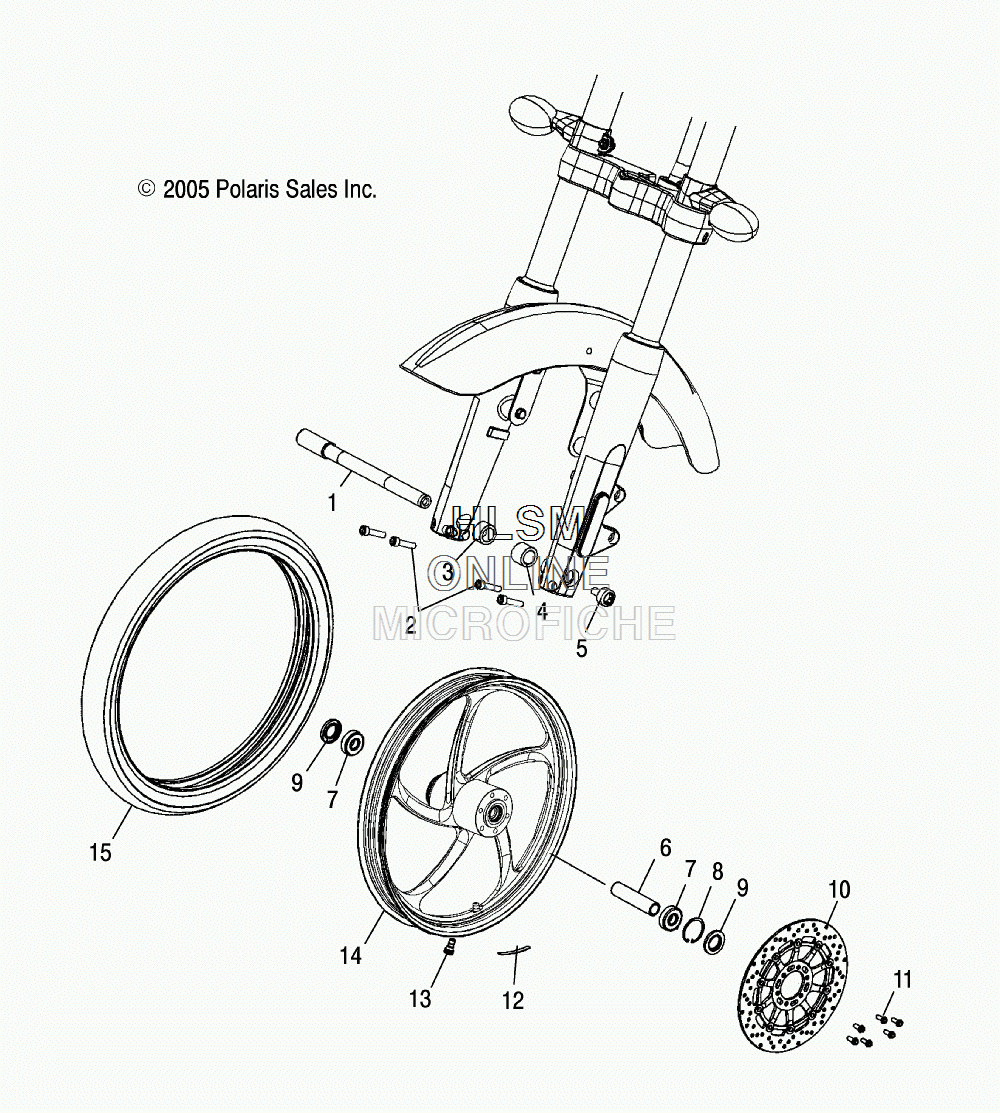

WHEEL- FRONT (BILLET) для Polaris VICTORY VEGAS 8-BALL (CALIFORNIA) [V06AB26LA] - 2006 года выпуска
-
№АртикулНазвание
-
15133593 AXLE, FRONTAXLE, FRONT
-
27517517 SCREWSCREW
-
35631479 SPACER, BEARING, LEFT HANDSPACER, BEARING, LEFT HAND
-
45631481 SPACER, BEARING, LEFT HANDSPACER, BEARING, LEFT HAND
-
57517936 SCREWSCREW
-
65334135 SPACERSPACER
-
73514405 BEARING, BALLBEARING, BALL
-
87710526 RING, RETAININGRING, RETAINING
-
93610094 SEALSEAL
-
101910623 ROTOR, BRAKEROTOR, BRAKE
-
117518297 SCREWSCREW
-
121520618 WEIGHT, BALANCEWEIGHT, BALANCE
-
131520995 VALVE, RIMVALVE, RIM
-
141520682 ASM., WHEEL, FRONT (VEGAS) (INCL. 6-9,13)ASM., WHEEL, FRONT (VEGAS) (INCL. 6-9,13)
-
155412263 TIRE, FRONTTIRE, FRONT
