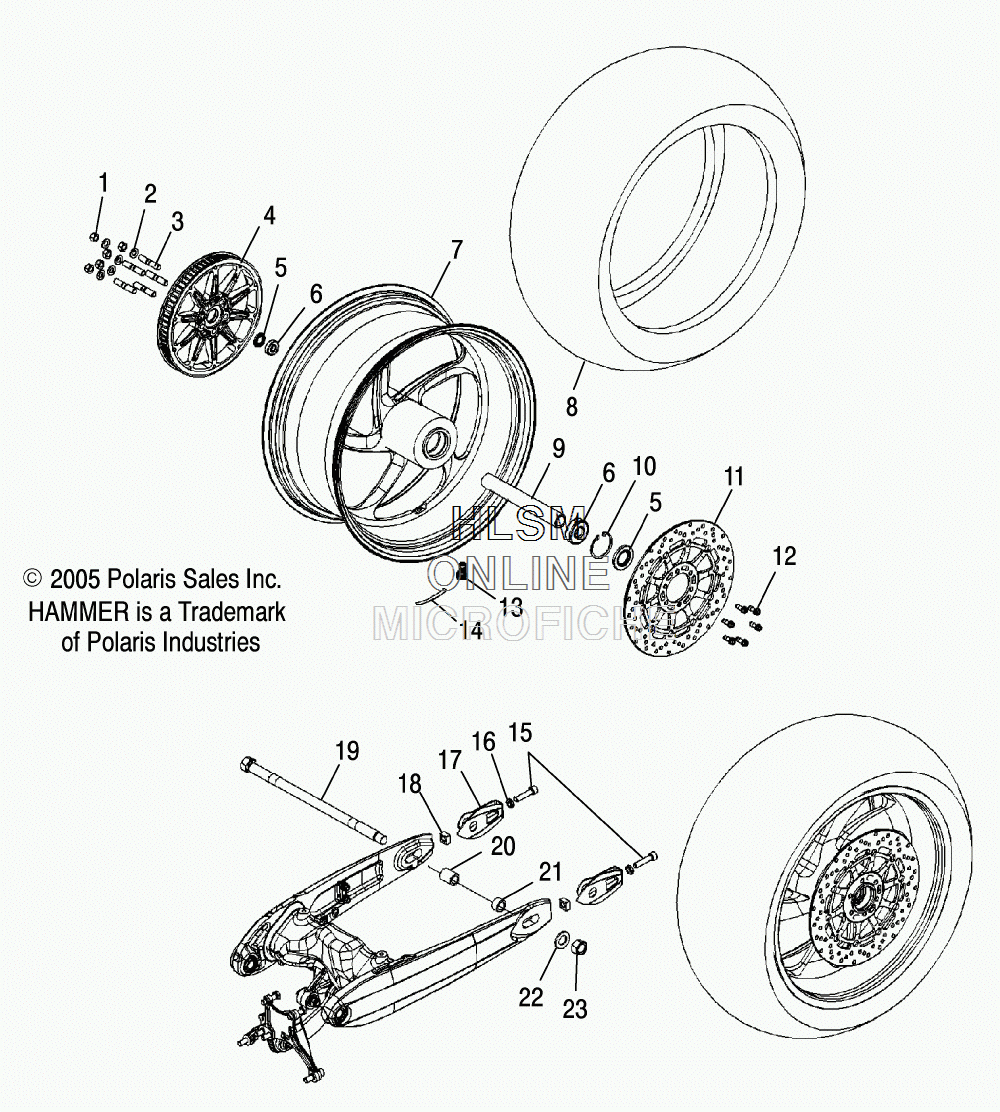

WHEEL- REAR (BILLET) для Polaris VICTORY HAMMER (CALIFORNIA) [V06HB26LA] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7547232 NUT
    NUT
  • 2
    7556287 WASHER, FLAT
    WASHER, FLAT
  • 3
    7518311 STUD
    STUD
  • 4
    1332399-385 ASM., SPROCKET, DRIVEN, 70T, SILVER
    ASM., SPROCKET, DRIVEN, 70T, SILVER
  • 5
    3610094 SEAL
    SEAL
  • 6
    3514405 BEARING, BALL
    BEARING, BALL
  • 7
    1520721 ASM., WHEEL, BILLET, REAR (INCL. 5-10,13,14)
    ASM., WHEEL, BILLET, REAR (INCL. 5-10,13,14)
  • 8
    5412522 TIRE, REAR
    TIRE, REAR
  • 9
    5334450 SPACER, BEARING
    SPACER, BEARING
  • 10
    7710526 RING, RETAINING
    RING, RETAINING
  • 11
    1910623 ROTOR, BRAKE, FLOATING
    ROTOR, BRAKE, FLOATING
  • 12
    7518297 SCREW
    SCREW
  • 13
    1520995 VALVE, RIM
    VALVE, RIM
  • 14
    1520618 WEIGHT, BALANCE
    WEIGHT, BALANCE
  • 15
    7518485 SCREW
    SCREW
  • 16
    7547284 NUT
    NUT
  • 17
    5247599 BRACKET, AXLE, ADJUST
    BRACKET, AXLE, ADJUST
  • 18
    5134437 NUT
    NUT
  • 19
    1014584 SPINDLE
    SPINDLE
  • 20
    5631581 SPACER, RIGHT HAND
    SPACER, RIGHT HAND
  • 21
    5631479 SPACER, BEARING, LEFT HAND
    SPACER, BEARING, LEFT HAND
  • 22
    7550001 WASHER, FLAT
    WASHER, FLAT
  • 23
    7547226 NUT, HEX, FUJILOK
    NUT, HEX, FUJILOK
