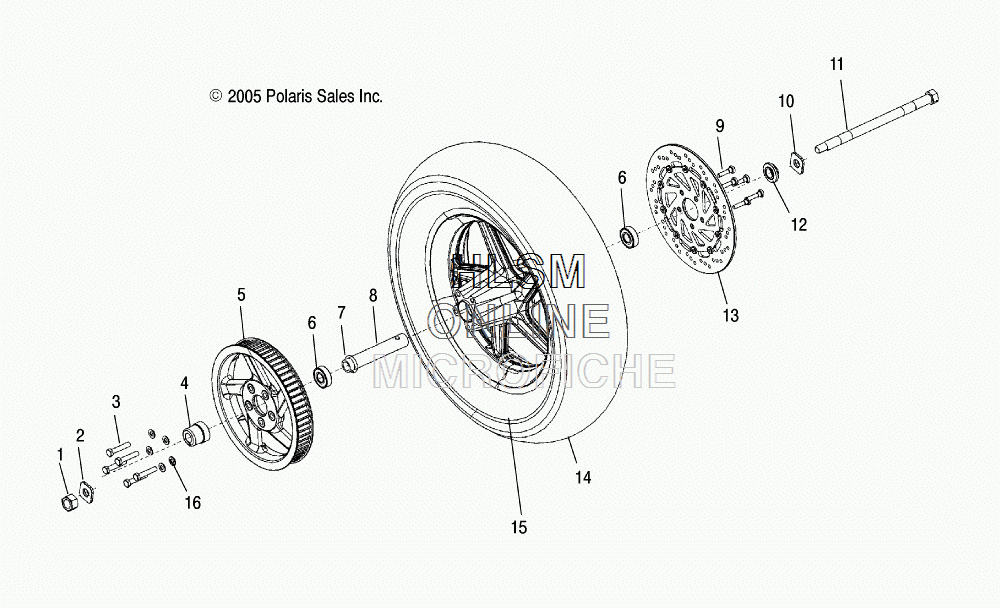

WHEEL- REAR (CAST) для Polaris TOURING CRUISER (CANADA) [V06TB16CA] - 2006 года выпуска
-
№АртикулНазвание
-
17547226 NUT, HEXNUT, HEX
-
25245087-408 WASHER, INDICATOR, AXLE (LEFT HAND)WASHER, INDICATOR, AXLE (LEFT HAND)
-
37518044 SCREWSCREW
-
45132624 SPACER, REAR WHEEL, RIGHT HANDSPACER, REAR WHEEL, RIGHT HAND
-
51341378 ASM., SPROCKET, DRIVEN, 64T, SILVERASM., SPROCKET, DRIVEN, 64T, SILVER
-
63513509 BEARING, BALLBEARING, BALL
-
75411820 O-RINGO-RING
-
85132314 SPACER, BEARING, REAR WHEEL, MIDDLESPACER, BEARING, REAR WHEEL, MIDDLE
-
97517978 SCREWSCREW
-
105245088-408 WASHER, INDICATOR, AXLE, RIGHT HANDWASHER, INDICATOR, AXLE, RIGHT HAND
-
111014641 AXLE, REARAXLE, REAR
-
125010429 SPACER, AXLE, REAR DRIVE, LEFT HANDSPACER, AXLE, REAR DRIVE, LEFT HAND
-
131910498 ROTOR, BRAKE, FLOATING, REARROTOR, BRAKE, FLOATING, REAR
-
145411970 TIRE, REARTIRE, REAR
-
155132635 WHEEL, REARWHEEL, REAR
-
151520232 VALVE, RIMVALVE, RIM
-
151520618 WEIGHT, BALANCE, 1/4 OZ.WEIGHT, BALANCE, 1/4 OZ.
-
167556234 WASHER, FLATWASHER, FLAT
