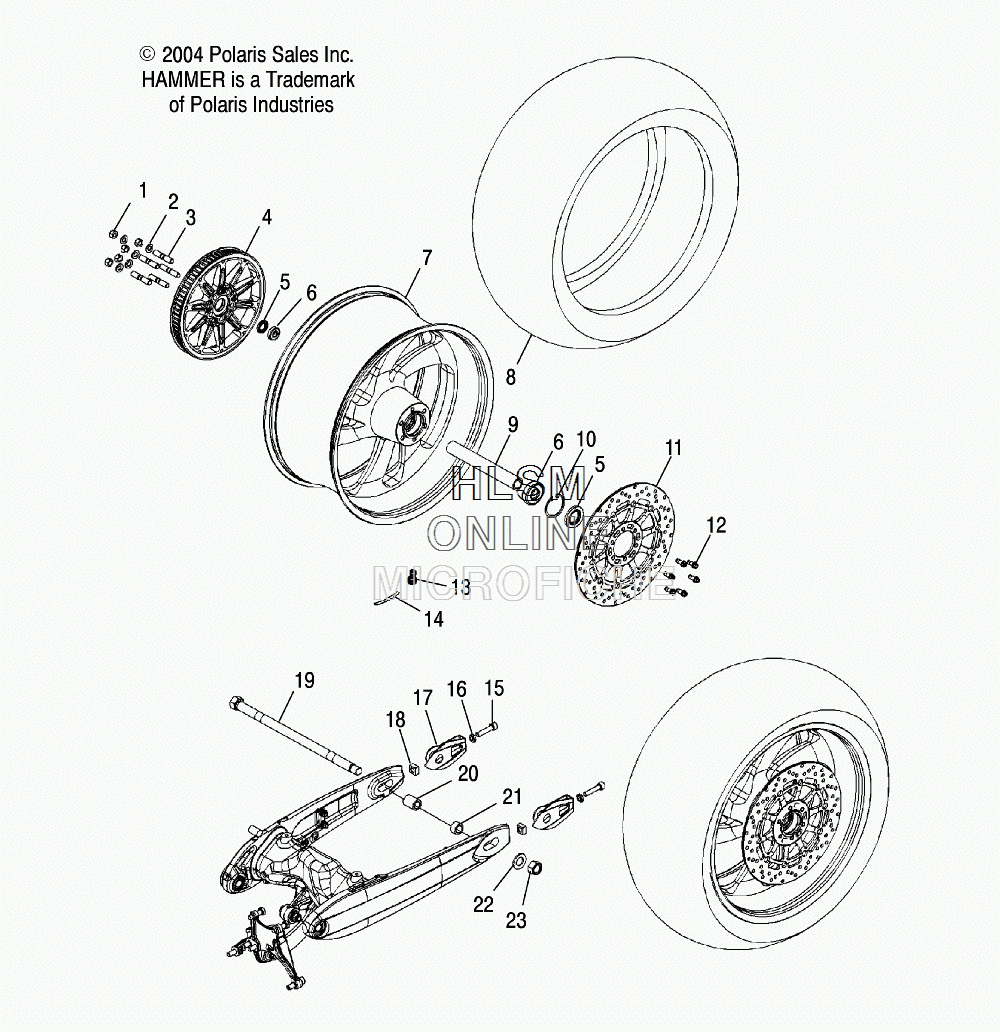

REAR WHEEL (CAST) для Polaris VICTORY HAMMER (CANADA) [V05HB26CA] - 2005 года выпуска`
-
№АртикулНазвание
-
17547232 NUTNUT
-
27556287 WASHER, FLATWASHER, FLAT
-
37518311 STUDSTUD
-
41341504-385 ASM., SPROCKET, DRIVEN, 70T (SILVER)ASM., SPROCKET, DRIVEN, 70T (SILVER)
-
53610094 SEALSEAL
-
63514405 BEARING, BALLBEARING, BALL
-
71520864 ASM., WHEEL, CAST, REAR (INCL. 5-7,9,10,13,14)ASM., WHEEL, CAST, REAR (INCL. 5-7,9,10,13,14)
-
85412522 TIRE, REARTIRE, REAR
-
95334138 SPACERSPACER
-
107710526 RING, RETAININGRING, RETAINING
-
111910623 ROTOR, BRAKE, FLOATINGROTOR, BRAKE, FLOATING
-
127518297 SCREWSCREW
-
131520618 WEIGHT, BALANCEWEIGHT, BALANCE
-
141520232 VALVE, RIMVALVE, RIM
-
157518485 SCREWSCREW
-
167547284 NUTNUT
-
175247599 BRACKET, AXLE, ADJUSTBRACKET, AXLE, ADJUST
-
185134437 NUTNUT
-
191014584 SPINDLESPINDLE
-
205631581 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
215631479 SPACER, BEARING, LEFT HANDSPACER, BEARING, LEFT HAND
-
227550001 WASHER, FLATWASHER, FLAT
-
237547266 NUT, HEXNUT, HEX
