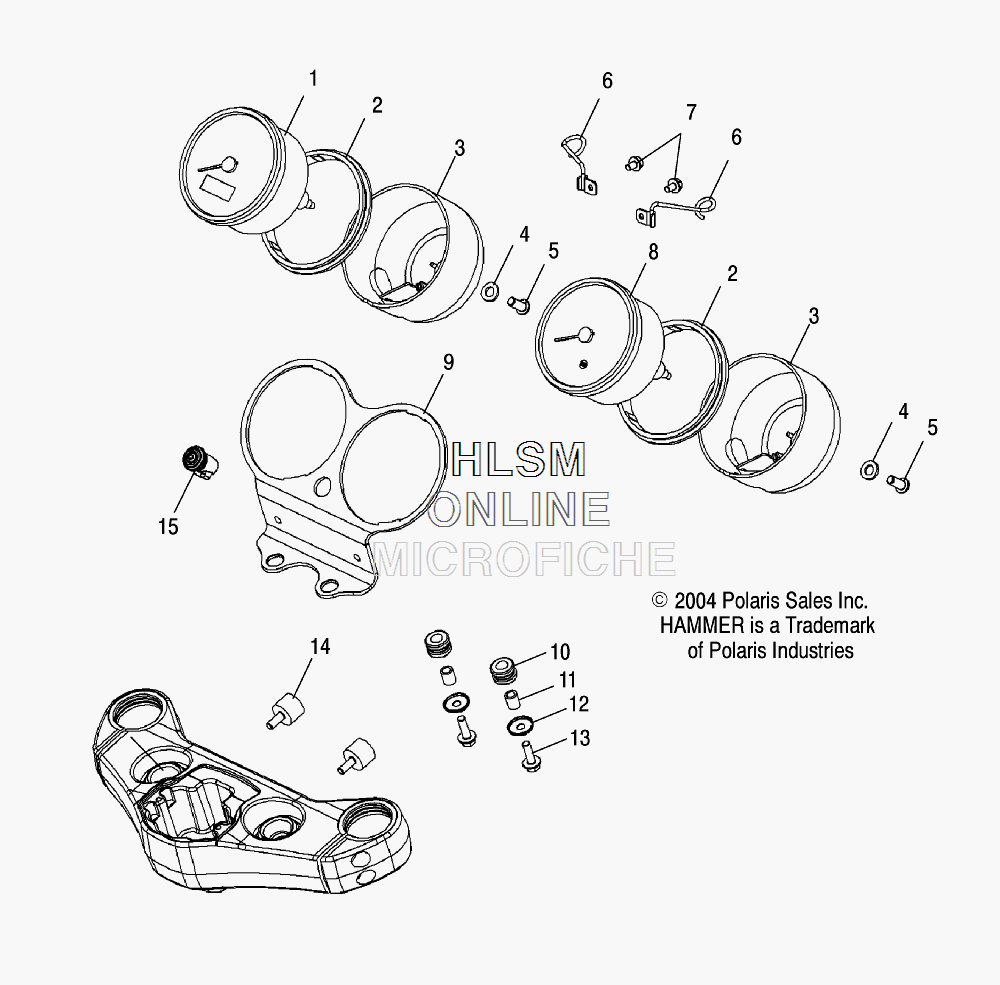

SPEEDOMETER для Polaris VICTORY HAMMER (CALIFORNIA) [V05HB26LA] - 2005 года выпуска
-
№АртикулНазвание
-
13280454 SPEEDOMETER (MPH)SPEEDOMETER (MPH)
-
14030050 BULB, DASHBULB, DASH
-
25412252 GASKET, CUSHION RUBBERGASKET, CUSHION RUBBER
-
35246298 COVER, TACHOMETERCOVER, TACHOMETER
-
47556088 WASHERWASHER
-
57517933 SCREWSCREW
-
61014061-067 LOOM, WIRE, DUAL GAUGE, LEFT HANDLOOM, WIRE, DUAL GAUGE, LEFT HAND
-
61014062-067 LOOM, WIRE, DUAL GAUGE, RIGHT HANDLOOM, WIRE, DUAL GAUGE, RIGHT HAND
-
77518140 SCREWSCREW
-
83280456 TACHOMETERTACHOMETER
-
84030052 BULB, SERVICEBULB, SERVICE
-
95247622 BRACKET SPEEDO/TACH W/SWITCHBRACKET SPEEDO/TACH W/SWITCH
-
105412201 GROMMETGROMMET
-
115133550 SLEEVESLEEVE
-
127556239 WASHER, CUPWASHER, CUP
-
137518141 SCREWSCREW
-
145412297 MOUNT, ISOLATORMOUNT, ISOLATOR
-
154010975 SWITCH, RESET, SPEEDOSWITCH, RESET, SPEEDO
-
154011194 COVER, RESET SWITCHCOVER, RESET SWITCH
