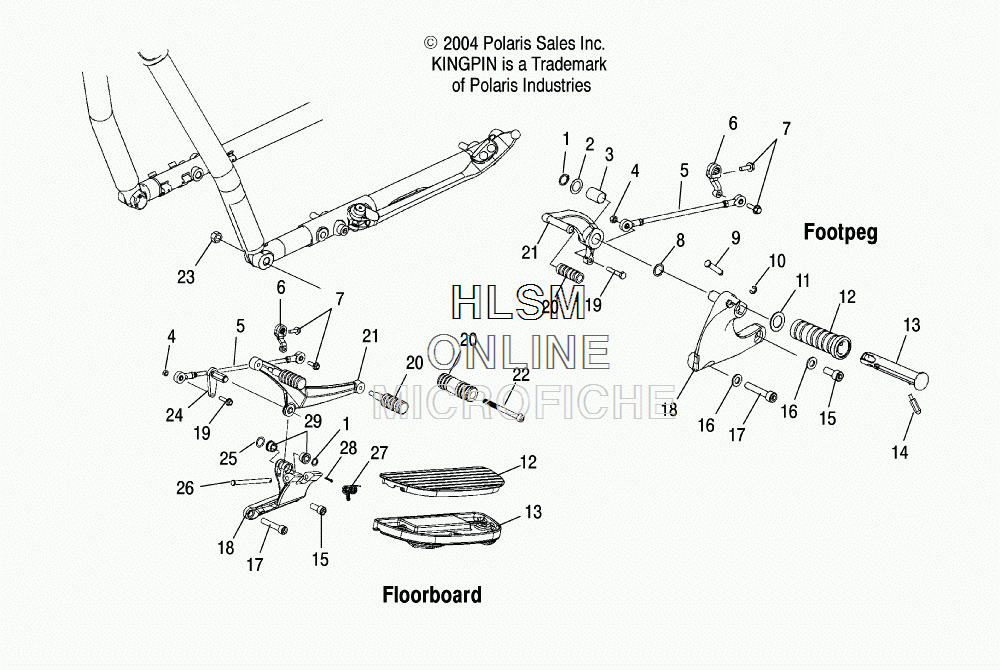

L.H. FOOTPEG/FLOORBOARD/SHIFTER для Polaris KINGPIN (49 STATE) [V05CB16DA] - 2005 года выпуска
-
№АртикулНазвание
-
17710499 RING, RETAINING, EXTERNAL (FOOTPEG)RING, RETAINING, EXTERNAL (FOOTPEG)
-
17710508 RING, RETAINING, EXTERNAL (FLOORBOARD)RING, RETAINING, EXTERNAL (FLOORBOARD)
-
27556075 WASHER, FLATWASHER, FLAT
-
33514335 BEARING, SHIFT PEDALBEARING, SHIFT PEDAL
-
47547230 NUTNUT
-
51013957 ASM., SHIFTER LINKAGE (FOOTPEG)ASM., SHIFTER LINKAGE (FOOTPEG)
-
51014246 ASM., SHIFTER LINKAGE (FLOORBOARD)ASM., SHIFTER LINKAGE (FLOORBOARD)
-
65133530 LEVER, SHIFTERLEVER, SHIFTER
-
77518141 SCREWSCREW
-
87556273 WASHER, WAVEWASHER, WAVE
-
97661167 PIN, PIVOTPIN, PIVOT
-
107710545 RING, RETAININGRING, RETAINING
-
117556241 WASHER, FLATWASHER, FLAT
-
125412256 PAD, FOOTPEGPAD, FOOTPEG
-
125412456 PAD, FLOORBOARD, DRIVERPAD, FLOORBOARD, DRIVER
-
135133540-411 FOOTPEG, CC, LEFT HANDFOOTPEG, CC, LEFT HAND
-
135134061-156 FLOORBOARD, DRIVER (NESS)FLOORBOARD, DRIVER (NESS)
-
145133539 FEELER, FOOTPEGFEELER, FOOTPEG
-
157518101 SCREWSCREW
-
167556234 WASHER, FLATWASHER, FLAT
-
177518146 SCREWSCREW
-
185133527-385 SUPPORT, FOOTPEG, SILVER, LEFT HANDSUPPORT, FOOTPEG, SILVER, LEFT HAND
-
185133527-067 SUPPORT, FOOTPEG, BLACK, LEFT HANDSUPPORT, FOOTPEG, BLACK, LEFT HAND
-
185133863-385 SUPPORT, FLOORBOARD, SILVER, LEFT HANDSUPPORT, FLOORBOARD, SILVER, LEFT HAND
-
185133863-067 SUPPORT, FLOORBOARD, BLACK, LEFT HANDSUPPORT, FLOORBOARD, BLACK, LEFT HAND
-
197518147 SCREW (FOOTPEG)SCREW (FOOTPEG)
-
197518329 SCREW (FLOORBOARD)SCREW (FLOORBOARD)
-
205411364 PAD, SHIFT PEDAL (FOOTPEG)PAD, SHIFT PEDAL (FOOTPEG)
-
205412493 PAD, SHIFTER (FLOORBOARD)PAD, SHIFTER (FLOORBOARD)
-
205412651 PEG, SHIFTER, BRAKE (NESS)PEG, SHIFTER, BRAKE (NESS)
-
215133528-385 PEDAL, SHIFT LEVER, SILVER (FOOTPEG)PEDAL, SHIFT LEVER, SILVER (FOOTPEG)
-
215133528-156 PEDAL, SHIFT LEVER, CHROME (FOOTPEG)PEDAL, SHIFT LEVER, CHROME (FOOTPEG)
-
215134179-410 PEDAL, SHIFTER LEVER (FLOORBOARD)PEDAL, SHIFTER LEVER (FLOORBOARD)
-
215134179-156 PEDAL, SHIFTER LEVER, CHROME (NESS)PEDAL, SHIFTER LEVER, CHROME (NESS)
-
227518420 SCREW (NESS)SCREW (NESS)
-
237547039 NUTNUT
-
241014589 SHAFT, SHIFT LEVERSHAFT, SHIFT LEVER
-
257556322 WASHER, WAVEWASHER, WAVE
-
267661095 PIN, FLOORBOARD SUPPORTPIN, FLOORBOARD SUPPORT
-
277041623 SPRING, SUPPORT, FLOORBOARDSPRING, SUPPORT, FLOORBOARD
-
287661094 PIN, COTTERPIN, COTTER
-
293514470 BUSHING, SHIFT, REARBUSHING, SHIFT, REAR
