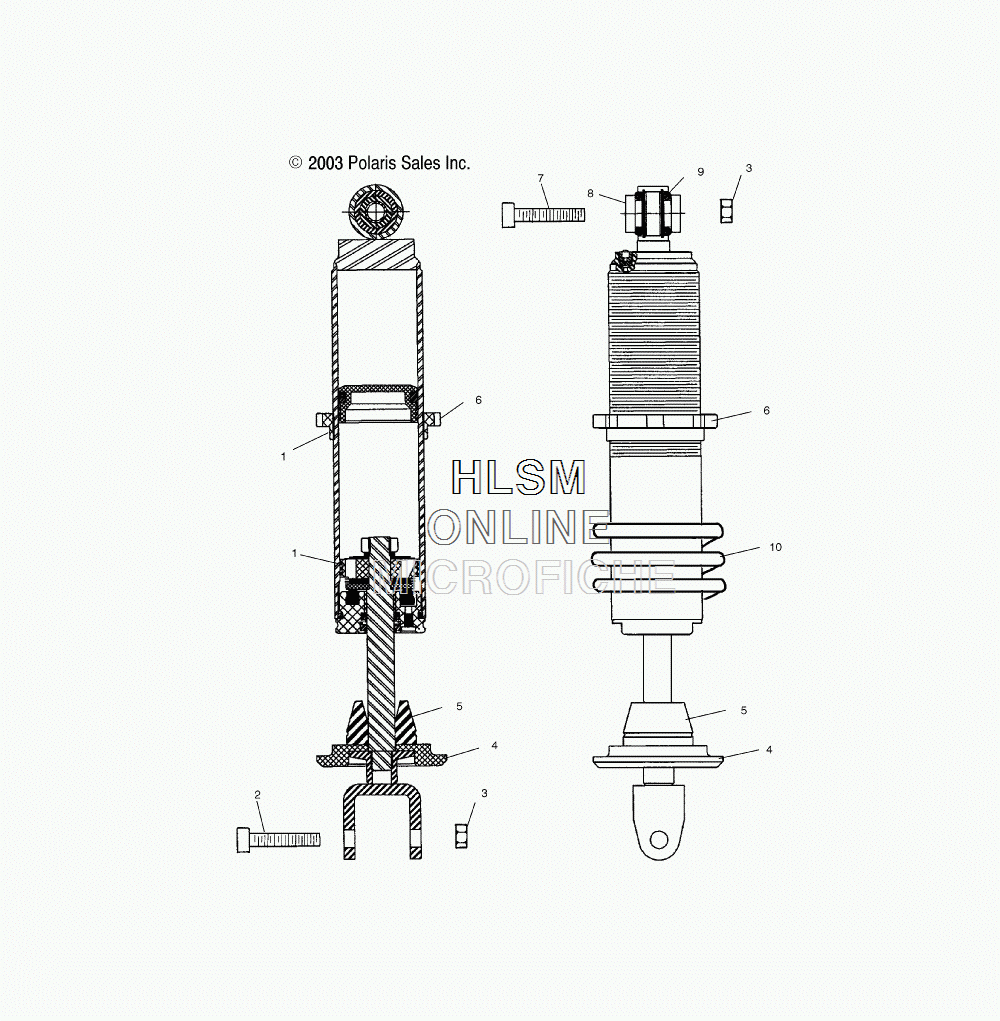

REAR SHOCK для Polaris TOURING CRUISER (49 STATE) [V04TB16DA] - 2004 года выпуска`
-
№АртикулНазвание
-
11500230 BEARING, STEP CUTBEARING, STEP CUT
-
27517988 SCREWSCREW
-
37547122 NUTNUT
-
41500466 RETAINER, SPRINGRETAINER, SPRING
-
55412519 BUMPER, JOUNCEBUMPER, JOUNCE
-
61500462 RING, SPRING PRELOADRING, SPRING PRELOAD
-
77517962 SCREWSCREW
-
81500173 REDUCERREDUCER
-
91500093 O-RINGO-RING
-
107042289 SPRING, COMPRESSIONSPRING, COMPRESSION
-
107042290 SHOCKSHOCK
-
101541957 ASM., SHOCK, REARASM., SHOCK, REAR
