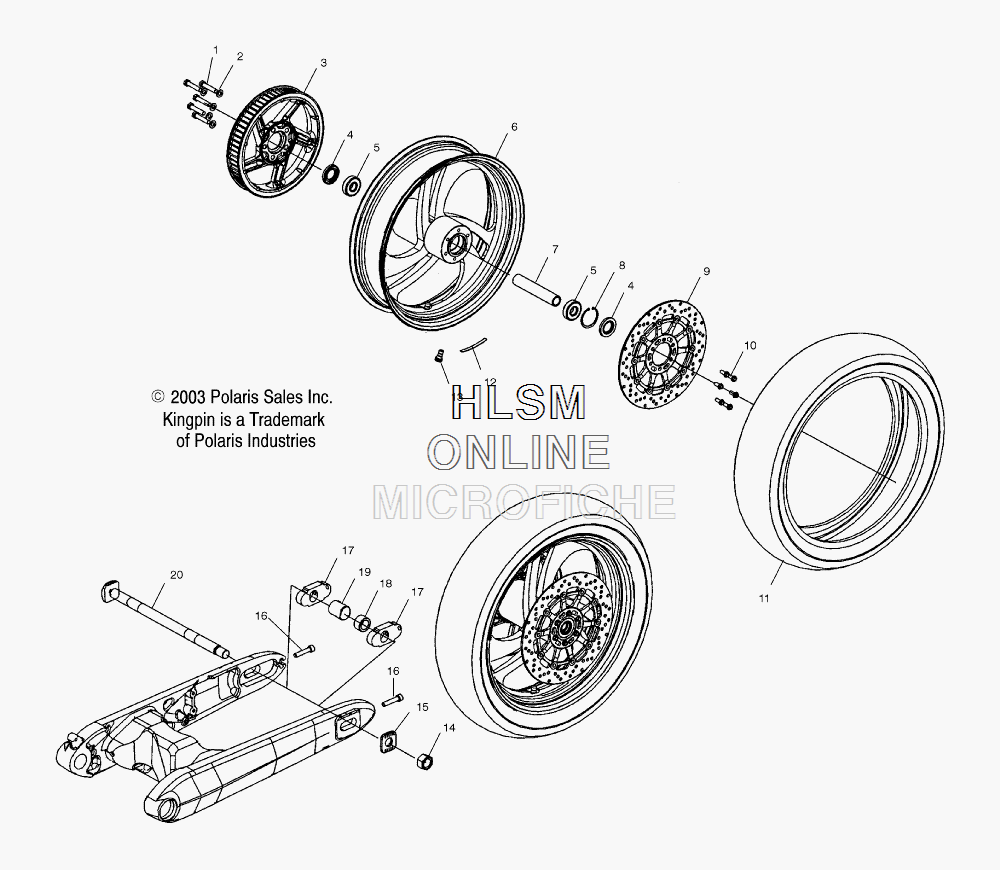

REAR WHEEL (CAST) для Polaris KINGPIN (CALIFORNIA) [V04CB16LA] - 2004 года выпуска
-
№АртикулНазвание
-
17518044 SCREWSCREW
-
27556234 WASHER, FLATWASHER, FLAT
-
31341448 ASM., SPROCKET, 64TASM., SPROCKET, 64T
-
43610094 SEALSEAL
-
53514405 BEARING, BALLBEARING, BALL
-
61520632 ASM., WHEEL, CAST, REAR (INCL. 4-8,12,13)ASM., WHEEL, CAST, REAR (INCL. 4-8,12,13)
-
75334138 SPACERSPACER
-
87710526 RING, RETAININGRING, RETAINING
-
91910623 ROTOR, BRAKE, FLOATINGROTOR, BRAKE, FLOATING
-
107518297 SCREWSCREW
-
115412373 TIRE, REARTIRE, REAR
-
121520618 WEIGHT, BALANCEWEIGHT, BALANCE
-
131520232 VALVE, RIMVALVE, RIM
-
147547226 NUT, HEX, FUJILOKNUT, HEX, FUJILOK
-
155245087-236 WASHER, INDICATOR, AXLEWASHER, INDICATOR, AXLE
-
167518178 SCREWSCREW
-
175133481 MOUNT, AXLE, ADJUSTMENTMOUNT, AXLE, ADJUSTMENT
-
185631479 SPACER, BEARING, LEFT HANDSPACER, BEARING, LEFT HAND
-
195631480 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
201014470 SHAFT, SPINDLESHAFT, SPINDLE
