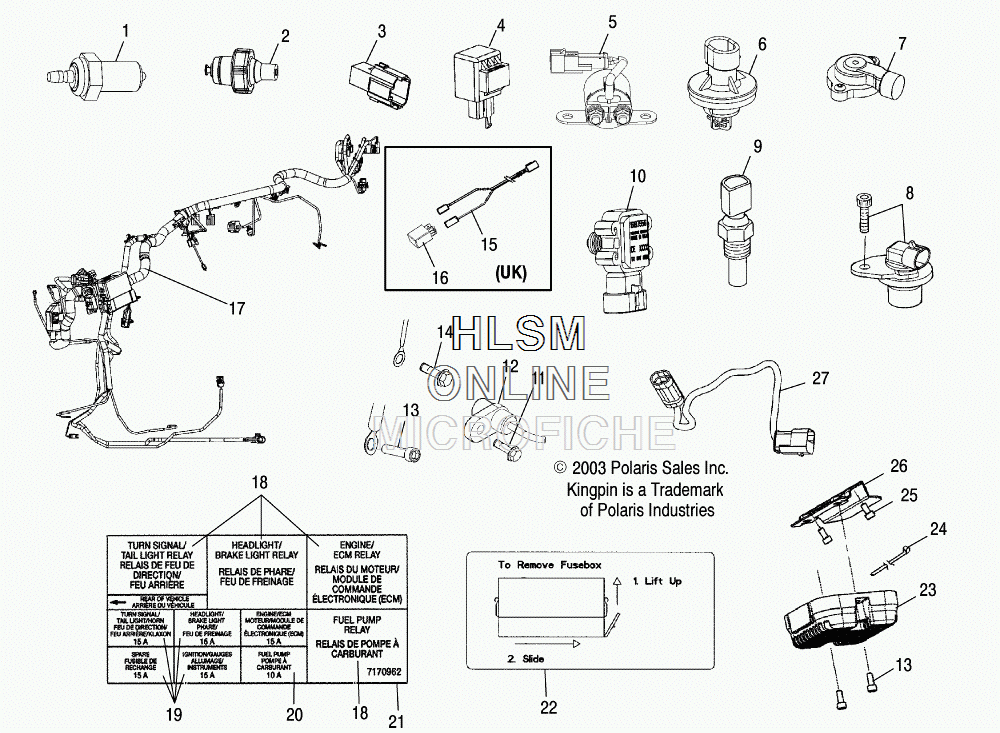

RELAYS AND SENSORS для Polaris KINGPIN (49 STATE) [V04CB16DA] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    4110235 SWITCH, NEUTRAL INDICATOR
    SWITCH, NEUTRAL INDICATOR
  • 2
    4010649 SWITCH, OIL PRESSURE
    SWITCH, OIL PRESSURE
  • 3
    2410358 DIODE
    DIODE
  • 4
    2410338 RELAY, FLASHER
    RELAY, FLASHER
  • 5
    4010947 SOLENOID, STARTER
    SOLENOID, STARTER
  • 5
    7547270 NUT
    NUT
  • 6
    4040077 SENSOR, AIR TEMPERATURE
    SENSOR, AIR TEMPERATURE
  • 7
    4010225 SENSOR, THROTTLE POSITION
    SENSOR, THROTTLE POSITION
  • 7
    1500201 O-RING
    O-RING
  • 8
    4110217 SENSOR, CRANKSHAFT POSITION
    SENSOR, CRANKSHAFT POSITION
  • 8
    7517272 SCREW
    SCREW
  • 9
    4040076 SENSOR, ENGINE TEMPERATURE
    SENSOR, ENGINE TEMPERATURE
  • 10
    4040078 SENSOR, MAP
    SENSOR, MAP
  • 11
    7518141 SCREW
    SCREW
  • 12
    4011111 SENSOR, SPEED
    SENSOR, SPEED
  • 13
    7517272 SCREW
    SCREW
  • 14
    7518140 SCREW
    SCREW
  • 17
    2461180 HARNESS, MAIN WIRE
    HARNESS, MAIN WIRE
  • 18
    4010948 RELAY, MICRO
    RELAY, MICRO
  • 19
    2410280 FUSE, 15 AMP.
    FUSE, 15 AMP.
  • 20
    2434016 FUSE, 10 AMP.
    FUSE, 10 AMP.
  • 21
    7170962 DECAL, FUSE BOX
    DECAL, FUSE BOX
  • 22
    7171031 DECAL, FUSE BOX REMOVAL
    DECAL, FUSE BOX REMOVAL
  • 23
    2410337 REGULATOR, VOLTAGE (BLACK)
    REGULATOR, VOLTAGE (BLACK)
  • 23
    2410421 REGULATOR, VOLTAGE (SILVER)
    REGULATOR, VOLTAGE (SILVER)
  • 24
    7080492 CABLE TIE
    CABLE TIE
  • 25
    7517739 SCREW
    SCREW
  • 26
    1013510 BRACKET, VOLTAGE REGULATOR (BLACK)
    BRACKET, VOLTAGE REGULATOR (BLACK)
  • 26
    1013623 BRACKET, VOLTAGE REGULATOR (SILVER)
    BRACKET, VOLTAGE REGULATOR (SILVER)
  • 27
    2461135 HARNESS, JUMPER, FUEL INJECTOR
    HARNESS, JUMPER, FUEL INJECTOR
