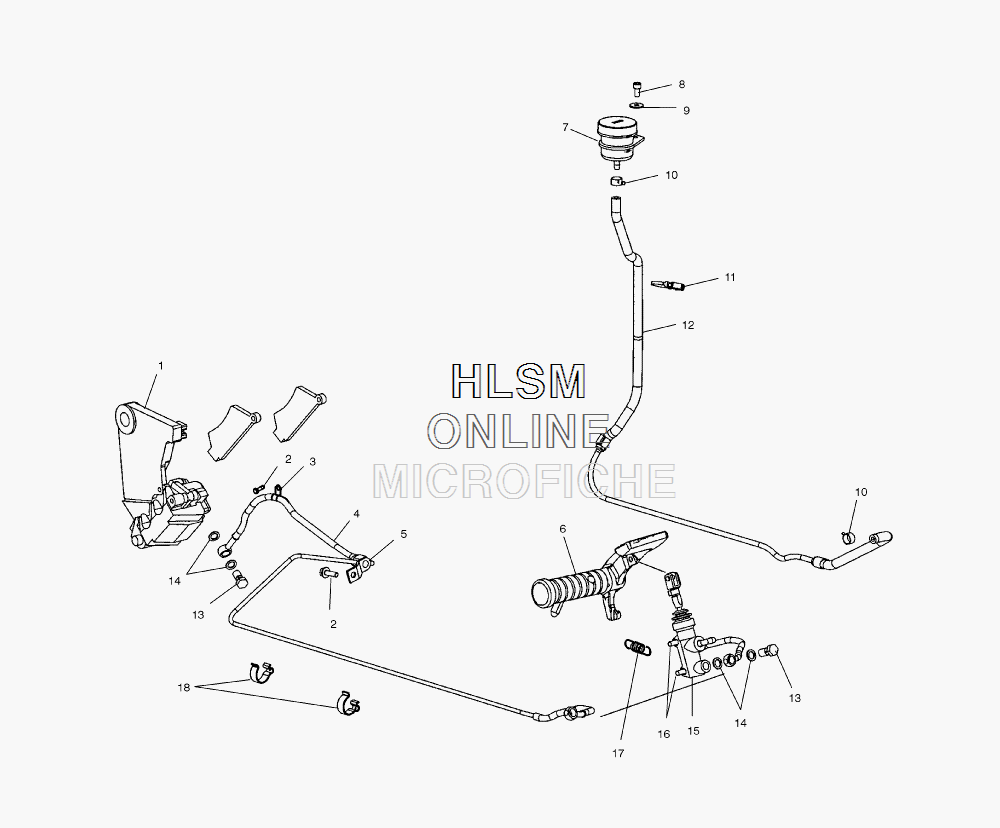

REAR BRAKE для Polaris VICTORY VEGAS (CALIFORNIA) [V03GB16LA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1910619 ASM., CALIPER, REAR
    ASM., CALIPER, REAR
  • 1
    2202491 KIT, BRAKE PAD, CALIPER, REAR
    KIT, BRAKE PAD, CALIPER, REAR
  • 1
    2201173 KIT, BLEEDER SCREW, BOOT
    KIT, BLEEDER SCREW, BOOT
  • 1
    2201174 KIT, BOOTS, CALIPER, REAR
    KIT, BOOTS, CALIPER, REAR
  • 1
    2201175 KIT, PIN, RETAINER, SPRING, CLIP
    KIT, PIN, RETAINER, SPRING, CLIP
  • 2
    7517704 SCREW
    SCREW
  • 3
    7080983 CLAMP
    CLAMP
  • 4
    1910626 HOSE
    HOSE
  • 5
    4010372 SWITCH, PRESSURE
    SWITCH, PRESSURE
  • 7
    1930882 RESERVOIR
    RESERVOIR
  • 8
    7517405 SCREW
    SCREW
  • 9
    7556064 WASHER, FLAT
    WASHER, FLAT
  • 10
    7080904 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    5433140 DART
    DART
  • 12
    1910656 HOSE
    HOSE
  • 13
    1930848 BOLT
    BOLT
  • 14
    5410988 SEAL, STAT - O
    SEAL, STAT - O
  • 15
    1910620 CYLINDER, MASTER, REAR
    CYLINDER, MASTER, REAR
  • 16
    7518141 SCREW
    SCREW
  • 17
    7042186 SPRING, EXTERNAL, BRAKE RETURN
    SPRING, EXTERNAL, BRAKE RETURN
  • 18
    7081014 CLIP, BRAKE LINE (BLACK)
    CLIP, BRAKE LINE (BLACK)
  • 18
    7080945 CLIP, BRAKE LINE (BLACK)
    CLIP, BRAKE LINE (BLACK)
  • 18
    7081114 CLIP, BRAKE LINE (SILVER)
    CLIP, BRAKE LINE (SILVER)
  • 18
    7081113 CLIP, BRAKE LINE (SILVER)
    CLIP, BRAKE LINE (SILVER)
