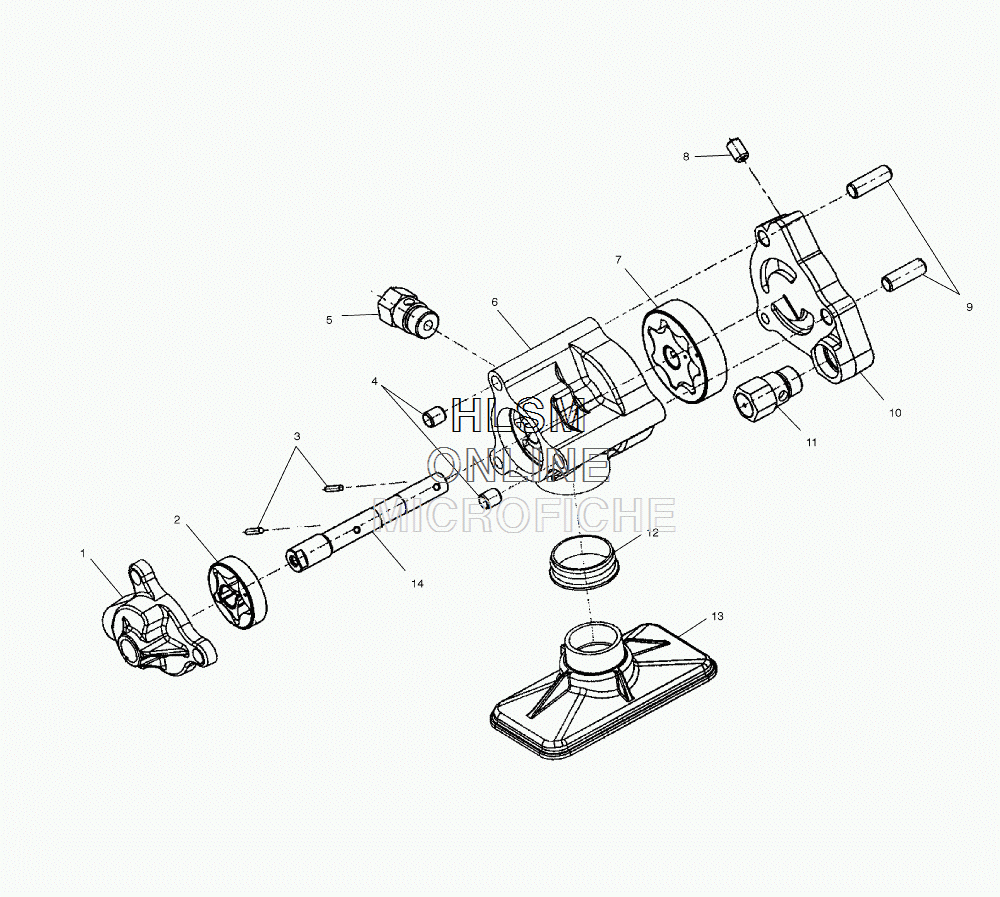

OIL PUMP для Polaris TOURING CRUISER (CANADA) [V03TB16CA] - 2003 года выпуска`
-
№АртикулНазвание
-
15133039 CAP, OIL PUMPCAP, OIL PUMP
-
22540091 GEROTOR, LUBRICATIONGEROTOR, LUBRICATION
-
37661123 PIN, CLEVISPIN, CLEVIS
-
47663007 DOWELDOWEL
-
52540088 ASM., REGULATOR VALVEASM., REGULATOR VALVE
-
65133043 BODY, PUMPBODY, PUMP
-
72540092 GEROTOR, COOLINGGEROTOR, COOLING
-
82540080 JET, OILJET, OIL
-
97663014 DOWELDOWEL
-
105133040 BASEBASE
-
112540096 ASM., REGULATOR VALVEASM., REGULATOR VALVE
-
123610081 SEAL, OIL INLETSEAL, OIL INLET
-
132540090 ASM., INLET SCREENASM., INLET SCREEN
-
142540089 SHAFT, OIL PUMPSHAFT, OIL PUMP
