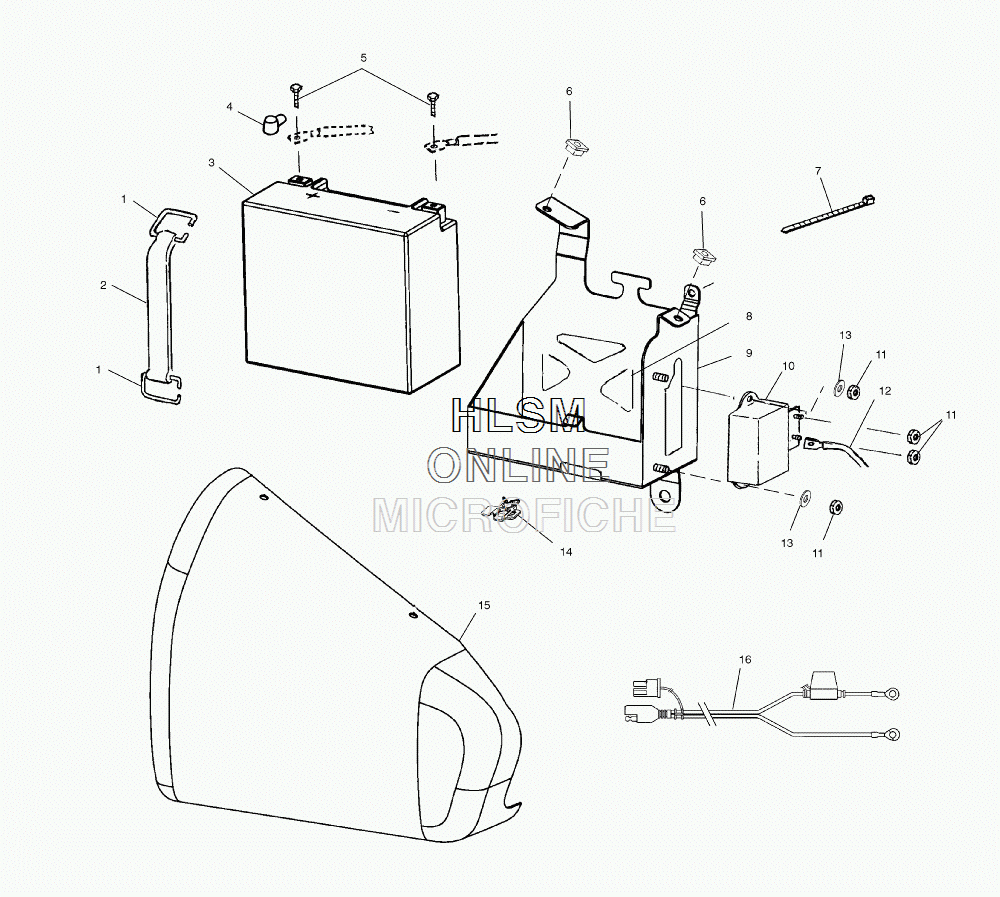

BATTERY BOX для Polaris TOURING CRUISER (CALIFORNIA) [V03TB16LA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5224472 D-HOOK
    D-HOOK
  • 2
    5410424 STRAP, BATTERY HOLD DOWN
    STRAP, BATTERY HOLD DOWN
  • 3
    4010466 BATTERY
    BATTERY
  • 4
    5411570 BOOT, CABLE, BATTERY, RED
    BOOT, CABLE, BATTERY, RED
  • 5
    2201357 KIT, BATTERY BOLT
    KIT, BATTERY BOLT
  • 6
    5433510 GROMMET
    GROMMET
  • 7
    7080138 CABLE TIE
    CABLE TIE
  • 8
    5244759 PAD, BATTERY BOX
    PAD, BATTERY BOX
  • 10
    2410181 RELAY, STARTER
    RELAY, STARTER
  • 11
    7547120 NUT
    NUT
  • 12
    4010309 CABLE, STARTER/RELAY
    CABLE, STARTER/RELAY
  • 13
    7556064 WASHER, FLAT
    WASHER, FLAT
  • 14
    5433841 CLIP
    CLIP
  • 15
    1013697-342 COVER, SIDE, LEFT HAND (SOLAR RED)
    COVER, SIDE, LEFT HAND (SOLAR RED)
  • 15
    1013697-341 COVER, SIDE, LEFT HAND (SONIC BLUE)
    COVER, SIDE, LEFT HAND (SONIC BLUE)
  • 15
    1013697-266 COVER, SIDE, LEFT HAND (BLACK)
    COVER, SIDE, LEFT HAND (BLACK)
  • 15
    1013697-353 COVER, SIDE, LEFT HAND (GREEN)
    COVER, SIDE, LEFT HAND (GREEN)
  • 15
    1013697-389 COVER, SIDE, LEFT HAND (TURQUOISE)
    COVER, SIDE, LEFT HAND (TURQUOISE)
  • 16
    2461006 HARNESS, CHARGING
    HARNESS, CHARGING
