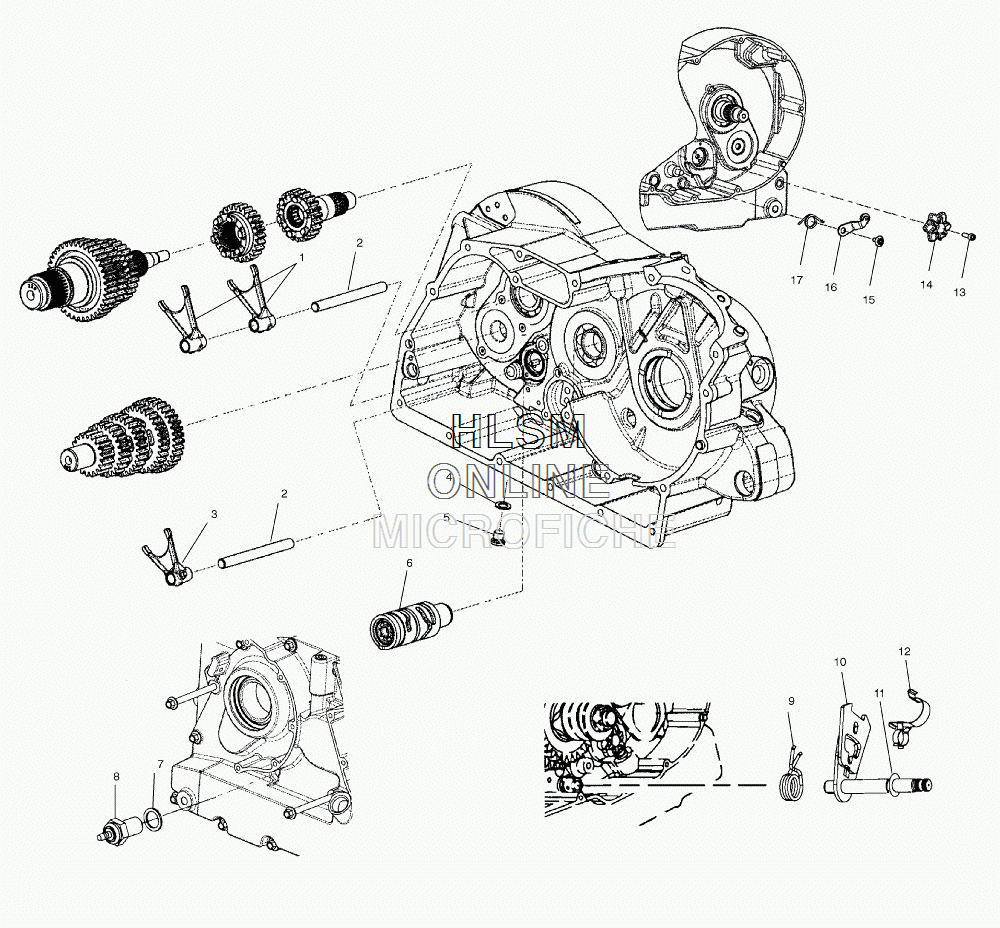

SHIFT FORKS/DRUM для Polaris TOURING CRUISER (49 STATE) [V03TB16DA] - 2003 года выпуска`
-
№АртикулНазвание
-
15133255 FORK, SHIFT, MAINSHAFTFORK, SHIFT, MAINSHAFT
-
25132177 RAIL, SHIFTRAIL, SHIFT
-
35133256 FORK, SHIFT, COUNTERSHAFTFORK, SHIFT, COUNTERSHAFT
-
45812232 WASHER, COPPERWASHER, COPPER
-
57052306 PLUG, SOCKETPLUG, SOCKET
-
61341415 ASM., SHIFTER DRUM (INCL. BEARING, DRUM, PINS)ASM., SHIFTER DRUM (INCL. BEARING, DRUM, PINS)
-
63513518 BEARING, BALLBEARING, BALL
-
67661023 PIN, SOLIDPIN, SOLID
-
77556154 WASHER, FLATWASHER, FLAT
-
97041583 SPRINGSPRING
-
101341416 ASM., SHIFTER RATCHET (INCL. 9)ASM., SHIFTER RATCHET (INCL. 9)
-
117710534 RING, RETAININGRING, RETAINING
-
127041869 SPRINGSPRING
-
137517384 SCREWSCREW
-
145133254 STAR, SHIFTERSTAR, SHIFTER
-
157517965 SCREWSCREW
-
161341402 ASM., ROLLER FOLLOWERASM., ROLLER FOLLOWER
-
177042087 SPRING, TENSIONSPRING, TENSION
