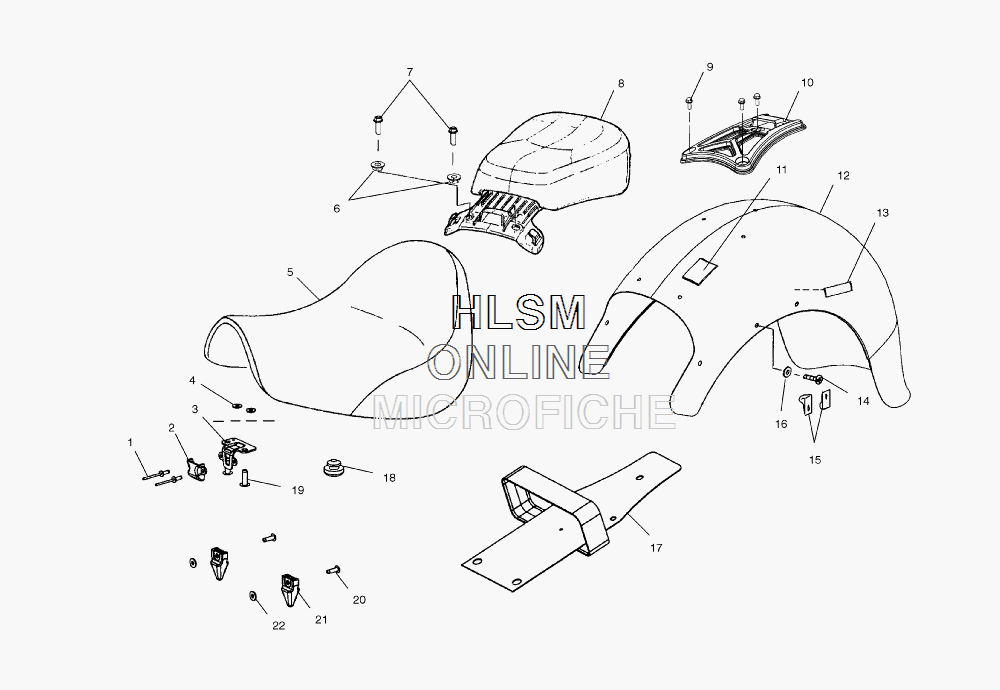

SEAT AND REAR FENDER для Polaris CLASSIC CRUISER (UK) [V03CB16UA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7661092 RIVET
    RIVET
  • 2
    5433698 SHIELD, SEAT BRACKET
    SHIELD, SEAT BRACKET
  • 3
    5243971 BRACKET, SEAT LOCK
    BRACKET, SEAT LOCK
  • 4
    7556133 WASHER, FLAT
    WASHER, FLAT
  • 5
    2683135 SEAT
    SEAT
  • 6
    7556146 WASHER, SHOULDER
    WASHER, SHOULDER
  • 7
    7517751 SCREW
    SCREW
  • 8
    2682529 ASM., TANDEM SEAT
    ASM., TANDEM SEAT
  • 9
    7517705 SCREW
    SCREW
  • 10
    5433482 BRACKET, TANDEM SEAT
    BRACKET, TANDEM SEAT
  • 11
    5811941 PAD, RUBBER, TANDEM SEAT
    PAD, RUBBER, TANDEM SEAT
  • 12
    1013278B3 FENDER, REAR (YELLOW/BLACK)
    FENDER, REAR (YELLOW/BLACK)
  • 12
    1013278B2 FENDER, REAR (RED/SILVER)
    FENDER, REAR (RED/SILVER)
  • 12
    1013278-266 FENDER, REAR (BLACK)
    FENDER, REAR (BLACK)
  • 12
    1013278B1 FENDER, REAR (BLUE/SILVER)
    FENDER, REAR (BLUE/SILVER)
  • 12
    1013278-341 FENDER, REAR (SONIC BLUE)
    FENDER, REAR (SONIC BLUE)
  • 12
    1013278-342 FENDER, REAR (SOLAR RED)
    FENDER, REAR (SOLAR RED)
  • 12
    1013278-388 FENDER, REAR (YELLOW)
    FENDER, REAR (YELLOW)
  • 12
    1013278-384 FENDER, REAR (FLAME)
    FENDER, REAR (FLAME)
  • 12
    1013278B4 FENDER, REAR (TURQUOISE/WHITE)
    FENDER, REAR (TURQUOISE/WHITE)
  • 13
    5433865 REFLECTOR, RED
    REFLECTOR, RED
  • 14
    7518155 SCREW
    SCREW
  • 15
    7080737 CLIP, ELECTRICAL
    CLIP, ELECTRICAL
  • 16
    5133702 BUSHING, FENDER, REAR
    BUSHING, FENDER, REAR
  • 17
    2682455 ASM., SEAT STRAP
    ASM., SEAT STRAP
  • 18
    5412067 BUMPER, RUBBER
    BUMPER, RUBBER
  • 19
    7661081 RIVET
    RIVET
  • 20
    7621462 RIVET
    RIVET
  • 21
    5412282 CONE, ALIGNMENT
    CONE, ALIGNMENT
  • 22
    7555746 WASHER
    WASHER
