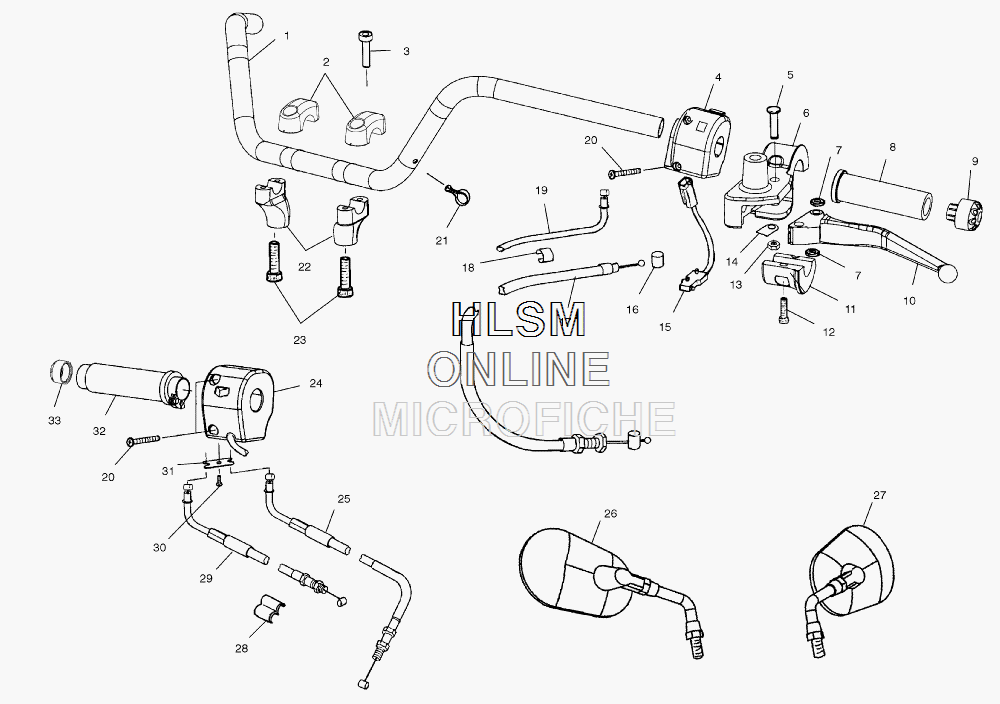

HANDLEBAR для Polaris CLASSIC CRUISER (CALIFORNIA) [V03CB16LA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5244831 HANDLEBAR
    HANDLEBAR
  • 2
    5333903 CAP, RISER
    CAP, RISER
  • 3
    7517361 SCREW
    SCREW
  • 4
    4010562 SWITCH, HAND CONTROL, CHROME, LEFT HAND
    SWITCH, HAND CONTROL, CHROME, LEFT HAND
  • 4
    4010786 SWITCH, HAND CONTROL SILVER, LEFT HAND
    SWITCH, HAND CONTROL SILVER, LEFT HAND
  • 5
    2201229 KIT, LEVER HARDWARE (INCL. 7,13,14)
    KIT, LEVER HARDWARE (INCL. 7,13,14)
  • 5
    5133537 PIN, CLUTCH LEVER SCREW
    PIN, CLUTCH LEVER SCREW
  • 6
    5133535 BRACKET, CLUTCH/MIRROR, SILVER
    BRACKET, CLUTCH/MIRROR, SILVER
  • 7
    5433164 WASHER, CLUTCH LEVER
    WASHER, CLUTCH LEVER
  • 8
    5411256 GRIP, HANDLEBAR, LEFT HAND
    GRIP, HANDLEBAR, LEFT HAND
  • 9
    5432692 CAP, HANDLEBAR END, LEFT HAND
    CAP, HANDLEBAR END, LEFT HAND
  • 10
    5131562 LEVER, CLUTCH, HAND, LEFT HAND
    LEVER, CLUTCH, HAND, LEFT HAND
  • 11
    5133536 CAP, CLUTCH/MIRROR BRACKET, SILVER
    CAP, CLUTCH/MIRROR BRACKET, SILVER
  • 12
    7517630 SCREW
    SCREW
  • 13
    7547092 NUT, NYLOK
    NUT, NYLOK
  • 14
    5243113 CLIP, SWITCH
    CLIP, SWITCH
  • 15
    4110257 SWITCH, SAFETY, CLUTCH
    SWITCH, SAFETY, CLUTCH
  • 16
    5433071 BUSHING, CLUTCH CABLE, UPPER
    BUSHING, CLUTCH CABLE, UPPER
  • 17
    7081017 CABLE, CLUTCH
    CABLE, CLUTCH
  • 18
    5433070 CLIP, CLUTCH, CABLE, FAST IDLE
    CLIP, CLUTCH, CABLE, FAST IDLE
  • 19
    7080716 CABLE, FAST IDLE
    CABLE, FAST IDLE
  • 20
    7517366 SCREW
    SCREW
  • 21
    5433140 DART, HANDLEBAR
    DART, HANDLEBAR
  • 22
    5132424 RISER, HANDLEBAR
    RISER, HANDLEBAR
  • 23
    7517586 SCREW
    SCREW
  • 24
    4010571 SWITCH, HAND CONTROL, CHROME, RIGHT HAND
    SWITCH, HAND CONTROL, CHROME, RIGHT HAND
  • 24
    4010787 SWITCH, HAND CONTROL, SILVER, RIGHT HAND
    SWITCH, HAND CONTROL, SILVER, RIGHT HAND
  • 25
    7080724 CABLE, THROTTLE, PUSH
    CABLE, THROTTLE, PUSH
  • 26
    2632261 MIRROR, RIGHT HAND
    MIRROR, RIGHT HAND
  • 27
    2632260 MIRROR, LEFT HAND
    MIRROR, LEFT HAND
  • 28
    5433039 CLIP, THROTTLE CABLES, DUAL
    CLIP, THROTTLE CABLES, DUAL
  • 29
    7080725 CABLE, THROTTLE, PULL
    CABLE, THROTTLE, PULL
  • 30
    7517420 SCREW
    SCREW
  • 31
    5242448 RETAINER, THROTTLE CABLE, RIGHT
    RETAINER, THROTTLE CABLE, RIGHT
  • 32
    5411255 GRIP, THROTTLE, HANDLEBAR
    GRIP, THROTTLE, HANDLEBAR
  • 33
    5432715 CAP, HANDLEBAR END, RIGHT HAND
    CAP, HANDLEBAR END, RIGHT HAND
