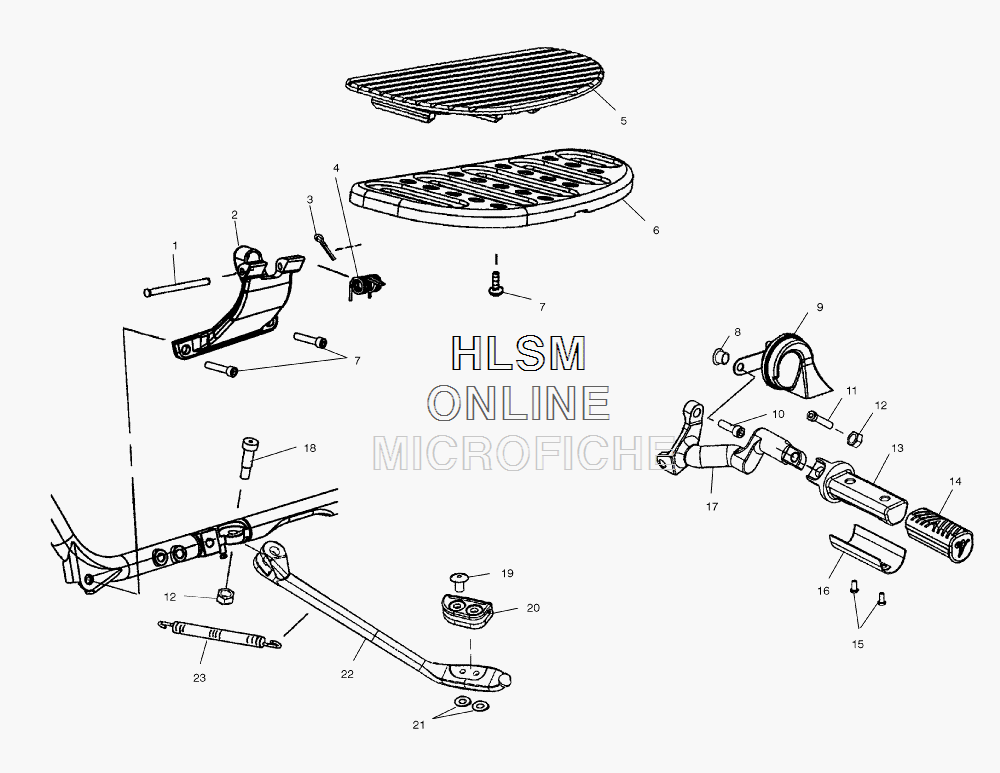

FLOOR BOARD AND SIDE STAND для Polaris CLASSIC CRUISER (49 STATE) [V03CB16DA] - 2003 года выпуска

№

Артикул

Название
1

7661095 PIN, FLOORBOARD SUPPORT

PIN, FLOORBOARD SUPPORT
2

5132429-067 SUPPORT, FLOORBOARD, BLACK, LEFT HAND

SUPPORT, FLOORBOARD, BLACK, LEFT HAND
2

5132429-385 SUPPORT, FLOORBOARD, SILVER, LEFT HAND

SUPPORT, FLOORBOARD, SILVER, LEFT HAND
2

5132430-067 SUPPORT, FLOORBOARD, BLACK, RIGHT HAND

SUPPORT, FLOORBOARD, BLACK, RIGHT HAND
2

5132430-385 SUPPORT, FLOORBOARD, SILVER, RIGHT HAND

SUPPORT, FLOORBOARD, SILVER, RIGHT HAND
3

7661094 PIN, COTTER

PIN, COTTER
4

7041623 SPRING, FLOORBOARD SUPPORT

SPRING, FLOORBOARD SUPPORT
5

5412025 PAD, FLOORBOARD, LEFT HAND

PAD, FLOORBOARD, LEFT HAND
5

5412026 PAD, FLOORBOARD, RIGHT HAND

PAD, FLOORBOARD, RIGHT HAND
6

5132228 FLOORBOARD, LEFT HAND

FLOORBOARD, LEFT HAND
6

5132229 FLOORBOARD, RIGHT HAND

FLOORBOARD, RIGHT HAND
7

7517694 SCREW, ACORN

SCREW, ACORN
8

5132658 SPACER

SPACER
9

4010688 HORN

HORN
10

7518153 SCREW (LEFT HAND SIDE)

SCREW (LEFT HAND SIDE)
10

7518123 SCREW (RIGHT HAND SIDE)

SCREW (RIGHT HAND SIDE)
11

7517525 SCREW

SCREW
12

7547039 NUT

NUT
13

5132303 FOOTPEG, PASSENGER, LEFT HAND

FOOTPEG, PASSENGER, LEFT HAND
13

5132304 FOOTPEG, PASSENGER, RIGHT HAND

FOOTPEG, PASSENGER, RIGHT HAND
14

5411333 PAD, FOOTPEG, PASSENGER, LEFT HAND

PAD, FOOTPEG, PASSENGER, LEFT HAND
14

5411334 PAD, FOOTPEG, PASSENGER, RIGHT HAND

PAD, FOOTPEG, PASSENGER, RIGHT HAND
15

7517767 SCREW

SCREW
16

5243767-067 COVER, FOOTPEG

COVER, FOOTPEG
17

5244041-067 SUPPORT, FOOTPEG, PASSENGER, LEFT HAND

SUPPORT, FOOTPEG, PASSENGER, LEFT HAND
17

5244042-067 SUPPORT, FOOTPEG, PASSENGER, RIGHT HAND

SUPPORT, FOOTPEG, PASSENGER, RIGHT HAND
18

7517404 SCREW

SCREW
19

7661064 RIVET

RIVET
20

5411745 PAD, SIDE STAND

PAD, SIDE STAND
21

7556121 WASHER, FLAT

WASHER, FLAT
22

1013062 ASM., STAND, SIDE (INCL. 19,20,21)

ASM., STAND, SIDE (INCL. 19,20,21)
23

7042047 SPRING

SPRING
