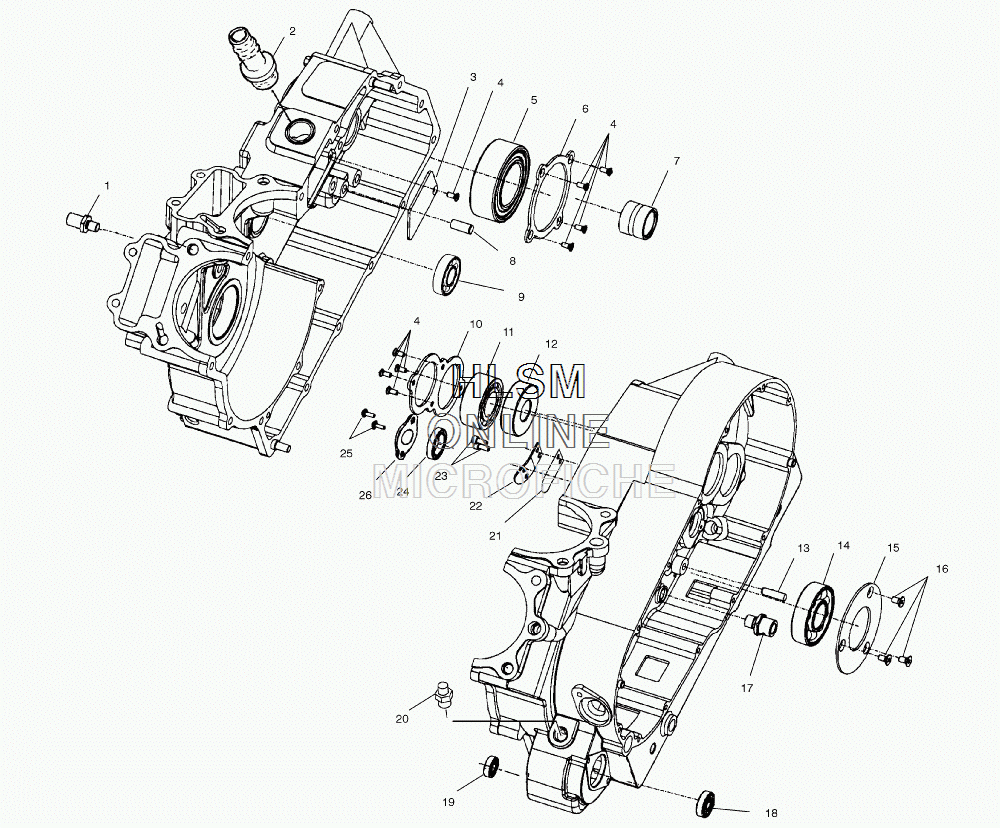

CRANKCASE BEARINGS для Polaris TOURING CRUISER (49 STATE) [V02TB16DC] - 2002 года выпуска`
-
№АртикулНазвание
-
15010430 ADAPTOR, CAM CHAIN GUIDEADAPTOR, CAM CHAIN GUIDE
-
25132270 FITTING, BREATHERFITTING, BREATHER
-
35131792 PLATE, BREATHER BAFFLEPLATE, BREATHER BAFFLE
-
47517255 SCREWSCREW
-
53513515 BEARINGBEARING
-
65211817 PLATE, BEARING RETAINING (MAIN)PLATE, BEARING RETAINING (MAIN)
-
73584007 BEARINGBEARING
-
87661020 PIN, SOLIDPIN, SOLID
-
93514336 BEARING, BALLBEARING, BALL
-
105211774 PLATE, BEARING RETAININGPLATE, BEARING RETAINING
-
113513524 BEARING, BALL, DOUBLE ROWBEARING, BALL, DOUBLE ROW
-
123513512 BEARING, BALLBEARING, BALL
-
137661101 PIN, SOLIDPIN, SOLID
-
143514404 BEARING, BALLBEARING, BALL
-
155211773 PLATE, RETAINING, BEARING (BALANCE)PLATE, RETAINING, BEARING (BALANCE)
-
167517598 SCREWSCREW
-
175132139 ADAPTOR, SHIFT SHAFTADAPTOR, SHIFT SHAFT
-
183513518 BEARING, BALLBEARING, BALL
-
193514313 BEARING, BALLBEARING, BALL
-
207052186 FITTING, OIL LINEFITTING, OIL LINE
-
215131793 PLATE, REED VALVEPLATE, REED VALVE
-
225131791 PLATE, REED BACKERPLATE, REED BACKER
-
237517276 SCREWSCREW
-
243513511 BEARING, BALLBEARING, BALL
-
257517797 SCREWSCREW
-
265244477 PLATE, BEARINGPLATE, BEARING
