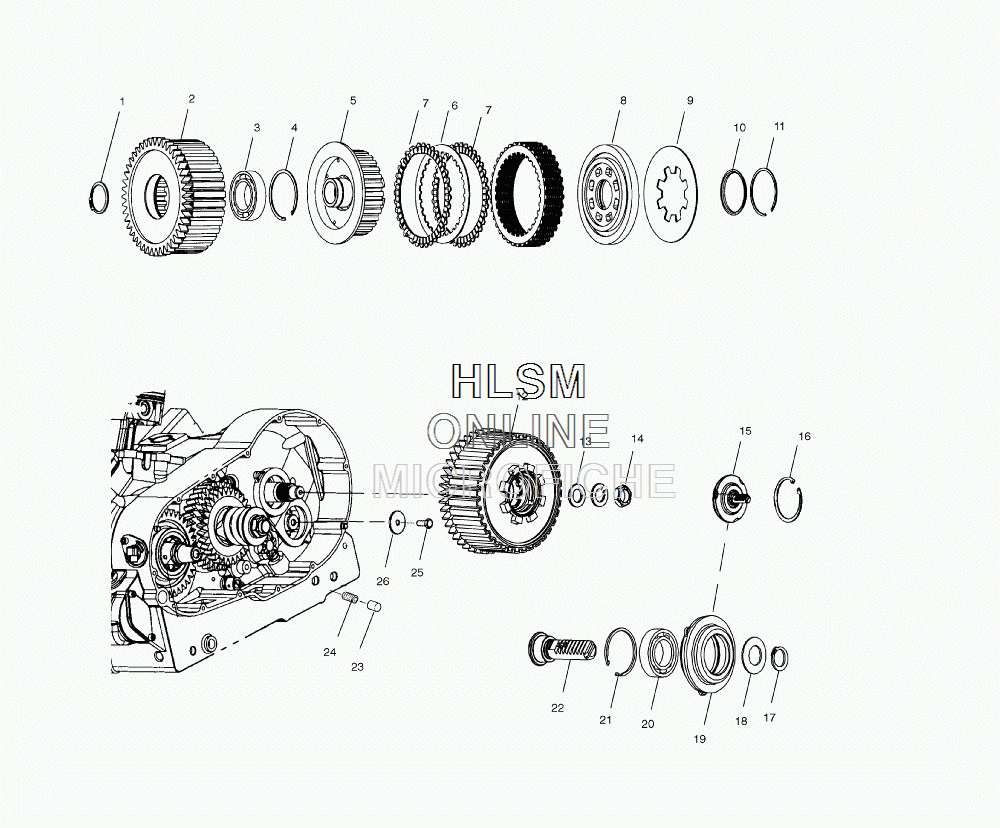

DRIVE CLUTCH для Polaris STANDARD CRUISER (CALIFORNIA) [V01CB15LC] - 2001 года выпуска`
-
№АртикулНазвание
-
1A2202434 KIT, CLUTCH PACKKIT, CLUTCH PACK
-
17670122 CIRCLIP-EXTERNAL,40MMCIRCLIP-EXTERNAL,40MM
-
21341348 ASM-GEAR/BASKETASM-GEAR/BASKET
-
33514358 BEARING-BALL 40X68X15BEARING-BALL 40X68X15
-
47670123 CIRCLIP-INTERNAL,62MMCIRCLIP-INTERNAL,62MM
-
55132704 HUB-CLUTCH,MACHHUB-CLUTCH,MACH
-
85132703 PLATE-PRESSURE,CLUTCHPLATE-PRESSURE,CLUTCH
-
97041944 SPRING-DIAPHRAM,CLUTCHSPRING-DIAPHRAM,CLUTCH
-
107710510 RING-SEAT,SNAP RINGRING-SEAT,SNAP RING
-
117670124 CIRCLIP-INTERNAL 68MMCIRCLIP-INTERNAL 68MM
-
121321898 ASM-CLUTCHASM-CLUTCH
-
135131658 WASHER,HUBWASHER,HUB
-
147547019 NUTNUT
-
151321935 ASM-INSERT,PRESSURE PLATE/BRG (INCL. 19,20,21)ASM-INSERT,PRESSURE PLATE/BRG (INCL. 19,20,21)
-
167710506 CIRCLIP-INTERNAL 49MMCIRCLIP-INTERNAL 49MM
-
177710508 RING-RTNG,EXT,11.9X.6,0600096RING-RTNG,EXT,11.9X.6,0600096
-
187556165 WASHER-SPRING,23X1.6X12.1WASHER-SPRING,23X1.6X12.1
-
195132553 INSERT-PRESSURE PLATE,MACHINSERT-PRESSURE PLATE,MACH
-
203514356 BEARING-BALL,17X30X7,6903BEARING-BALL,17X30X7,6903
-
217670128 CIRCLIP-INTERNAL,30MMCIRCLIP-INTERNAL,30MM
-
226230196 RACK-CLUTCH,MACHRACK-CLUTCH,MACH
-
237051528 PLUG,M14X10PLUG,M14X10
-
247517449 SCREW,SET,M10X16SCREW,SET,M10X16
-
257517587 SCREWSCREW
-
267556139 WASHER, FLATWASHER, FLAT
