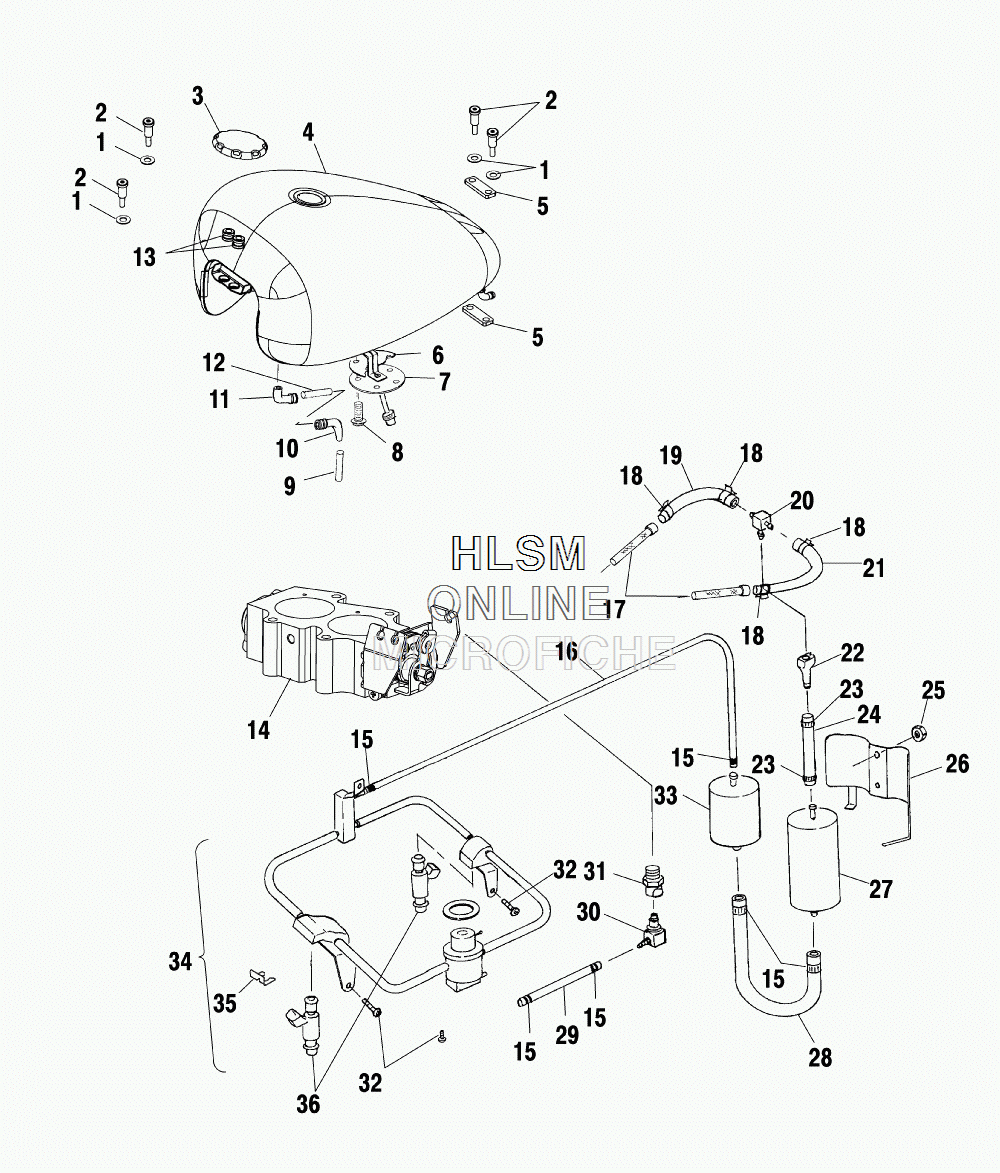

FUEL SYSTEM для Polaris SPORT CRUISER (CALIFORNIA) [V01CS15LC] - 2001 года выпуска`
-
№АртикулНазвание
-
17556155 WASHERWASHER
-
27517723 SCREWSCREW
-
35132333 CAP,FUELCAP,FUEL
-
41013342A1 WELD-TANK,FUEL, BLACK W/SLV PINWELD-TANK,FUEL, BLACK W/SLV PIN
-
41013342A5 WELD-TANK,FUEL,STL GREYWELD-TANK,FUEL,STL GREY
-
41013342A11 WELD-TANK,FUEL,SPEED YELLOWWELD-TANK,FUEL,SPEED YELLOW
-
55411796 PAD-REAR,TANK MOUNTPAD-REAR,TANK MOUNT
-
65830193 GASKET-FUEL SENDERGASKET-FUEL SENDER
-
74010277 SENDER-FUEL LEVEL,SMALL FLOATSENDER-FUEL LEVEL,SMALL FLOAT
-
87517725 SCREW,SOCHD,M5X10,ZPBSCREW,SOCHD,M5X10,ZPB
-
95433958 VENT-LINE,FUELVENT-LINE,FUEL
-
105411984 ELBOW-VENT LINEELBOW-VENT LINE
-
115411972 ELBOW-VENT LINEELBOW-VENT LINE
-
125433950 VENT LINE-FUELVENT LINE-FUEL
-
135811878 GROMMET-RUBBER,FUEL TANK,FRONTGROMMET-RUBBER,FUEL TANK,FRONT
-
141253328 ASM-BODY,THROTTLE (CALIFORNIA MODEL)ASM-BODY,THROTTLE (CALIFORNIA MODEL)
-
157080894 CLAMP,HOSE,12-17MM DIACLAMP,HOSE,12-17MM DIA
-
165411803 HOSE,FILTER/MANIFOLDHOSE,FILTER/MANIFOLD
-
172530031 FILTER,FUELFILTER,FUEL
-
187080790 CLAMP,HOSE,DBL.BANDCLAMP,HOSE,DBL.BAND
-
195411799 HOSE,TANK/QUICK DISC, RIGHT HANDHOSE,TANK/QUICK DISC, RIGHT HAND
-
202520131 QUICKDISC,FUELFEED,MALE,TEEQUICKDISC,FUELFEED,MALE,TEE
-
201500199 O-RINGO-RING
-
215411929 HOSE,TANK/QUICK DISC, LEFT HANDHOSE,TANK/QUICK DISC, LEFT HAND
-
222520136 QUICKDISC,,FUELPUMP,FEMALEQUICKDISC,,FUELPUMP,FEMALE
-
237080895 CLAMP,HOSE,16-22MM DIACLAMP,HOSE,16-22MM DIA
-
245411801 HOSE,QUICK-DISC/PUMPHOSE,QUICK-DISC/PUMP
-
257547120 NUTNUT
-
265211889-067 BRKT,FUELPUMP TOP, BLACKBRKT,FUELPUMP TOP, BLACK
-
272520128 PUMP,FUELPUMP,FUEL
-
285411802 HOSE,PUMP/FILTERHOSE,PUMP/FILTER
-
295411804 HOSE,RAIL/TANK RETURNHOSE,RAIL/TANK RETURN
-
305131507 FUELLINE,QUICK DISC,MALEFUELLINE,QUICK DISC,MALE
-
301500199 O-RINGO-RING
-
315131506 DISC-QUICK,FUELTANK,FEMALEDISC-QUICK,FUELTANK,FEMALE
-
327517405 SCREWSCREW
-
332530028 FILTER,FUEL,HI-PRESSUREFILTER,FUEL,HI-PRESSURE
-
342520191 RAIL,FUEL SRAIL,FUEL S
-
357670103 CLIP, INJECTOR CLOCKINGCLIP, INJECTOR CLOCKING
-
361253174 INJECTOR, FUELINJECTOR, FUEL
-
361500198 O-RINGO-RING
