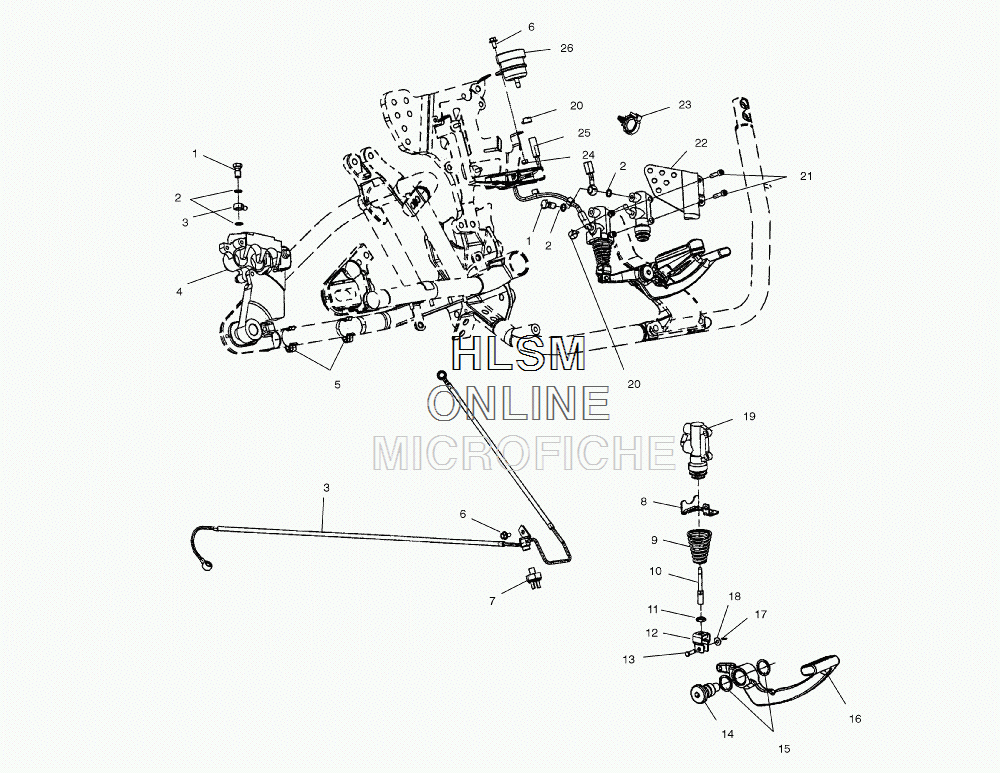

REAR BRAKE для Polaris SPORT CRUISER (49 STATE) [V01CS15DA] - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1930848 BOLT,BRAKE,BANJO,SPCL
    BOLT,BRAKE,BANJO,SPCL
  • 2
    7556028 WASHER,BANJO,COPPER
    WASHER,BANJO,COPPER
  • 3
    1910452 HOSE-REAR BRAKE,SC,01
    HOSE-REAR BRAKE,SC,01
  • 4
    1910374 CALIPER,REAR,ASM.2 PISTON 6MM.
    CALIPER,REAR,ASM.2 PISTON 6MM.
  • 4
    2201171 KIT,BRAKE PAD,REAR
    KIT,BRAKE PAD,REAR
  • 4
    2201173 KIT,BLEEDER SCREW,BOOT
    KIT,BLEEDER SCREW,BOOT
  • 4
    2201174 KIT,BOOTS,R.CALIPER
    KIT,BOOTS,R.CALIPER
  • 4
    2201175 KIT,PINS,RET,SPRNG,REAR
    KIT,PINS,RET,SPRNG,REAR
  • 5
    7080949 CLIP-BRAKE LINE
    CLIP-BRAKE LINE
  • 6
    7517704 SCREW
    SCREW
  • 7
    4010372 SWITCH-PRESSURE,REAR BRAKE
    SWITCH-PRESSURE,REAR BRAKE
  • 8
    5243551-067 BRKT,BRAKE SPRNG,RETAIN,SC, BLACK
    BRKT,BRAKE SPRNG,RETAIN,SC, BLACK
  • 9
    7041806-067 SPRING-BRAKE PEDAL,SC, BLACK
    SPRING-BRAKE PEDAL,SC, BLACK
  • 10
    5132047 ROD,BRAKE,SC
    ROD,BRAKE,SC
  • 11
    7547050 NUT,HEXHD,M8
    NUT,HEXHD,M8
  • 12
    1012892-067 CLEVIS ROD, BLACK
    CLEVIS ROD, BLACK
  • 13
    7661016 PIN,BRAKE LEVER/CLEVIS,SC
    PIN,BRAKE LEVER/CLEVIS,SC
  • 14
    5132115 SCREW-LEVER PIVOT
    SCREW-LEVER PIVOT
  • 15
    5411621 SEAL,SHIFTER/BRAKE
    SEAL,SHIFTER/BRAKE
  • 16
    1012890 BRAKELEVER,ASM,SC
    BRAKELEVER,ASM,SC
  • 16
    3514329 BUSHING-PEDAL,SC
    BUSHING-PEDAL,SC
  • 17
    7661070 PIN,COTTER
    PIN,COTTER
  • 18
    7556071 WSHR-FL,5.5X1.0,
    WSHR-FL,5.5X1.0,
  • 19
    1910359 MASTER CYLINDER,REAR,SC
    MASTER CYLINDER,REAR,SC
  • 20
    7080829 CLAMP-HOSE,.375, BLACK
    CLAMP-HOSE,.375, BLACK
  • 21
    7517638 SCREW
    SCREW
  • 22
    5244076-067 COVER-REAR MASTER CYLINDER, BLACK
    COVER-REAR MASTER CYLINDER, BLACK
  • 23
    5433140 DART,HANDLEBAR,1/2'
    DART,HANDLEBAR,1/2'
  • 24
    7547120 NUT
    NUT
  • 25
    1910495 HOSE-RES/MASTER CYLINDER,SC,01
    HOSE-RES/MASTER CYLINDER,SC,01
  • 26
    1930882 RESERVOIR,R.MASTER CYL.
    RESERVOIR,R.MASTER CYL.
