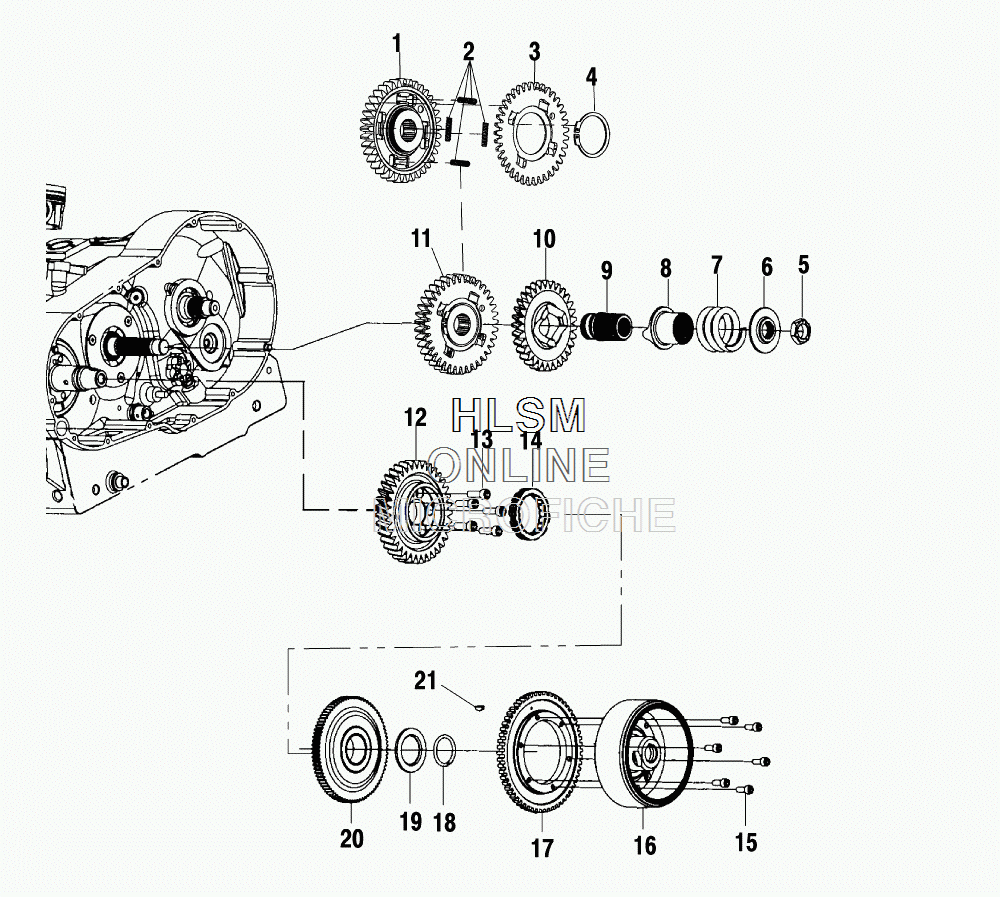

PRIMARY DRIVE для Polaris DELUXE CRUISER (UK) [V01CD15UC] - 2001 года выпуска`
-
№АртикулНазвание
-
16230190 GEAR-SPLIT,DRIVE,MACH,37TGEAR-SPLIT,DRIVE,MACH,37T
-
27041579 SPRING,SPLIT GEARSPRING,SPLIT GEAR
-
36230226 GEAR-SPLIT,BACKLASH,MACH,37TGEAR-SPLIT,BACKLASH,MACH,37T
-
47710511 RING-RTNG,EXT,54.8X2,0600096RING-RTNG,EXT,54.8X2,0600096
-
57547019 NUTNUT
-
65131699 FLANGE,COMPENSATORFLANGE,COMPENSATOR
-
77041614 SPRING,COMPENSATOR,1500#SPRING,COMPENSATOR,1500#
-
86110017 SLIDER,COMPENSATORSLIDER,COMPENSATOR
-
96110016 COMPENSATORCOMPENSATOR
-
106230192 GEAR-COMPENSATOR,SPUR,30T,MACHGEAR-COMPENSATOR,SPUR,30T,MACH
-
111341409 ASM-SPLIT GEAR,37T (INCL. 1-4)ASM-SPLIT GEAR,37T (INCL. 1-4)
-
126230193 GEAR-CRANKSHAFT,PRIMARY DRIVEGEAR-CRANKSHAFT,PRIMARY DRIVE
-
137517260 SCREW,SOCHD,M8X25SCREW,SOCHD,M8X25
-
144060156 CLUTCH STARTER DRIVECLUTCH STARTER DRIVE
-
157517272 SCREW,SOCHD,M6X15SCREW,SOCHD,M6X15
-
163031005 FLYWHEELFLYWHEEL
-
173031007 ADAPTER,FLYWHL,TIMING GRADAPTER,FLYWHL,TIMING GR
-
187710490 RING,RTNG,RND,30.8X3.6 W/35DEGRING,RTNG,RND,30.8X3.6 W/35DEG
-
197556038 WASHER,FLATWASHER,FLAT
-
201201744 GEAR ASM,CRNKSHFT,STRT.DRV.GEAR ASM,CRNKSHFT,STRT.DRV.
-
217721122 KEY,WOODRUFFKEY,WOODRUFF
