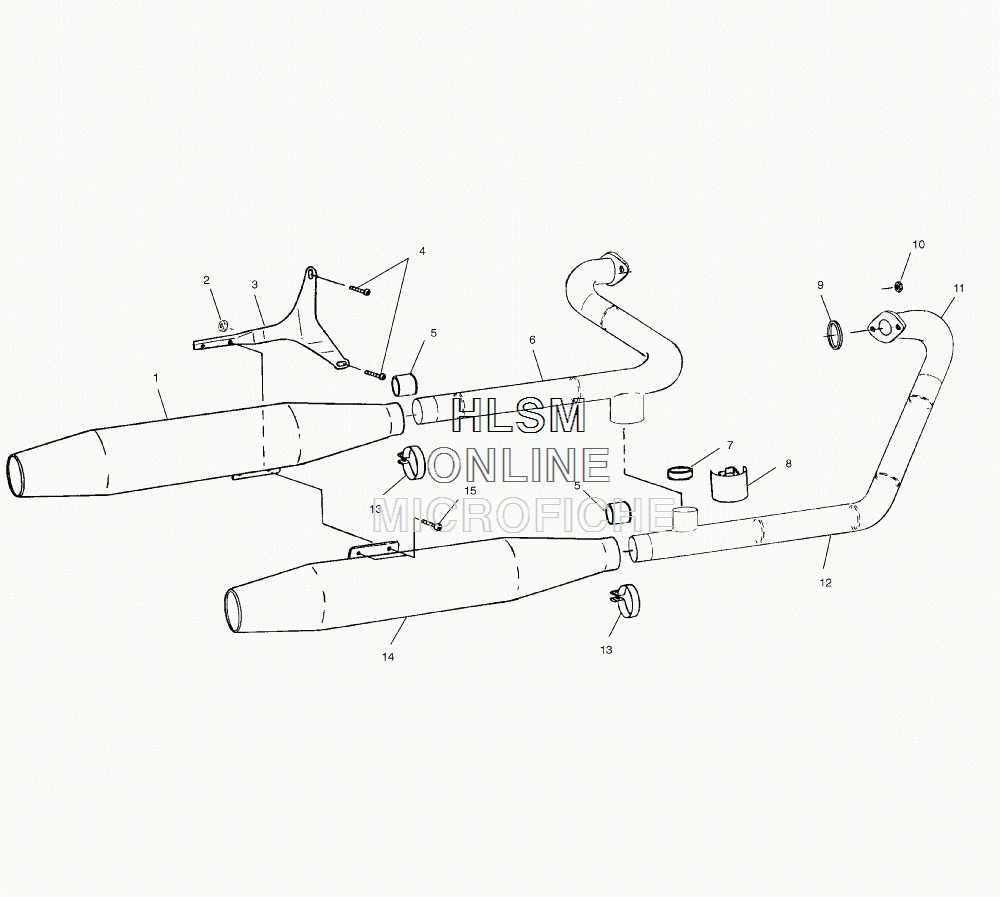

EXHAUST SYSTEM для Polaris DELUXE CRUISER (CALIFORNIA) [V01CD15LC] - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1261032 MUFFLER,ASM,REAR,STD CRS (INCL. 13)
    MUFFLER,ASM,REAR,STD CRS (INCL. 13)
  • 2
    7547121 NUT
    NUT
  • 3
    5243514-067 BRACKET-EXHAUST REAR, BLACK
    BRACKET-EXHAUST REAR, BLACK
  • 4
    7517838 SCR-HEXFLGHD,M8 X 20,0600086
    SCR-HEXFLGHD,M8 X 20,0600086
  • 5
    5811770 GASKET,EXHAUST,MUFFLER
    GASKET,EXHAUST,MUFFLER
  • 6
    1261036 PIPE,ASM,EXHAUST,RR,STD CRS (INCL. SHIELD)
    PIPE,ASM,EXHAUST,RR,STD CRS (INCL. SHIELD)
  • 7
    5811829 GASKET,EXHAUST,CROSSOVER
    GASKET,EXHAUST,CROSSOVER
  • 8
    7080835 CLAMP,CROSSOVER,V92C
    CLAMP,CROSSOVER,V92C
  • 9
    5211770 GASKET,EXH.SEALING
    GASKET,EXH.SEALING
  • 10
    7546805 NUT,SS.
    NUT,SS.
  • 11
    1261017 PIPE,ASM,EXHAUST,FRT,V92C (INCL. SHIELD)
    PIPE,ASM,EXHAUST,FRT,V92C (INCL. SHIELD)
  • 12
    7080774 CLAMP,EXH,HEATSHIELD
    CLAMP,EXH,HEATSHIELD
  • 13
    7080834 CLAMP,MUFFLER
    CLAMP,MUFFLER
  • 14
    1261033 MUFFLER,FRONT,STD CRS (INCL. 13)
    MUFFLER,FRONT,STD CRS (INCL. 13)
  • 15
    7517524 SCREW,SOCHD,M8X25
    SCREW,SOCHD,M8X25
