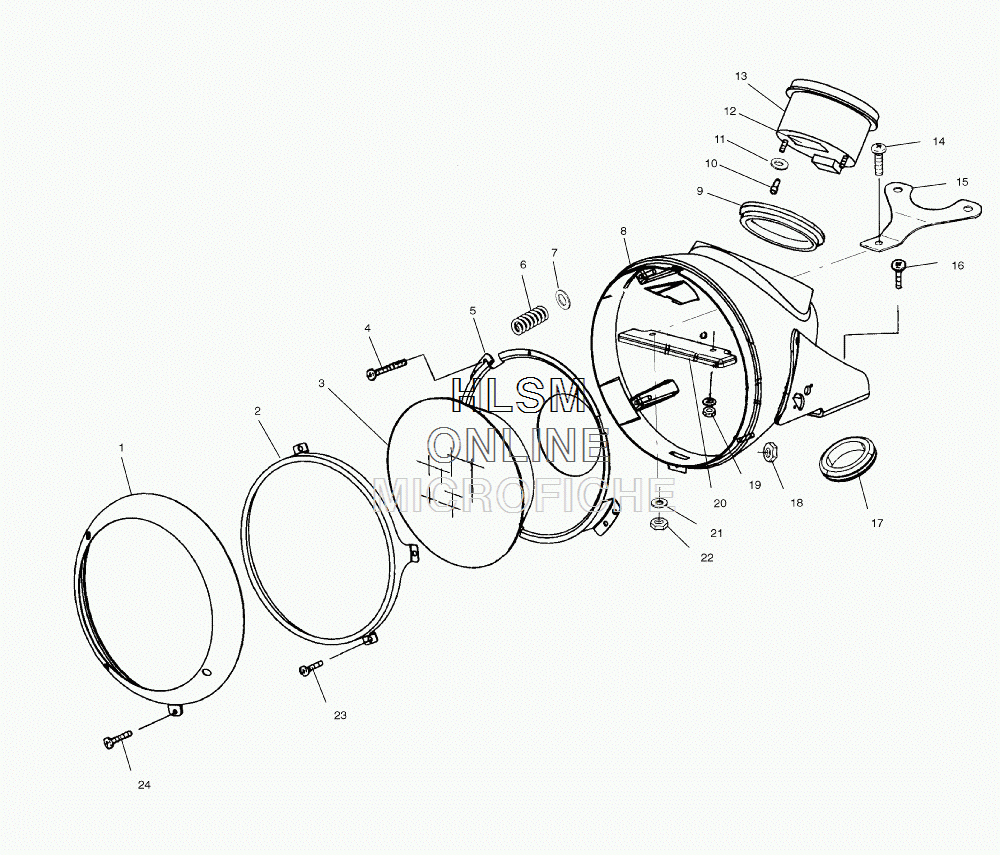

HEADLIGHT для Polaris SPORT CRUISER (CANADA) [V00CS15CC] - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1080019 BEZEL,HEADLAMP
    BEZEL,HEADLAMP
  • 2
    5241850 RING,H/L.RETAINING
    RING,H/L.RETAINING
  • 3
    4010160 HEADLIGHT,SEALEDBEAM,7 1/4'
    HEADLIGHT,SEALEDBEAM,7 1/4'
  • 4
    7517728 SCREW,SOCHD,M5X30
    SCREW,SOCHD,M5X30
  • 5
    5244505 MNT,HOUSING,INNER,HD.LAMP
    MNT,HOUSING,INNER,HD.LAMP
  • 6
    7041871 SPRING-ADJUSTER HEADLIGHT
    SPRING-ADJUSTER HEADLIGHT
  • 7
    7556093 WASHER
    WASHER
  • 8
    1013041 HEADLIGHT HOUSING,SC ASM. (INCL. 18)
    HEADLIGHT HOUSING,SC ASM. (INCL. 18)
  • 9
    5811529 GASKET,SPEEDO
    GASKET,SPEEDO
  • 10
    2410102 LAMP INDICATOR,SPEEDO
    LAMP INDICATOR,SPEEDO
  • 11
    7556064 WASHER
    WASHER
  • 12
    5432695 COVER,SPEEDOMETER
    COVER,SPEEDOMETER
  • 13
    3280261 GAUGE,SPEED/TACH,SPORT S
    GAUGE,SPEED/TACH,SPORT S
  • 14
    7517494 SCREW
    SCREW
  • 15
    5243286 BRKT,HEADLIGHT STIFFENING
    BRKT,HEADLIGHT STIFFENING
  • 16
    7517523 SCR-SOCHD,M8X16,0600084
    SCR-SOCHD,M8X16,0600084
  • 17
    5411350 GROMMET,H/L HSG/WIRE
    GROMMET,H/L HSG/WIRE
  • 18
    7547126 NUT
    NUT
  • 19
    7546704 NUT, NYLOCK, SS.
    NUT, NYLOCK, SS.
  • 20
    5211872-067 RETAINER,SPEEDO, BLACK.
    RETAINER,SPEEDO, BLACK.
  • 21
    7556088 WASHER
    WASHER
  • 22
    7547120 NUT
    NUT
  • 23
    7517681 SCREW
    SCREW
  • 24
    7517368 SCREW,SS.
    SCREW,SS.
