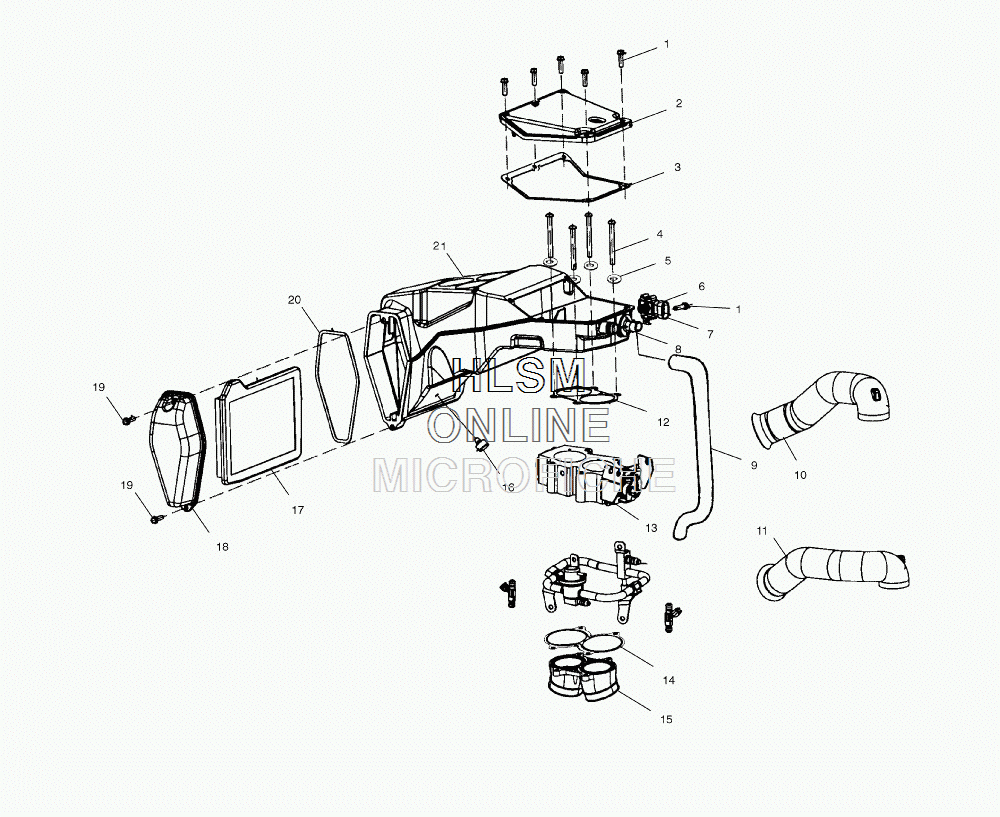

AIR BOX для Polaris SPORT CRUISER (49 STATE) [V00CS15DC] - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7517690 SCREW
    SCREW
  • 2
    5433466 COVER, AIRBOX
    COVER, AIRBOX
  • 3
    5811867 SEAL, AIRBOX COVER
    SEAL, AIRBOX COVER
  • 4
    7517726 SCREW, BUTTON HEAD
    SCREW, BUTTON HEAD
  • 5
    7556121 WASHER, FLAT
    WASHER, FLAT
  • 7
    5211907 BRACKET, MAP SENSOR
    BRACKET, MAP SENSOR
  • 9
    5811871 HOSE-BREATHER
    HOSE-BREATHER
  • 10
    5433471 TUBE,INTAKE,AIRBOX, RIGHT HAND
    TUBE,INTAKE,AIRBOX, RIGHT HAND
  • 11
    5433470 TUBE,INTAKE,AIRBOX LEFT HAND
    TUBE,INTAKE,AIRBOX LEFT HAND
  • 12
    5811908 GASKET-AIRBOX
    GASKET-AIRBOX
  • 14
    5811868 SEAL,THROTTLE BODY/ADAPTER
    SEAL,THROTTLE BODY/ADAPTER
  • 15
    1253173 ADAPTER,THROTTLE BODY
    ADAPTER,THROTTLE BODY
  • 16
    5811869 BUMPER-RUBBER,HI-TEMP
    BUMPER-RUBBER,HI-TEMP
  • 17
    7080858 FILTER-AIR,FLAT
    FILTER-AIR,FLAT
  • 18
    5433469 COVER-AIR FILTER ACCESS
    COVER-AIR FILTER ACCESS
  • 19
    7517816 SCREW
    SCREW
  • 20
    5811866 SEAL,FILTER ACCESS HATCH
    SEAL,FILTER ACCESS HATCH
  • 21
    1013056 AIRBOX ASM. V92
    AIRBOX ASM. V92
