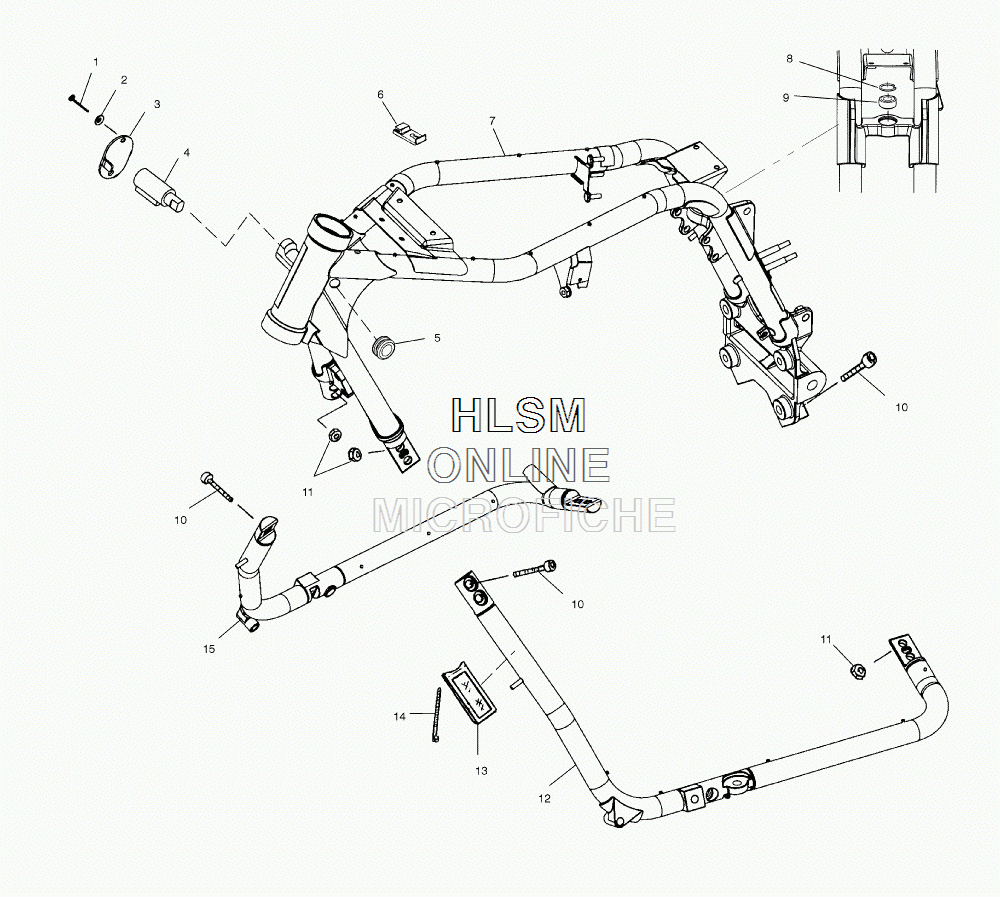

MAIN FRAME для Polaris STANDARD CRUISER (CALIFORNIA) [V99CB15LAZ] - 1999 года выпуска

  • №
    Артикул
    Название
  • 1
    7661027 PIN,KNURLED,SS.
    PIN,KNURLED,SS.
  • 2
    7571637 WASHER,WAVE,SS
    WASHER,WAVE,SS
  • 3
    5242202 CAP,FORK LOCK
    CAP,FORK LOCK
  • 4
    7010085 LOCK,FR.FORK S
    LOCK,FR.FORK S
  • 5
    5411472 GROMMET,HEAD CASTING
    GROMMET,HEAD CASTING
  • 6
    5433193 CLIP,POST,FRAME
    CLIP,POST,FRAME
  • 7
    1080005-067 FRAME,MAIN, BLACK
    FRAME,MAIN, BLACK
  • 8
    7710446 RING,SNAP,(FOX SP)
    RING,SNAP,(FOX SP)
  • 9
    3513506 BEARING,SPHERICAL
    BEARING,SPHERICAL
  • 10
    7517358 SCREW
    SCREW
  • 11
    7547039 NUT
    NUT
  • 12
    1080008-067 TUBE, LEFT HAND,L0W.FR,CRADLE, BLACK
    TUBE, LEFT HAND,L0W.FR,CRADLE, BLACK
  • 13
    2670188 REFLECTOR ASM,FRONT
    REFLECTOR ASM,FRONT
  • 14
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 15
    1080009-067 TUBE, RIGHT HAND,LOW.FR,CRADLE, BLACK.
    TUBE, RIGHT HAND,LOW.FR,CRADLE, BLACK.
