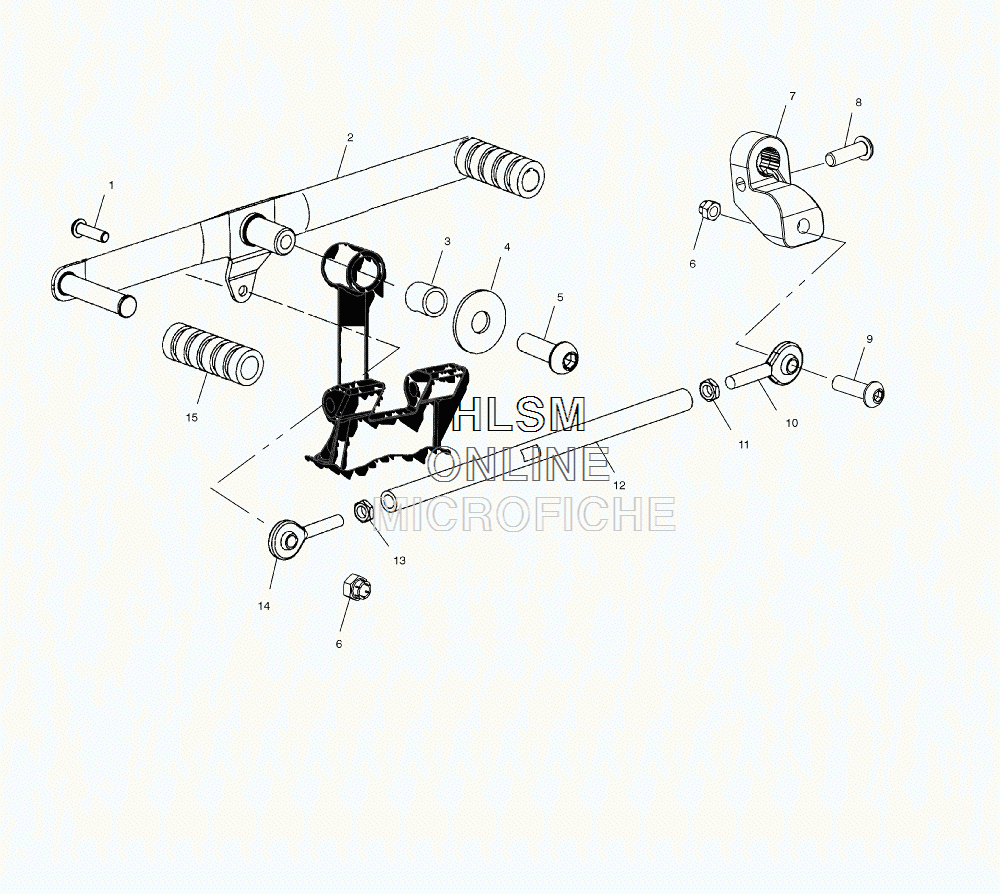

SHIFT LEVER для Polaris STANDARD CRUISER (49 STATE) [V99CB15DAZ] - 1999 года выпуска`
-
№АртикулНазвание
-
17517391 SCREW,SCREW,
-
21012977 PEDAL,SHIFTERPEDAL,SHIFTER
-
33514335 BEARING-SHIFT PEDALBEARING-SHIFT PEDAL
-
47556045 WASHER,WASHER,
-
57517484 SCREWSCREW
-
67547041 NUT SNUT S
-
75132151 LEVER-SHIFT,REARLEVER-SHIFT,REAR
-
87517506 SCREW,SOCHD,M6X20SCREW,SOCHD,M6X20
-
97517355 SCREWSCREW
-
107061017 ROD END, RIGHT HAND,MALE,M6X1.0ROD END, RIGHT HAND,MALE,M6X1.0
-
117547062 NUT,HEXHD,M6NUT,HEXHD,M6
-
125020922 ROD,SHIFTERROD,SHIFTER
-
137547081 NUT,HEXHD,M6NUT,HEXHD,M6
-
147061020 ROD END, LEFT HAND,MALEROD END, LEFT HAND,MALE
-
155411364 PAD,SHIFT PEDALPAD,SHIFT PEDAL
