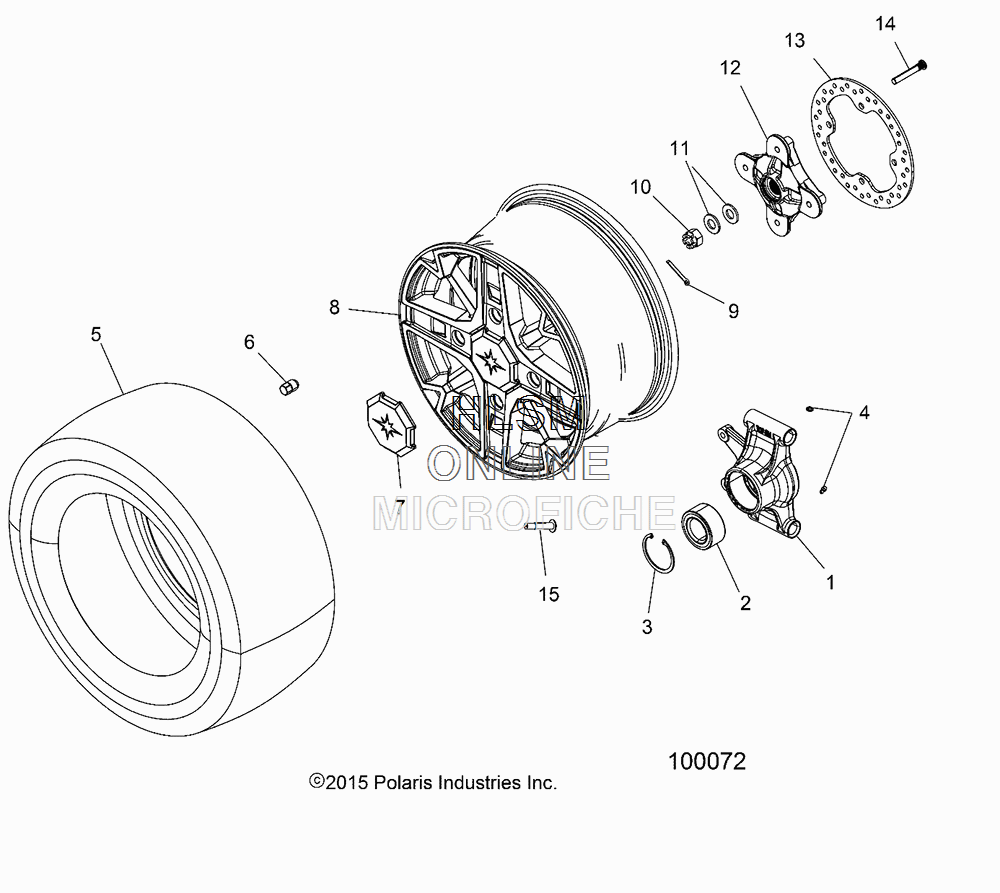

WHEEL - REAR W/ HUB для Polaris SPORTSMAN 850 TOURING SP (RADAR BLUE) [A18SYE85BB] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5136689 CARRIER, BEARING, LEFT HAND
    CARRIER, BEARING, LEFT HAND
  • 1
    5136690 CARRIER, BEARING, RIGHT HAND
    CARRIER, BEARING, RIGHT HAND
  • 2
    3514699 BEARING, BALL, SEALED
    BEARING, BALL, SEALED
  • 3
    7710440 RING, RETAINING
    RING, RETAINING
  • 4
    7080424 FITTING, LUBRICATING
    FITTING, LUBRICATING
  • 5
    5415601 TIRE-26X10-14,WILD THANG
    TIRE-26X10-14,WILD THANG
  • 6
    7547361 NUT, WHEEL, REAR
    NUT, WHEEL, REAR
  • 7
    1521999-458 CAP-RIM, MATTE BLACK
    CAP-RIM, MATTE BLACK
  • 8
    1522530-458 RIM-RR,CST,NO MACH,14X7.5-57.4 [INCL. 7]
    RIM-RR,CST,NO MACH,14X7.5-57.4 [INCL. 7]
  • 9
    7661404 PIN, COTTER
    PIN, COTTER
  • 10
    7547406 NUT, CASTLE
    NUT, CASTLE
  • 11
    7555796 WASHER, CONE
    WASHER, CONE
  • 12
    5136946 HUB, WHEEL
    HUB, WHEEL
  • 13
    5250205 DISC, BRAKE,246MM OD,4.75
    DISC, BRAKE,246MM OD,4.75
  • 14
    7518671 STUD, WHEEL
    STUD, WHEEL
  • 15
    1525017 VALVE, RIM
    VALVE, RIM
